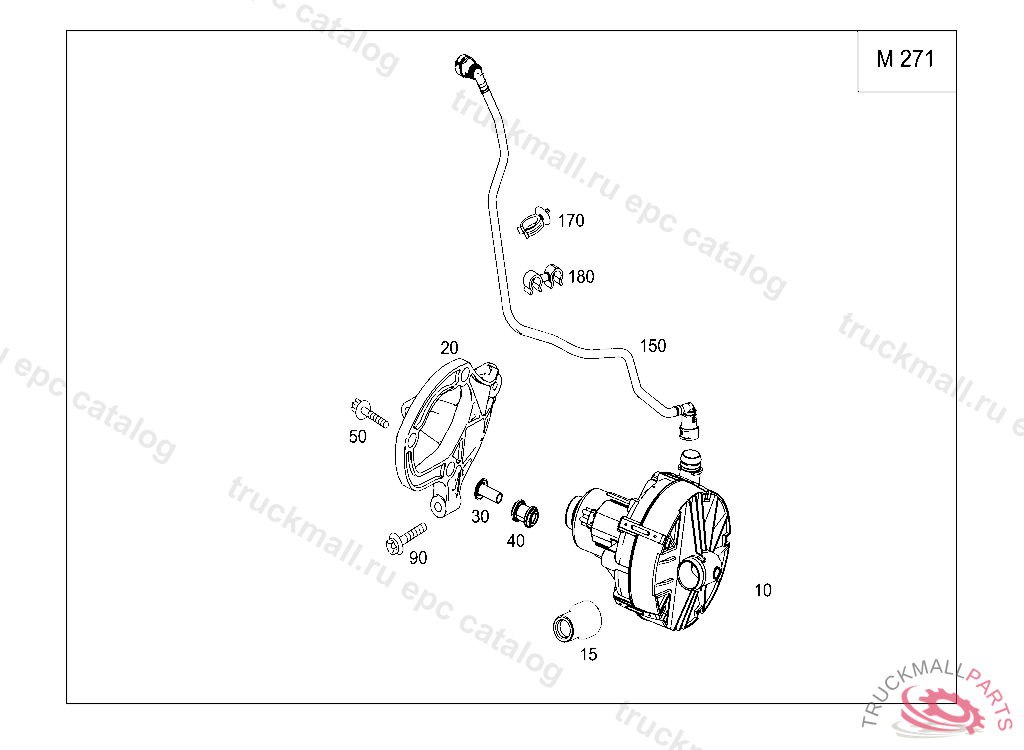

C 200 CGI DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG - 204.048 - 49 EXHAUST SYSTEM
Поз.
Артикул
Описание
10
AIR PUMP
15
MOLDED HOSE
20
BRACKET TO LEFT ENGINE SUPPORT
30
SPACER TUBE AIR PUMP TO BRACKET
40
SHOCK ABSORBER AIR PUMP TO BRACKET
50
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
90
HEXALOBULAR BOLT CLAMP ON BRACKET M8X45
150
PURGE LINE AIR PUMP TO INTAKE MANIFOLD
150
PURGE LINE AIR PUMP TO INTAKE MANIFOLD
170
LINE HOLDER HOSE LINE ATTACHMENT
180
LINE HOLDER FOR PURGE LINE
