Mercedes N304017008034 - Болт крепления

C 250 CDI 4MATIC DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG 204.082

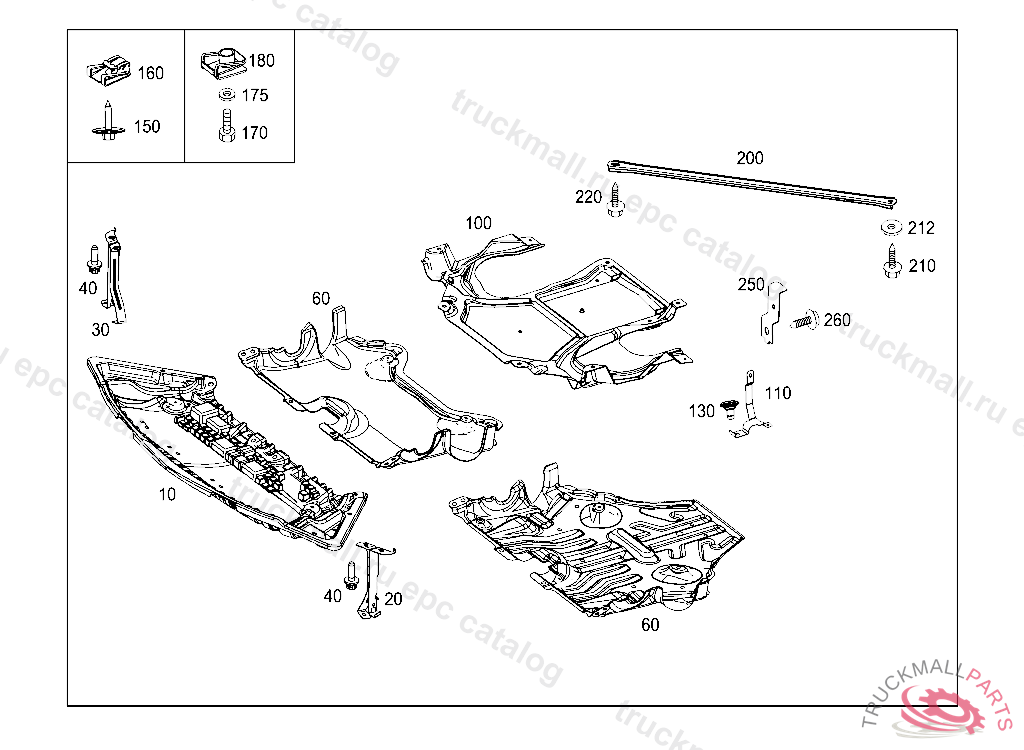

52 CHASSIS SHEET METAL / AIR INTAKE - 030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Поз.
Артикул
Описание
20
A2045241340
BRACKET LEFT
30
A2045241440
BRACKET RIGHT
40
N910143006002
HEXALOBULAR BOLT. SCREW
110
A2045241540
BRACKET RIGHT, A 14470920080301 L 00724320080228 V 00044520080228 F 13861520080302 L 10000020081016
130
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0019949845
LOCK. CLIP-TYPE NUT
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2045240547
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
220
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
