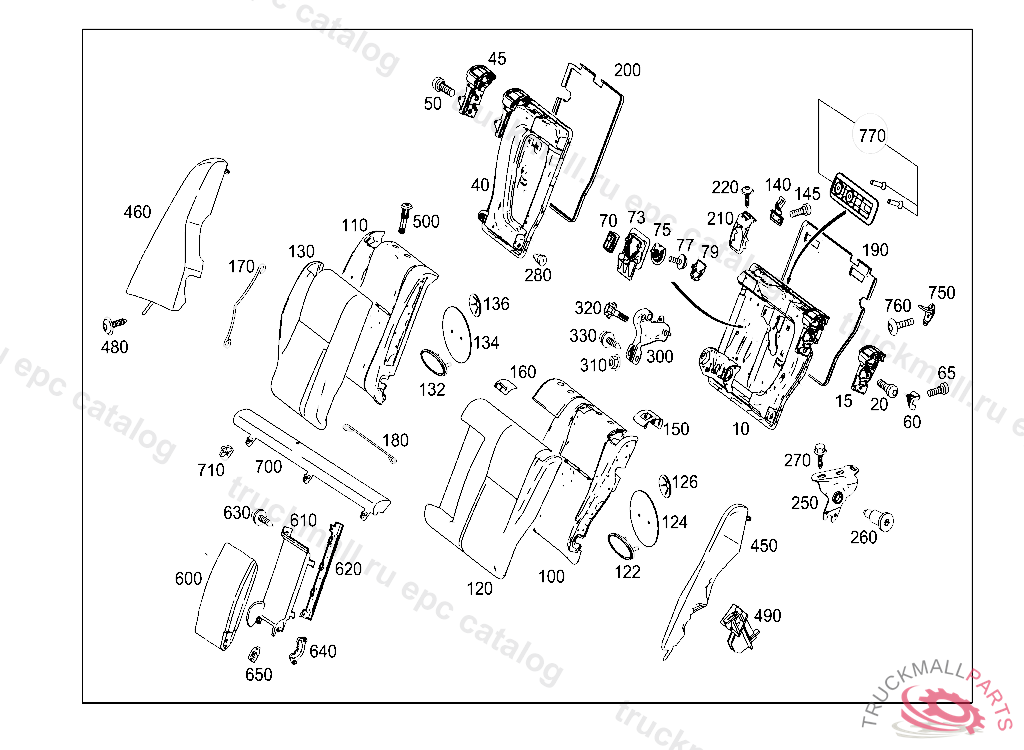

Поз.
Артикул
Описание
10
BACKREST FRAME LEFT
15
UNLOCKING LEFT REAR BACKREST
20
SCREW CLAMP ON BRACKET
40
BACKREST FRAME RIGHT
45
UNLOCKING RIGHT REAR BACKREST
50
SCREW CLAMP ON BRACKET
60
PANELING RIGHT REAR BACKREST
60
PANELING LEFT REAR BACKREST
65
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
70
NUT RETAINER PROTECTIVE PLATE TO EXHAUST MUFFLER
73
COVER
75
BRACKET MAIN FLOOR FRONT
77
BOLT REAR BRACKET MOUNTING M8X22
79
COVER
100
REST LEFT
100
REST LEFT
110
REST RIGHT
110
REST RIGHT
120
BACKREST UPHOLSTERY LEFT
120
BACKREST UPHOLSTERY LEFT
120
BACKREST UPHOLSTERY LEFT
120
COVER REAR SEAT BACKREST LEFT, 9G15 701A QFT204A2016 BLACK
120
COVER REAR SEAT BACKREST LEFT
120
COVER REAR SEAT BACKREST LEFT
120
BACKREST UPHOLSTERY LEFT
120
COVER REAR SEAT BACKREST LEFT, 9D88 131A QFT204A2072 BLACK
120
COVER REAR SEAT BACKREST LEFT
120
COVER REAR SEAT BACKREST LEFT
120
BACKREST UPHOLSTERY LEFT
122
PLATE DESIGNO, 7K71QFT204A2185 CHROME
124
BRACKET
126
LOCK PLATE BRACKET MOUNTING
130
BACKREST UPHOLSTERY RIGHT
130
BACKREST UPHOLSTERY RIGHT
130
BACKREST UPHOLSTERY RIGHT
130
BACKREST UPHOLSTERY RIGHT
130
BACKREST UPHOLSTERY RIGHT
130
COVER REAR SEAT BACKREST RIGHT, 9G15 701A QFT204A2016 BLACK
130
COVER REAR SEAT BACKREST RIGHT
130
BACKREST UPHOLSTERY RIGHT
130
COVER REAR SEAT BACKREST RIGHT
130
COVER REAR SEAT BACKREST RIGHT, 9D88 131A QFT204A2072 BLACK
130
BACKREST UPHOLSTERY RIGHT
132
PLATE DESIGNO, 7K71QFT204A2185 CHROME
134
BRACKET
136
LOCK PLATE BRACKET MOUNTING
140
BRACKET RIGHT CHILD SEAT ATTACHMENT, 9051QFT204A2450 BLACK
145
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
150
COVER BACKREST LOCKING MECHANISM,RIGHT
160
COVER BELT OUTLET
170
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
170
CLAMP LEFT LONGITUDINAL STAPLE 330MM
180
BRACKET SEAT COVER MOUNTING,TRANSVERSE
190
LINING LEFT REAR BACKREST
200
LINING RIGHT REAR BACKREST
210
REINFORCEMENT SEAT BELT GUIDE
220
HEXALOBULAR BOLTM8X16
220
BOLT SAFETY BELT TO SEAT FRAMEWORK 7/16" X 17 MM
250
BEARING OUTSIDE LEFT
250
BEARING OUTSIDE RIGHT
260
PIVOT PIN BEARING TO BACKREST FRAME AT LEFT
270
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
280
PIN TO BACKREST FRAME, LEFT
300
BEARING CENTRAL
310
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
320
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
330
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
450
REAR SEAT BACKREST OUTSIDE LEFT
450
BACKREST OUTSIDE LEFT
450
REAR SEAT BACKREST LEFT OUTSIDE
450
BACKREST OUTSIDE LEFT
460
BACKREST OUTSIDE RIGHT
460
BACKREST OUTSIDE RIGHT
460
REAR SEAT BACKREST OUTSIDE RIGHT
460
REAR SEAT BACKREST OUTSIDE RIGHT
480
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
490
BRACKET REAR BACKREST OUTER LEFT, A 33911520090930 L 03484320090930 V 00176520090930 F 40055120090831 L 10000020090901
490
BRACKET CENTER BACKREST MOUNT, A 33911520090930 L 03484320090930 V 00176520090930 F 40055120090831 R 09490420090818
500
GUIDE WITHOUT RELEASE, LEFT SEAT
500
GUIDE WITH UNLOCKING MECHANISM
600
FOLDING ARMREST
600
FOLDING ARMREST
600
FOLDING ARMREST
600
FOLDING ARMREST
600
FOLDING ARMREST
610
PANELING ARMREST SLOT
620
PANELING ARMREST SLOT
630
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
640
DETENT ARMREST
650
PLATE ARMREST RETAINER
700
PAD
700
PAD
700
UPHOLSTERY
700
PAD
710
BRACKET PADDING AT REAR FLOOR
750
CLAMP RIGHT BACKREST LOCK
760
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
770
RAIL ROLLER BLIND FASTENING TO REAR SEAT, 9051QFT204A2450 BLACK
