C 250 CDI BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG
204.203
88 ATTACHMENT PARTS

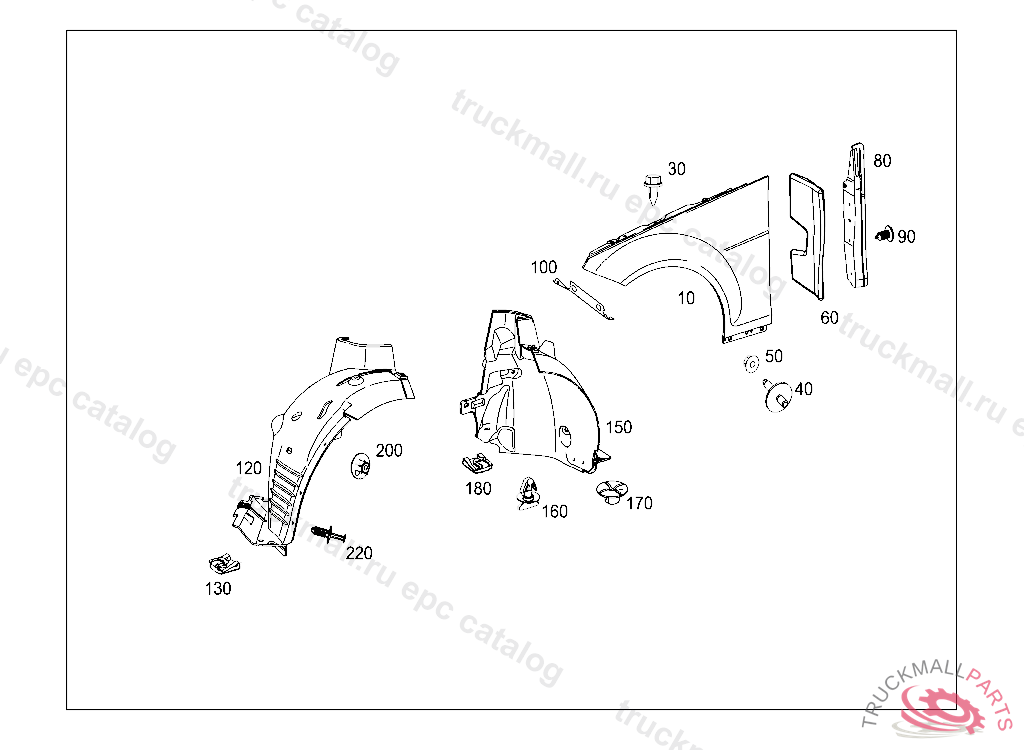

015 FRONT FENDER

C 250 CDI BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG - 204.203 - 88 ATTACHMENT PARTS

Поз.
Артикул
Описание
10
A2048801418
FRONT FENDER RIGHT
10
A2048801318
FRONT FENDER LEFT
10
A2048800218
FRONT FENDER RIGHT, Replaced By: A2048801418
10
A2048800118
FRONT FENDER LEFT, Replaced By: A2048801318
30
A1639900136
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
40
A0019901514
STUD FENDER AT A-PILLAR, BOTTOM, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019909614
50
A4149900051
NUT FENDER ON SIDE PANEL M6
60
A2048853137
ABSORBER TO FENDER LEFT
60
A2048853237
ABSORBER TO FENDER RIGHT
80
A2048890125
COVER LEFT
80
A2048890225
COVER RIGHT
90
A0029973386
STOP PLUG BRAKE CABLE
100
A2048890295
INTERMEDIATE LAYER BETWEEN FENDER, RIGHT ANDBUMPER
100
A2048890195
INTERMEDIATE LAYER BETWEEN FENDER, LEFT ANDBUMPER
120
A2046900230
COVER RIGHT FRONT FENDER, Replaced By: A2046905630
120
A2046900130
COVER LEFT FRONT FENDER, Replaced By: A2046905730
120
A2046905730
COVER LEFT FRONT FENDER
120
A2046906030
WHEEL HOUSE COVERING LEFT FRONT FENDER
120
A2046905930
WHEEL HOUSE COVERING RIGHT FRONT FENDER
120
A2046905630
COVER RIGHT FRONT FENDER
130
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
150
A2046905030
COVER RIGHT FRONT FENDER
150
A2046904830
COVER RIGHT FRONT FENDER
150
A2046902730
COVER LEFT FRONT FENDER, Replaced By: A2046904730
150
A2046904730
COVER LEFT FRONT FENDER
160
A0029880542
CATCH COVERING TO COVERING
170
A0009903162
NUT FILLER PIPE TO FRAME
180
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
200
A2019900050
PLASTIC NUT. NUT
220
A1249900492
RIVET COVERING TO SIDE MEMBER
