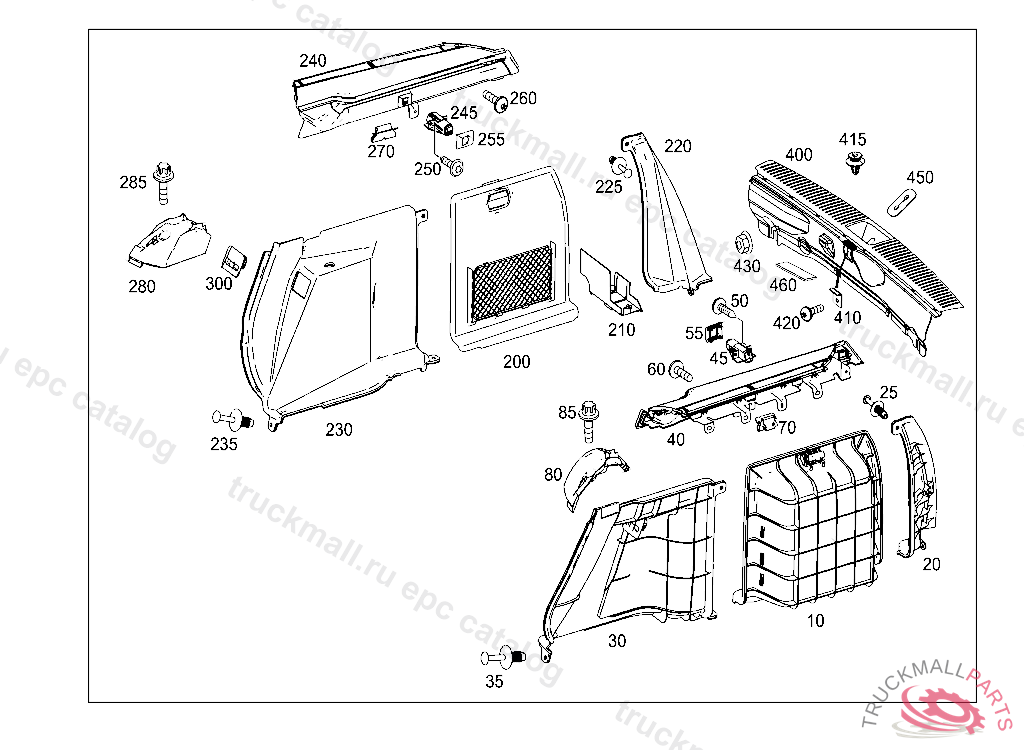

Поз.
Артикул
Описание
10
TRIM PANEL LOADING SPACE LEFT REAR LOADING COMPARTMENT FLAP
10
TRIM PANEL LOADING SPACE LEFT REAR LOADING COMPARTMENT FLAP
10
LINING WHEEL INSTALLATION LEFT REAR LOADING COMPARTMENT FLAP
10
TRIM PANEL LOADING SPACE LEFT REAR LOADING COMPARTMENT FLAP
20
D-PILLAR TRIM D-PILLAR, BOTTOM LEFT
25
RIVET SEALING LIP TO RADIATOR
30
LINING WHEEL INSTALLATION FRONT LEFT
35
RIVET SEALING LIP TO RADIATOR
40
PANELING LOADING COMPARTMENT,LEFT
45
HOOK IN RIGHT PANELING, 9051QFT204A0047 BLACK, Replaced By: A2128100340
45
COAT HOOK IN LEFT PANELING, 9051QFT204A0047 BLACK
50
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
55
ESCUTCHEON ON TRIM,LEFT, 9051QFT204A0130 BLACK
60
SCREW LEVER TO ENGINE CONTROL SHAFT
70
CLIP PANELLING TO BODY
80
COVER BELT GUIDE LEFT
85
HEXALOBULAR BOLT. SCREW
200
TRIM PANEL LOADING SPACE RIGHT REAR LOADING COMPARTMENT FLAP
210
BRACKET FIRST AID KIT
220
D-PILLAR TRIM D-PILLAR, BOTTOM RIGHT
225
RIVET SEALING LIP TO RADIATOR
230
LINING WHEEL INSTALLATION FRONT RIGHT
235
RIVET SEALING LIP TO RADIATOR
240
PANELING LOADING COMPARTMENT,RIGHT
245
COAT HOOK IN LEFT PANELING, 9051QFT204A0047 BLACK
245
HOOK IN RIGHT PANELING, 9051QFT204A0047 BLACK, Replaced By: A2128100340
250
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
255
ESCUTCHEON ON TRIM,LEFT, 9051QFT204A0130 BLACK
260
SCREW LEVER TO ENGINE CONTROL SHAFT
270
CLIP PANELLING TO BODY
280
COVER BELT GUIDE RIGHT
285
HEXALOBULAR BOLT. SCREW
300
COVER STRIKER, LEFT AND RIGHT REAR BACKREST, 9051QFT204A0130 BLACK
400
ORNAMENTAL COVER LOADING EDGE, 9051QFT204A0220 BLACK, Replaced By: A2046906541
400
LINING LOADING SILL LOADING EDGE, 9051QFT204A0220 BLACK
410
BRACKET ORNAMENTAL COVER
415
CLIP
420
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
430
PLASTIC NUT. NUT
450
COVER LOCKING EYE, 9051QFT246A0665 BLACK
460
INSULATION CABLE HARNESS MOUNTING
