C 180 CGI BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG
204.249

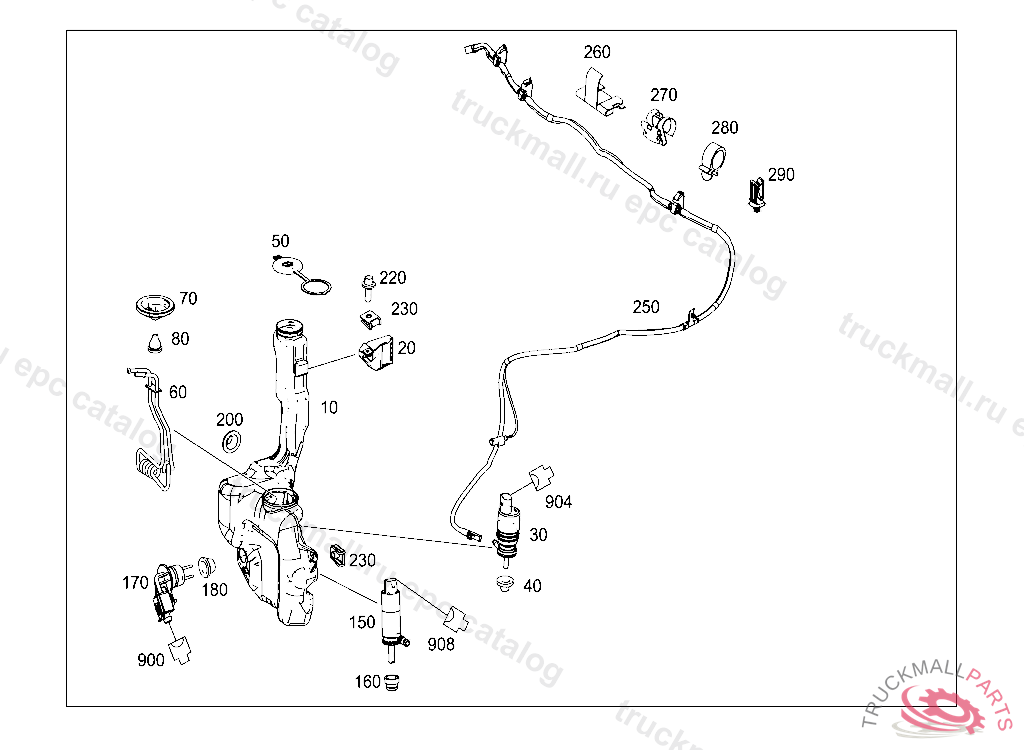

86 WASHER SYSTEM
030 PANE WASHER,HEADLAMP WIPER/WASHER IL. 1

C 180 CGI BlueEFFICIENCY DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG - 204.249 - 86 WASHER SYSTEM

Поз.
Артикул
Описание
10
A2048691220
FLUID CONTAINER
10
A2048691120
FLUID CONTAINER
10
A2048691420
FLUID CONTAINER
10
A2048691320
FLUID CONTAINER
10
A2048690120
DASHPOT , Replaced By: A2048691220
10
A2048690420
DASHPOT , Replaced By: A2048691420
10
A2048690520
DASHPOT
10
A2048690720
DASHPOT , Replaced By: A2048691320
20
A2048690014
BRACKET FOR RESERVOIR TO BODYSHELL
30
A2048660221
PUMP PANE WASHER SYSTEM
40
A0009989001
GROMMET BETWEEN RESERVOIR AND PUMP
50
A1718690108
COVER
60
A2048300361
HEAT EXCHANGER
70
A2038690208
COVER LIQUID TANK
80
A0109971381
GROMMET
150
A2108691221
CENTRIFUGAL PUMP HEADLAMP CLEANING SYSTEM
160
A0109971181
GROMMET FROM PUMP INTO RESERVOIR
170
A2218209110
SWITCH FOR WASHING WATER STATUS
180
A2038690098
SEAL FILLER PIPE
200
A2038690198
SEAL BETWEEN RESERVOIR AND BODY
220
N910105006023
SCREW LEVER TO ENGINE CONTROL SHAFT
230
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
250
A2048600192
HOSE LINE WITH NOZZLES
250
A2048601892
HOSE LINE WITH NOZZLES
250
A2048601692
HOSE LINE WITH NOZZLES
250
A2048601792
HOSE LINE WITH NOZZLES, F 50004620100331
260
A0089886978
CLIP FOR HOSE TO COVER
270
A0119889278
MOUNTING CLAMP HOUSING, A 42814020020812 E 02000020070101
280
A0019951744
CLAMP20 MM
290
A0009957877
LINE HOLDER FOR HOSE TO BODY
900
A1685452928
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
904
A0165454626
PIN BUSHING HOUSING INDICATOR SWITCH,POWER TAKE-OFF S23.2/.3, 2 PIN
908
A0185450026
PIN BUSHING HOUSING. PLUG SOCKET SOLENOID VALVE,POWER TAKE-OFF Y46.2/.3 2PIN
