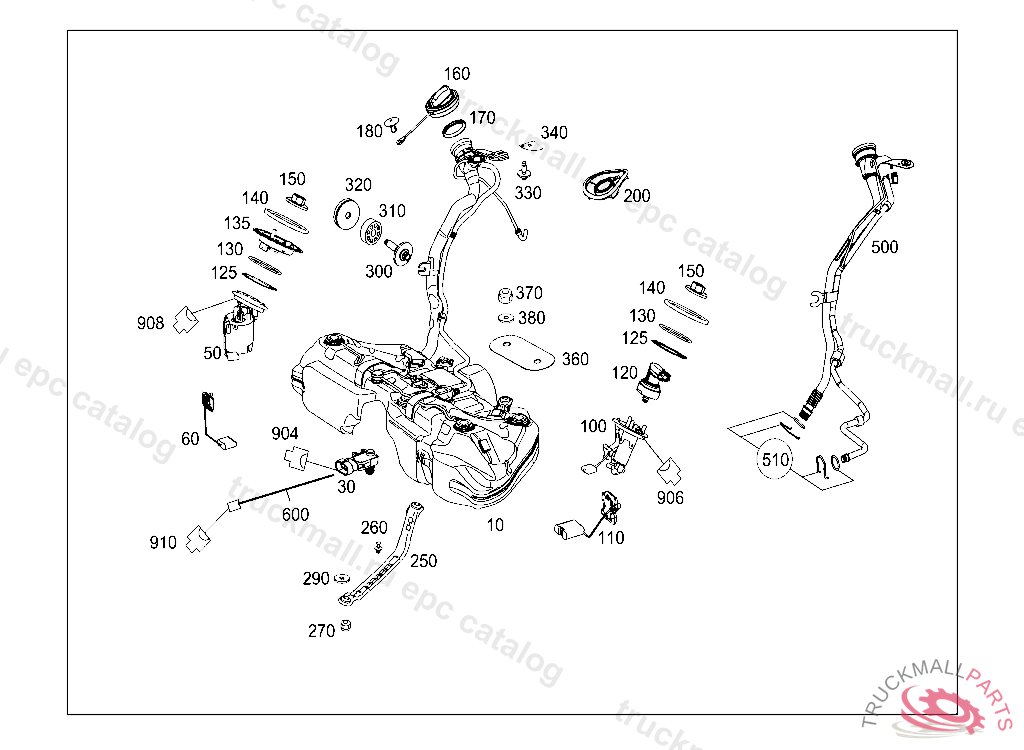

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
50
DELIVERY UNIT IN TANK AT RIGHT WITH FUEL LINES
50
FUEL DELIVERY MODULE IN TANK AT RIGHT WITH FUEL LINES
50
FUEL DELIVERY MODULE IN TANK AT RIGHT WITH FUEL LINES
60
SENDER UNIT
100
FUEL PUMP IN TANK AT LEFT WITHOUT FUEL LINES
110
SENDER UNIT
110
FILL-LEVEL SENSOR , OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AP47.00-P-4750-TZV#
130
O-RING PUMP TO RESERVOIR 135.5X6
130
O-RING PUMP TO RESERVOIR
140
COVER RING. FASTENER SUPPLY UNIT AT TANK, Replaced By: A0014711430
140
BAYONET TYPE CAP SUPPLY UNIT AT TANK
160
FILLER CAP TANK FILLER NECK, E 02999920061231 A 97499920070630 F 95500020070630 R 26800020070630
160
FILLER CAP , Replaced By: A2214700905, +001A0019902392
160
FUEL FILLER CAP , ORDER FOR RED TANK LOCK WITH INDEX 28
160
FILLER CAP
160
FILLER CAP
170
SEAL RING FILLER CAP
170
SEAL RING FILLER CAP TO FILLER NECK
180
EXPANSION RIVET. RIVET
200
GROMMET SEAL FILLER NECK
250
TENSIONING STRAP TANK TO BODYSHELL
250
TENSIONING STRAP TANK TO BODYSHELL
260
EXPANSION RIVET
270
COMBINATION NUT TANK TO BODYSHELL M8
290
SEAL WASHER BETWEEN TENSIONING STRAP AND BODY
300
BOLT TANK TO BODY, CENTER M8X35
310
WASHER FILLER NECK TO BODY, BOTTOM
330
EXTERNAL HEXAL. HD. BOLT FILLER NECK TO BODY, TOP
340
GASKET BETWEEN TANK LOCKING BASE AND VEHICLE SHELL
360
MOUNTING PLATE BETWEEN FUEL TANK AND CHASSIS
370
COMBINATION NUT TANK TO BODYSHELL M8
510
MOUNTING BOW TANK FILLER NECK AT FUEL TANK, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AP47.00-P-4750-TZV#
904
PIN BUSHING HOUSING 3-POLE
906
COUPLING HOUSING FUEL LEVEL SENSOR 3-PIN MLK1.2,X36/3
908
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
910
PLUG THREE PIN, PLUG CONNECTOR SUN SENSOR 3-PIN MQS
