Поз.
Артикул
Описание

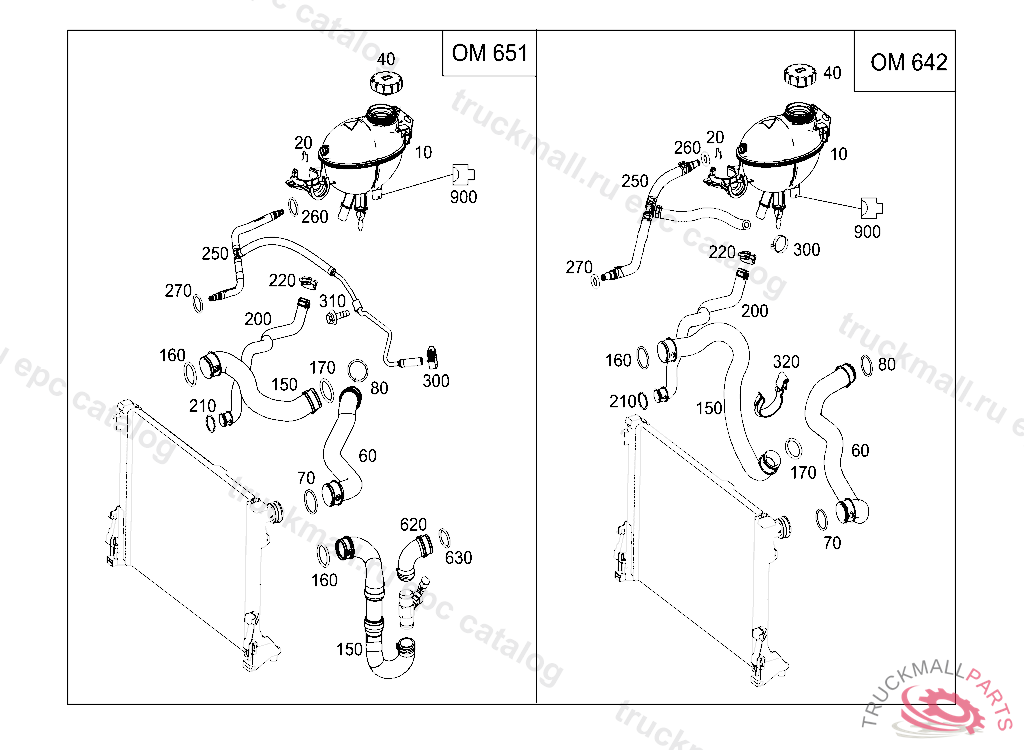

10
COMPENSATING TANK , Replaced By: A2045000749
10
EXPANSION RESERVOIR
20
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
40
RADIATOR CAP COOLING WATER EXPANSION TANK
40
CLOSING COVER
60
HOSE LEFT AT RADIATOR
70
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
70
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
80
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
150
COOLANT HOSE RIGHT AT RADIATOR
150
COOLANT HOSE RIGHT AT RADIATOR
160
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
160
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
170
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
200
COOLANT FILLING HOSE TO RIGHT RADIATOR
200
COOLANT FILLING HOSE TO RIGHT RADIATOR
210
SEALING RING FILLING HOSE TO RADIATOR 21,35MM
220
CLAMP25 MM
250
VENT LINE , A 20130731 G 20130731
250
VENTILATION LINE , G 20120902
250
VENT LINE , G 20130731
250
VENT LINE , G 20120902 G 20130731
260
O-RING VENT LINE TO RADIATOR 6,07MMX 1,78 MM
270
O-RING VENT LINE TO RADIATOR 6,07MMX 1,78 MM
300
HOSE CLAMP8-16
310
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
310
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
620
COOLANT HOSE PREHEATER TO ENGINE
630
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
900
CLUTCH DOOR LOCK, FRONT 4-PIN MLK1.2,A85, A85/1
