Mercedes A2045242340 - ДЕРЖАТЕЛЬ

GLK 250 BLUETEC 4MATIC 204.904

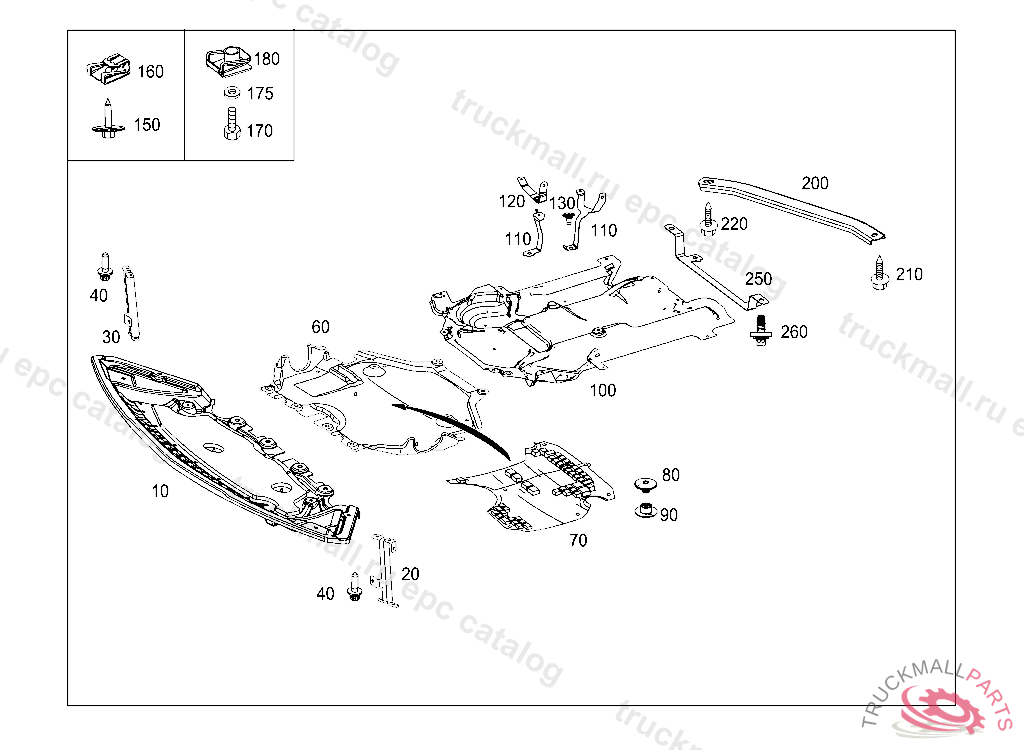

52 CHASSIS SHEET METAL / AIR INTAKE - 045 ANTINOISE CAPSULE, DIESEL VEHICLES

Поз.
Артикул
Описание
10
A2045202123
ANTINOISE CAPSULE FRONT
10
A2045201523
ANTINOISE CAPSULE FRONT
20
A2045240940
BRACKET LEFT
30
A2045241040
BRACKET RIGHT
40
N910143006002
HEXALOBULAR BOLT. SCREW
60
A2125201223
ANTINOISE CAPSULE CENTRAL, A 20131220
60
A2125240301
UNDERBODY GUARD CENTRAL
60
A2125202623
ENCAPSULATION CENTRAL
70
A2125241185
DAMPING MAT FOR PROTECTIVE SHIELD
80
A2019880481
FASTENER BUTTON UPPER PART
90
A2019880381
FASTENER BUTTON LOWER PART
100
A2045202023
ANTINOISE CAPSULE REAR
100
A2045203823
ENCAPSULATION REAR
110
A2045242340
BRACKET RIGHT BOTTOM
110
A2045240640
BRACKET RIGHT
120
A2045242240
BRACKET RIGHT TOP
130
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0019949845
LOCK. CLIP-TYPE NUT
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2045240747
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
220
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
