Поз.
Артикул
Описание

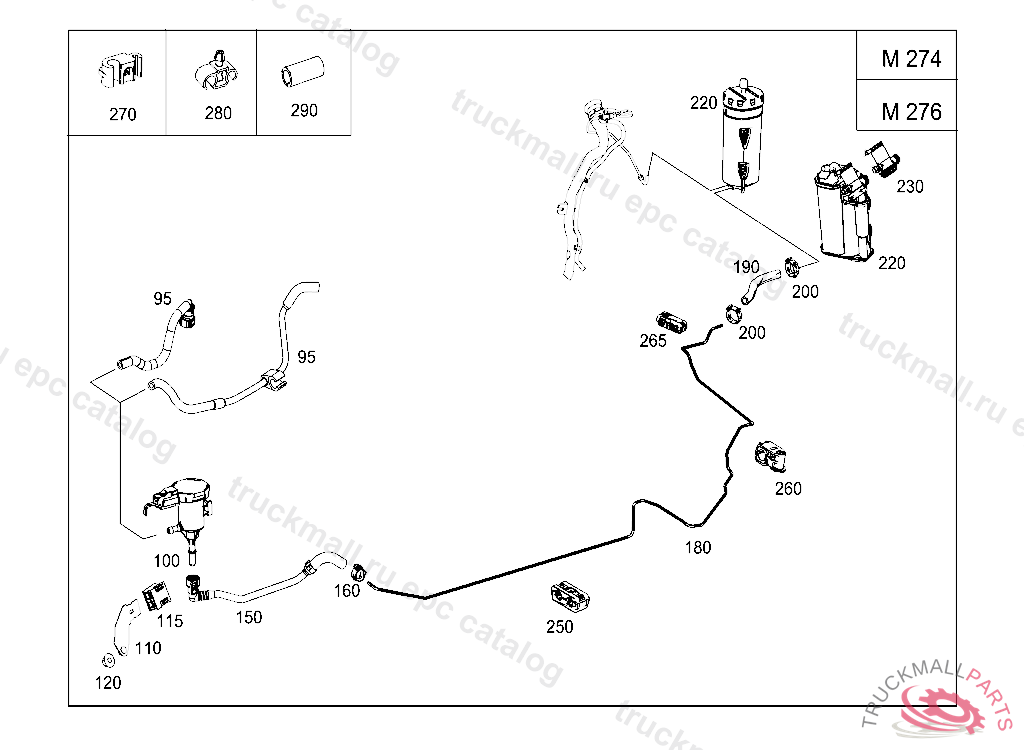

95
PURGE LINE ENGINE TO REGENERATION VALVE
100
PURGE VALVE
110
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
115
BRACKET PURGE VALVE AT BRACKET
120
NUT , Replaced By: N913023006001
150
PURGE LINE PURGE VALVE TO PURGE LINE
160
HOSE CLAMP FUEL LINE TO FUEL FILTER
180
PURGE LINE , L 03887520100331 V 00243120100331 F 50193220100411 L 10000020101025
180
PURGE LINE , L 20120901
190
HOSE PURGE LINE TO ACTIVATED CHARCOALFILTER
190
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
200
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
220
ACTIVATED CHARCOAL FILTER
220
ACTIVATED CHARCOAL FILTER
230
VALVE SHUTOFF VALVE ACTIVATED-CARBON FILTER, A 12562420080115 F 14570720080115 R 01906320080115
260
LINE HOLDER FUEL LINE MOUNTING
265
LINE HOLDER FUEL LINE TO SIDE MEMBER
270
LINE HOLDER FUEL LINE MOUNTING
280
BRACKET FUEL LINE MOUNTING
290
HOSE FROM FEED LINE TO FILTER 240 MM
