Поз.
Артикул
Описание

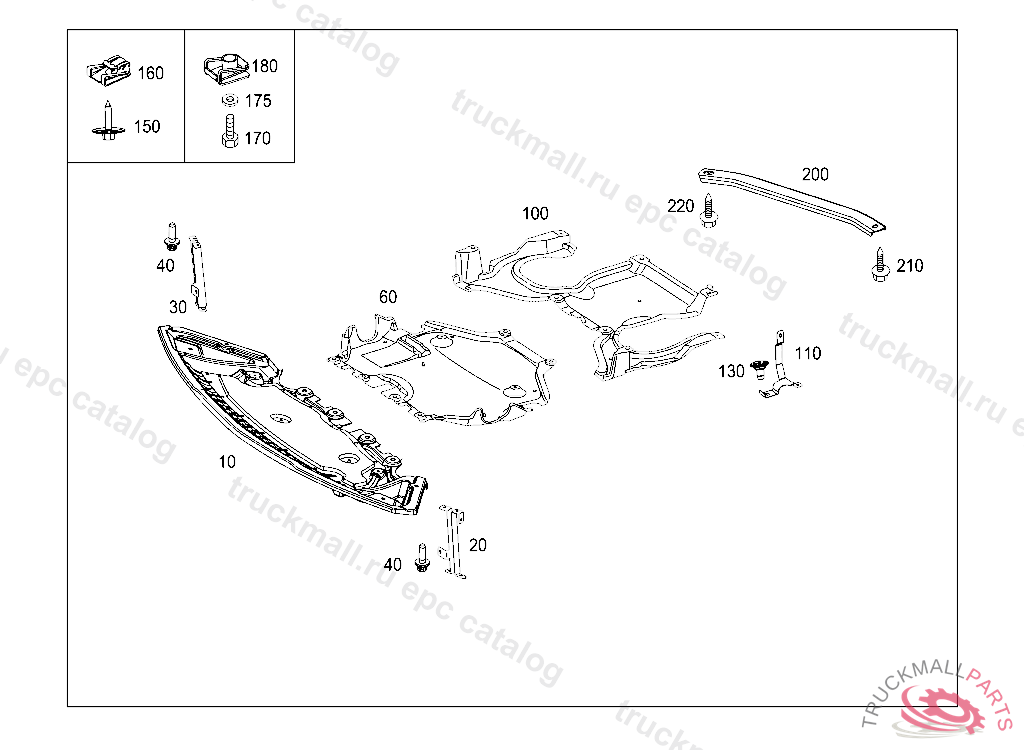

10
ANTINOISE CAPSULE FRONT
10
ANTINOISE CAPSULE FRONT
20
BRACKET LEFT
30
BRACKET RIGHT
40
HEXALOBULAR BOLT. SCREW
60
ENCAPSULATION CENTRAL
60
COVER F ENGINE COMP. BM ANTINOISE CAPSULE, A 20131220
60
UNDERBODY GUARD CENTRAL
100
COVER F ENGINE COMP. BM REAR
100
COVER F ENGINE COMP. BM REAR, Replaced By: A2045243430
110
BRACKET RIGHT
110
BRACKET LEFT, A 20120112 L 05596820111231 V 00423020111231 F 84733520120119 L 16781920120504
110
BRACKET LEFT, L 05596920111231 V 00423120111231 F 84733620120119 L 20120504
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
150
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
160
LOCK. CLIP-TYPE NUT
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
180
SPRING-THREAD NUT PROTECTIVE PLATE
200
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
220
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
