Поз.
Артикул
Описание

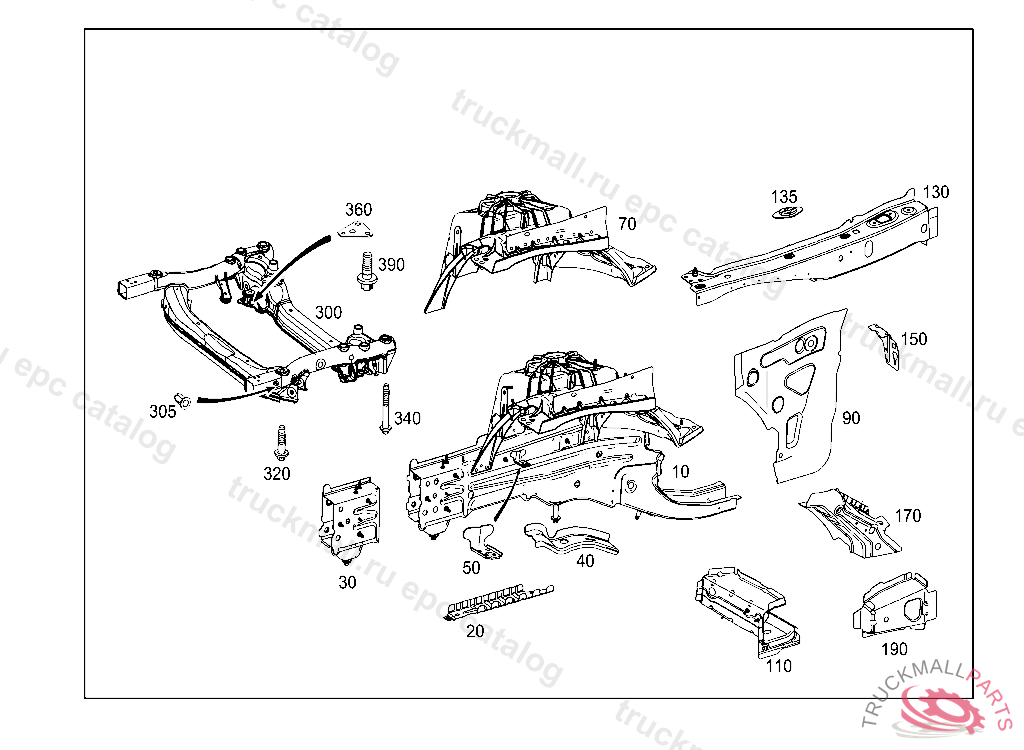

10
LONGITUDINAL MEMBER RIGHT
10
LONGITUDINAL MEMBER LEFT
20
REINFORCEMENT LEFT
20
REINFORCEMENT RIGHT
30
LONGITUDINAL MEMBER LEFT
30
LONGITUDINAL MEMBER RIGHT
40
REINFORCEMENT RIGHT
40
REINFORCEMENT LEFT
50
BRACKET LEFT BRAKE HOSE
70
SUSPENSION STRUT DOME LEFT
70
SUSPENSION STRUT DOME RIGHT
90
LONGITUDINAL MEMBER LEFT
90
LONGITUDINAL MEMBER RIGHT
110
CONNECTING CARRIER LEFT
110
CROSS MEMBER RIGHT
130
LONGITUDINAL MEMBER TOP RIGHT
130
LONGITUDINAL MEMBER TOP LEFT
135
PLATE ON CARRIER AT TOP LEFT
150
BRACKET RIGHT REAR FENDER
150
BRACKET LEFT REAR FENDER
170
STRUT LEFT
170
STRUT RIGHT
190
REINFORCEMENT LEFT
190
REINFORCEMENT RIGHT
300
INTEGRAL CARRIER
305
BLIND CLINCH NUT IN FRAME-TYPE INTEGRAL SUPPORT M10
320
BOLT FRONT FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX50
340
BOLT REAR FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX100
