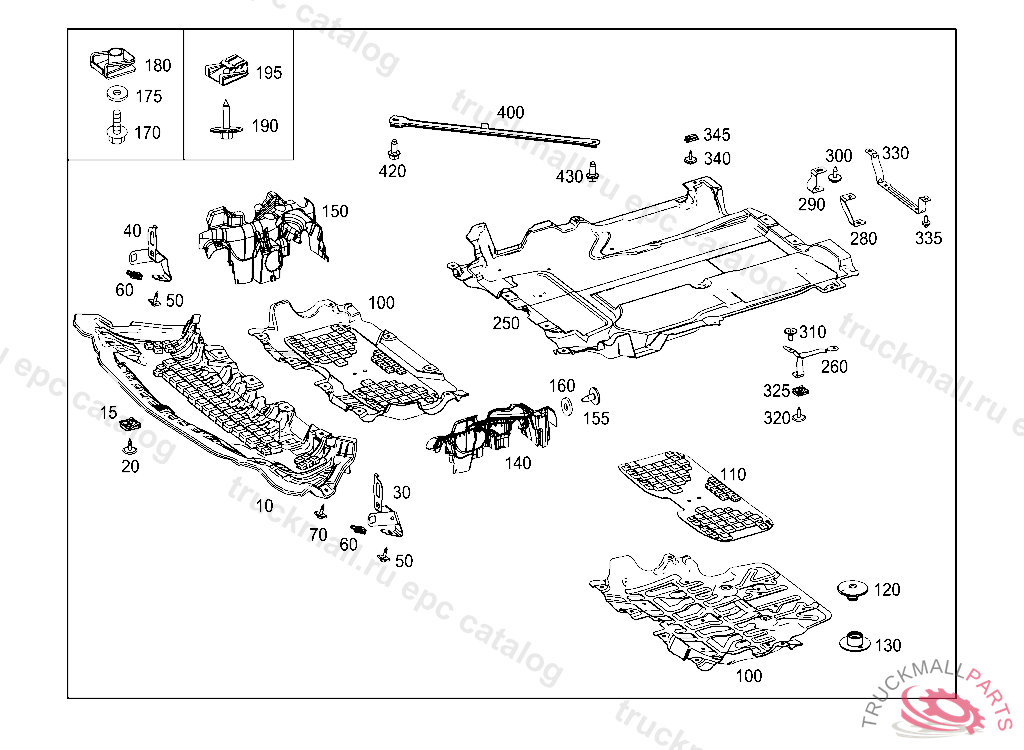

Поз.
Артикул
Описание
10
ENCAPSULATION FRONT
10
ENCAPSULATION FRONT
15
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
20
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
30
BRACKET FRONT LEFT
40
BRACKET FRONT RIGHT
50
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
60
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
70
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
100
UNDERBODY PROTECTION CENTRAL
100
ENCAPSULATION CENTRAL
110
DAMPING MAT UNDERSHIELDS
120
FASTENER BUTTON UPPER PART
130
FASTENER BUTTON LOWER PART
140
ENCAPSULATION CENTRAL LEFT
150
ENCAPSULATION CENTRAL RIGHT
155
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
160
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
180
SPRING-THREAD NUT PROTECTIVE PLATE
190
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
195
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
250
ENCAPSULATION REAR
260
BRACKET REAR LEFT
280
BRACKET REAR LEFT
290
BRACKET REAR RIGHT
300
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
310
HEXAGON NUT W COLLAR BRACKET MOUNTING
320
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
325
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
330
BRACKET BRACKET AT REAR CENTER
335
EXTERNAL HEXAL. HD. BOLT REAR BRACKET AT TUNNEL M10X20
340
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
345
CLIP-TYPE NUT REAR NOISE ENCAPSULATION TO SIDE MEMBER
400
STRUT FRONT LEFT, RIGHT
430
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
