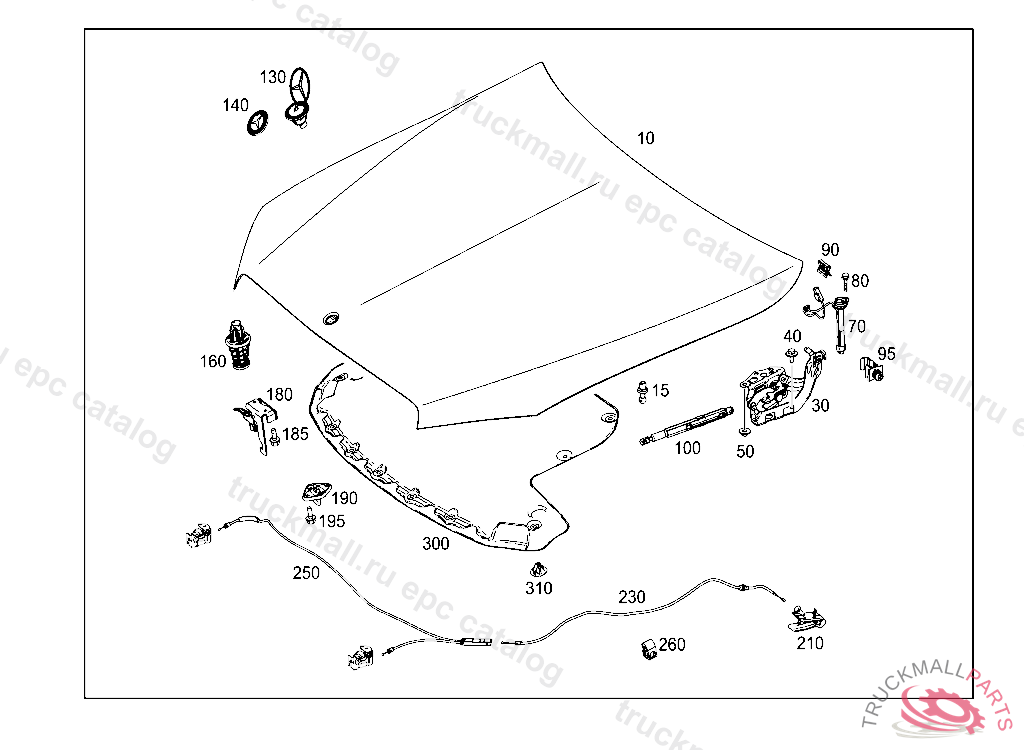

Поз.
Артикул
Описание
10
HOOD
10
HOOD
15
BALL HEAD BOLT GAS-FILLED STRUT AT LEFT TO ENGINE HOOD
30
HINGE LEFT
30
HINGE RIGHT
30
HINGE LEVER RIGHT
30
HINGE LEFT
30
HINGE RIGHT
30
HINGE LEVER LEFT
40
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X14
50
COMBINATION NUT HINGE AT ENGINE HOOD, LEFT
70
ACTUATOR LEFT AND RIGHT
80
BOLT W FLANGE FASTENING FOR ACTUATOR, LEFT AND RIGHT M6X25
90
LINE FASTENER FOR ACTUATOR PLUG
95
BRACKET
100
GAS PRESSURE STRUT RIGHT
100
GAS PRESSURE STRUT RIGHT
100
GAS PRESSURE STRUT LEFT
100
GAS PRESSURE STRUT LEFT
130
MERCEDES STAR
140
COMPANY SIGN FOR ENGINE HOOD
160
SPRING ELEMENT ENGINE HOOD, LEFT AND RIGHT
160
SPRING ELEMENT ENGINE HOOD, LEFT AND RIGHT
180
RETAINING HOOK
185
SCREW LEVER TO ENGINE CONTROL SHAFT
190
LOCK UPPER PART LEFT AND RIGHT UPPER SECTION
190
ENGINE HOOD CATCH UPPER PART
195
SCREW LEVER TO ENGINE CONTROL SHAFT
210
RELEASE HANDLE ENGINE HOOD RELEASE CABLE
230
HOOD CABLE REAR
250
HOOD CABLE FRONT
260
LINE HOLDER ENGINE HOOD RELEASE CABLE
300
INSULATION ENGINE HOOD ENGINE HOOD
310
PLUG-IN MOUNTING INSULATION TO ENGINE HOOD
