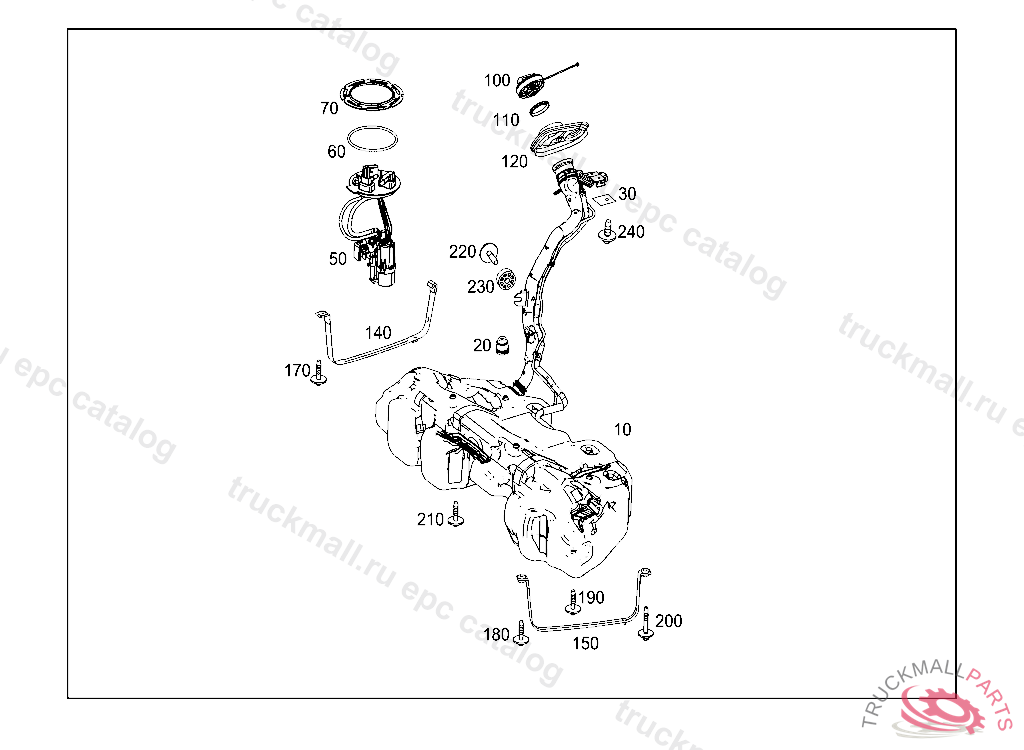

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
20
RUBBER BUMPER FUEL TANK
30
PROFILE SEAL TANK FILLER BASE TO BODYSHELL
50
FUEL DELIVERY MODULE IN TANK AT RIGHT WITHOUT FUEL LINES
50
FUEL DELIVERY MODULE IN TANK AT RIGHT WITHOUT FUEL LINES
60
O-RING PUMP TO RESERVOIR 135.5X6
70
BAYONET TYPE CAP SUPPLY UNIT AT TANK
100
FILLER CAP
100
FILLER CAP
110
SEAL RING FILLER CAP
120
PROFILE SEAL TO FILLER NECK
120
PROFILE SEAL TO FILLER NECK
140
RETAINING STRAP RIGHT
150
RETAINING STRAP LEFT
170
BOLT TANK TO BODY, CENTER M8X35
180
BOLT TANK TO BODY, CENTER M8X35
180
STOP PLUG SIDE MEMBER,REAR M8
190
BOLT TANK TO BODY, CENTER M8X35
200
EXTERNAL HEXAL. HD. BOLT TANK TO BODY, LEFT REAR
200
STOP PLUG
210
BOLT TANK TO BODY, CENTER M8X35
220
BOLT TANK TO BODY, CENTER M8X35
230
WASHER FILLER NECK TO BODY, BOTTOM
240
EXTERNAL HEXAL. HD. BOLT FILLER NECK TO BODY, TOP
