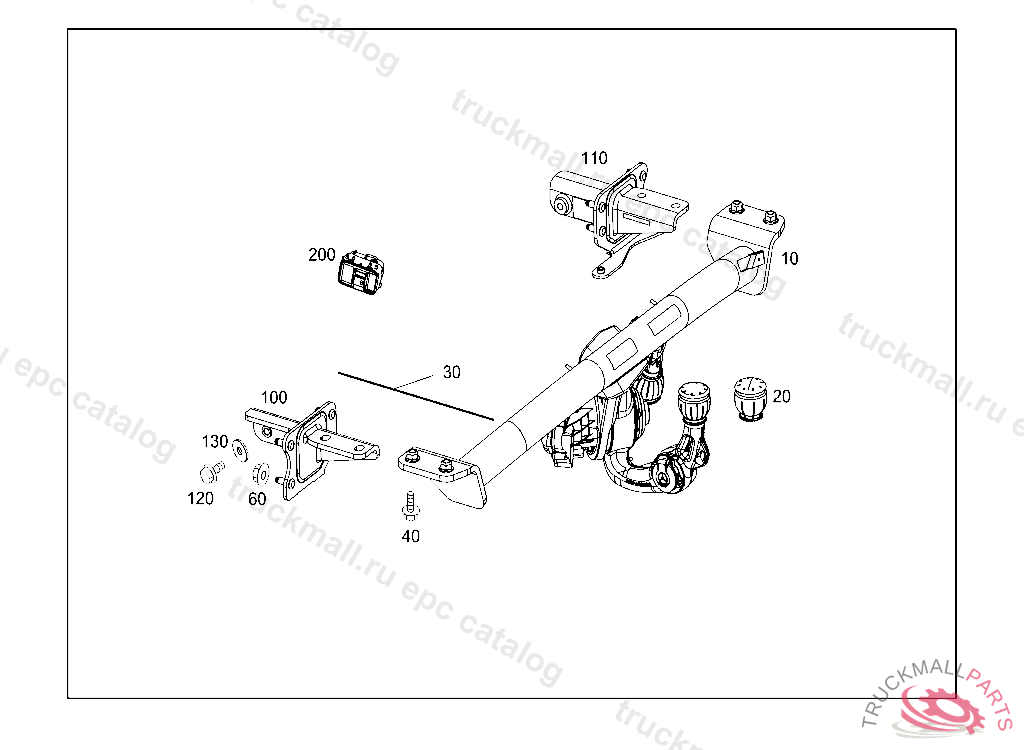

C 180 BLUETEC - 205.036 - 31 HITCHING MECHANISM
Поз.
Артикул
Описание
10
TRAILER HITCH
10
TRAILER HITCH
20
CAP
30
ELECTRICAL WIRING HARNESS
40
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
60
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
100
REINFORCEMENT LEFT
110
REINFORCEMENT RIGHT
120
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
130
WASHER MOUNTING TO CAB
200
SWITCH BLOCK LEFT TRUNK PANELING, 9051QFT205A1125 BLACK
