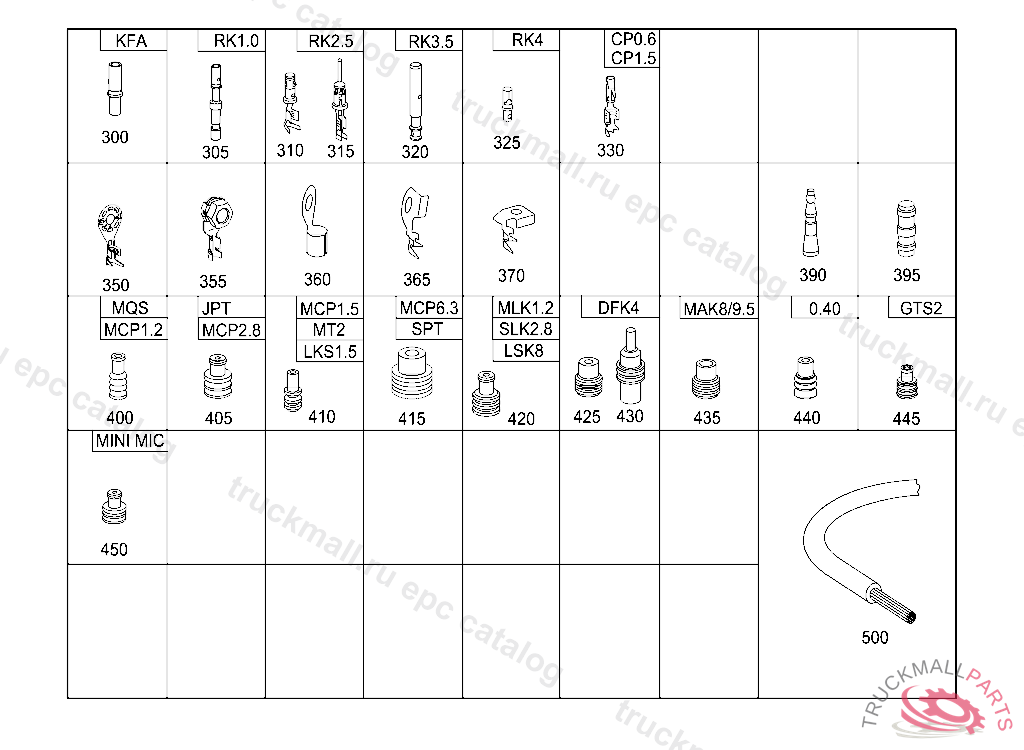

Поз.
Артикул
Описание
300
FEMALE CONTACT TRAILER SOCKET, 13-PIN 2.5 MM2 KFA
305
ROUND PIN BUSHING1 MM
310
ROUND PIN BUSHING. CONTAKT SOCKET1,5 - 2,5 MM2
310
ROUND PIN BUSHING0,5-1,0 MM2, A 394036 X 004166 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 / X 004165 WITH CODE 808
310
CONTACT SPRING2.6-4.0 MM2 RK2.5
315
PLUG2.5-4.0 MM2 RK2.5
315
PLUG PIN0,5-1,0 MM
315
PLUG PIN DOOR SEPARATION POINT 1,0-2,5 MM2
320
FEMALE CONTACT. ROUND PIN BUSHINGTO 030 545 26 28
325
ROUND PIN BUSHING4 MM2
330
HOUSING0.5-0.75 MM2 CP0.6
330
HOUSING0.5-1.0 MM2 CP1.5
330
HOUSING1.0-2.0 MM2 CP1.5
350
CABLE SHOE6,4 X 1,0-2,0MM2
350
CABLE SHOE6,4 X 4,0-6,0MM2
350
CABLE LUG, SPECIAL SHAPE6.4 X 0.5-0.85MM2
350
CABLE SHOE6,4 X 2,0-4,0MM2
355
CABLE LUG, SPECIAL SHAPEM6 0.75-1.5 MM2
360
CABLE LUG. CABLE SHOE6-16
365
CABLE SHOE0.75 MM2
365
CABLE LUG, SPECIAL SHAPE2 X 0,75 MM2
370
CABLE SHOEM6 1.5 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS GREEN 0,7 - 2,4 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS END JOINT SOLDERING DEVICE,BLUE 3.5-8.0 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS END JOINT SOLDERING DEVICE,RED 2.0-4.0 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS YELLOW 7,5 - 12,0 MM2
395
CABLE CONNECTOR0,5 MM2
395
BUTT CONNECTOR0.8MM2
395
BUTT CONNECTOR1.3MM
395
BUTT CONNECTOR2.0MM
400
GASKET YELLOW 0.2-0.5MM2,126373
400
GASKET. BLIND PLUG BLUE
400
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
405
WIRE SEAL
405
STOP PLUG. PLUG CONTROL-UNIT PLUG-CONNECTION
405
GASKET. BLIND PLUG
405
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
405
GASKET GREEN 2.5-4.0 MM2, PIN 57 - 62
410
BLIND PLUG. GASKET WITHE ELB 4
410
GASKETTO 001 540 99 81
410
GASKET ALTERNATOR 5.2 MM,G2
410
STOP PLUG. PLUG WHITE 0.5-1.0 MM2, PIN 01 - 56
410
GASKET BLACK 3.9 MM
415
GASKETTO 029 545 75 28, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
415
GASKET GREEN 8 MM
415
SINGLE-WIRE SEAL SINGLE-WIRE SEAL, BLUE
420
GASKET ALTERNATOR 5.2 MM,G2
420
BLIND PLUG ORANGE,V 215932
420
GASKET
420
BLIND PLUG GREY
420
GASKET3.2-3.6 MM,2.8-3.6MM2
420
GASKETTO 001 540 99 81
420
GASKET SINGLE-WIRE SEAL, RED 1.5-2.5 MM2
420
GASKET6.0 MM2
420
SEALING SHIM SINGLE-WIRE SEAL, RED BROWN 10 MM2,LSK8
420
BLIND PLUG. GASKET WITHE ELB 4
420
GASKET4.0 MM2
420
GASKET4.0 MM2
420
GASKET SINGLE-WIRE SEAL, ORANGE 4.0-4.4 MM,LSK8
420
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
420
SEAL. GASKET YELLOW,V 215932
420
STOP PLUG. PLUG
425
GASKET SINGLE-WIRE SEAL, YELLOW 1.6-2.0 MM
425
GASKET SINGLE-WIRE SEAL, WHITE 2.0-2.8 MM
430
BLIND PLUG DARK GREEN 8.2MM,DFK4
435
SINGLE-WIRE SEAL
435
SINGLE-WIRE SEAL
435
SINGLE-WIRE SEAL
440
HOUSING SEAL SINGLE-WIRE SEAL, VIOLET
440
HOUSING SEAL SINGLE-WIRE SEAL, GREEN 1.6-1.9 MM 0.40
445
SEAL SINGLE-WIRE SEAL, YELLOW
450
HOUSING SEAL RUSSET BROWN 1.2-1.6 MM,MINI MIC
450
SEAL LEFT O2 SENSOR DOWNSTREAM OF TWC G3/5
450
CORE BUNDLE SEALING1.0-2.5 MM2
450
WIRE SEAL GREY 0.5-1.0 MM2
