Поз.
Артикул
Описание

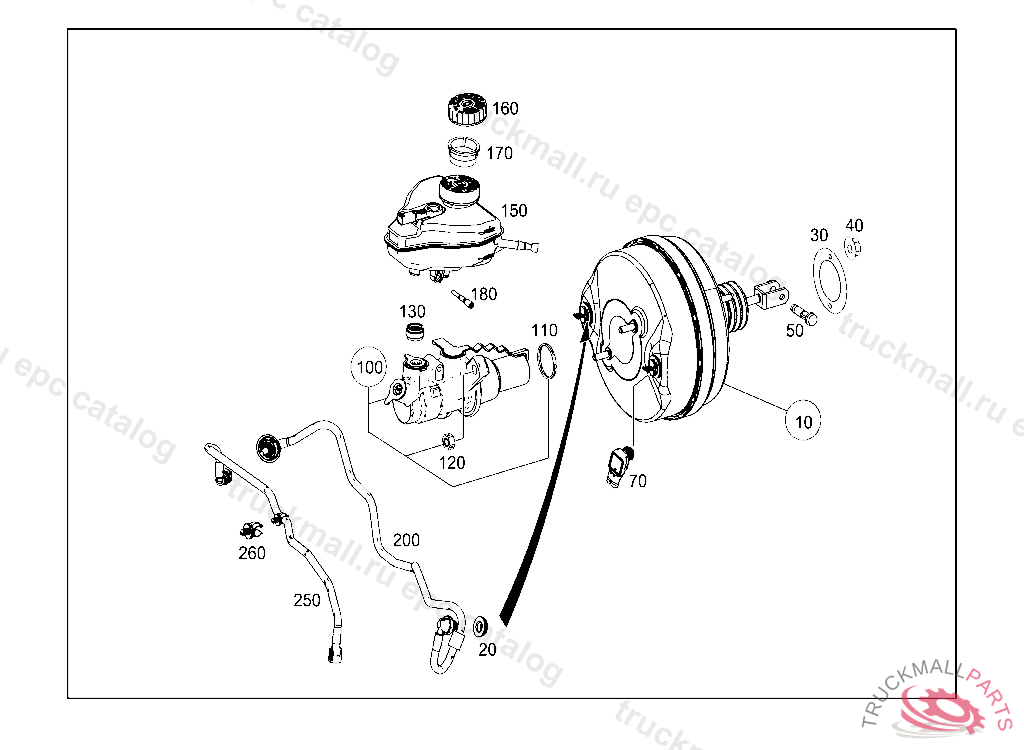

10
TS BRAKE BOOSTER PARTS KIT
20
SEALING PLUGS VACUUM LINE AT BRAKE BOOSTER
30
GASKET BRAKE BOOSTER TO BEARING BRACKET
40
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
50
PIN BRAKE UNIT TO PEDAL ASSEMBLY
70
PRESSURE SENSOR VACUUM SENSOR IN BRAKE UNIT
100
TS MASTER BRAKE CYLINDER PARTS KIT
100
TS MASTER BRAKE CYLINDER PARTS KIT
110
SEAL RING
120
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
130
STOP PLUG EXPANSION RESERVOIR TO MASTER CYLINDER
150
EXPANSION RESERVOIR
160
COVER
170
STRAINER BRAKE FLUID RESERVOIR
180
TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
200
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT
200
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT
250
VACUUM LINE FROM SEPARATION POINT TO INTAKE MANIFOLD
