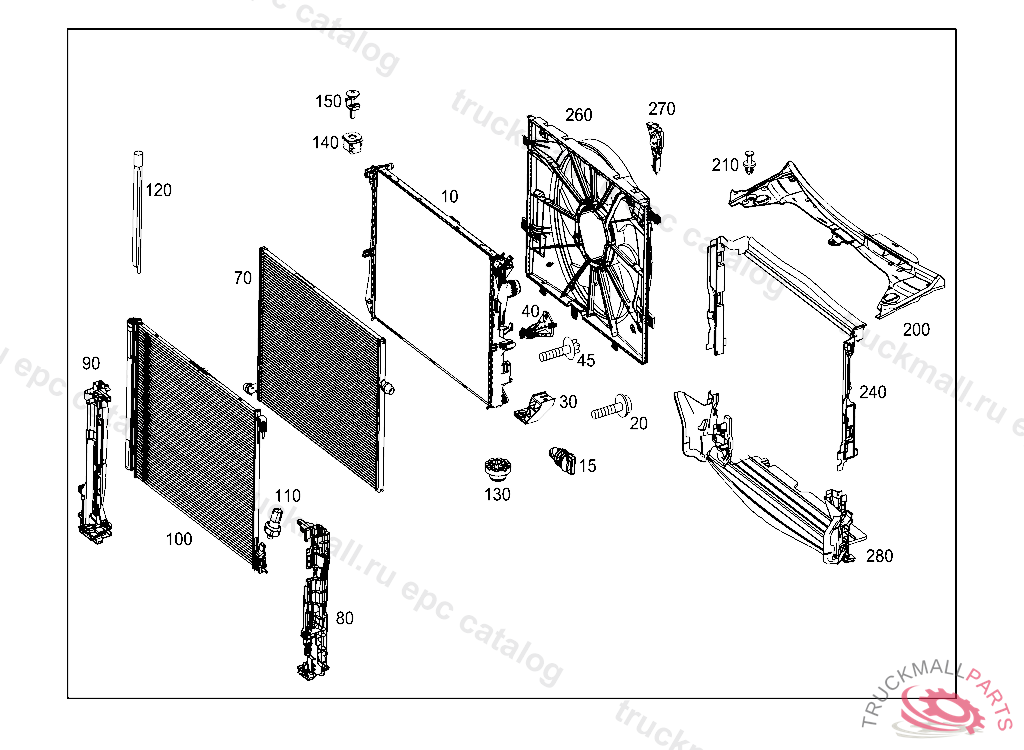

Поз.
Артикул
Описание
10
WATER COOLER
10
WATER COOLER
15
DRAIN PLUG DRAIN PLUG
20
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
30
BRACKET COOLER AT BODY SHELL ON LEFT
30
BRACKET COOLER AT BODY SHELL ON RIGHT
30
BRACKET COOLER AT BODY SHELL ON RIGHT
30
BRACKET COOLER AT BODY SHELL ON LEFT
40
BRACKET RIGHT
40
BRACKET LEFT
45
HEXALOBULAR BOLT BRACKET M6X30
70
WATER COOLER LOW TEMPERATURE RADIATOR
80
SUPPORTING FRAME LEFT
80
SUPPORTING FRAME LEFT
90
SUPPORTING FRAME RIGHT
90
SUPPORTING FRAME RIGHT
100
CAPACITOR
100
REFRIGERANT CONDENSER
110
PRESSURE SENSOR
120
REFRIGERANT DRIER
130
ELASTOMER BEARING RADIATOR BOTTOM
140
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
CLIP RADIATOR TOP
200
COLD AIR INDUCTION
210
EXPANSION RIVET MOUNTING, COVER
240
AIR DUCT TOP
240
AIR DUCT TOP
260
BLOWER
280
AIR DUCT BOTTOM
