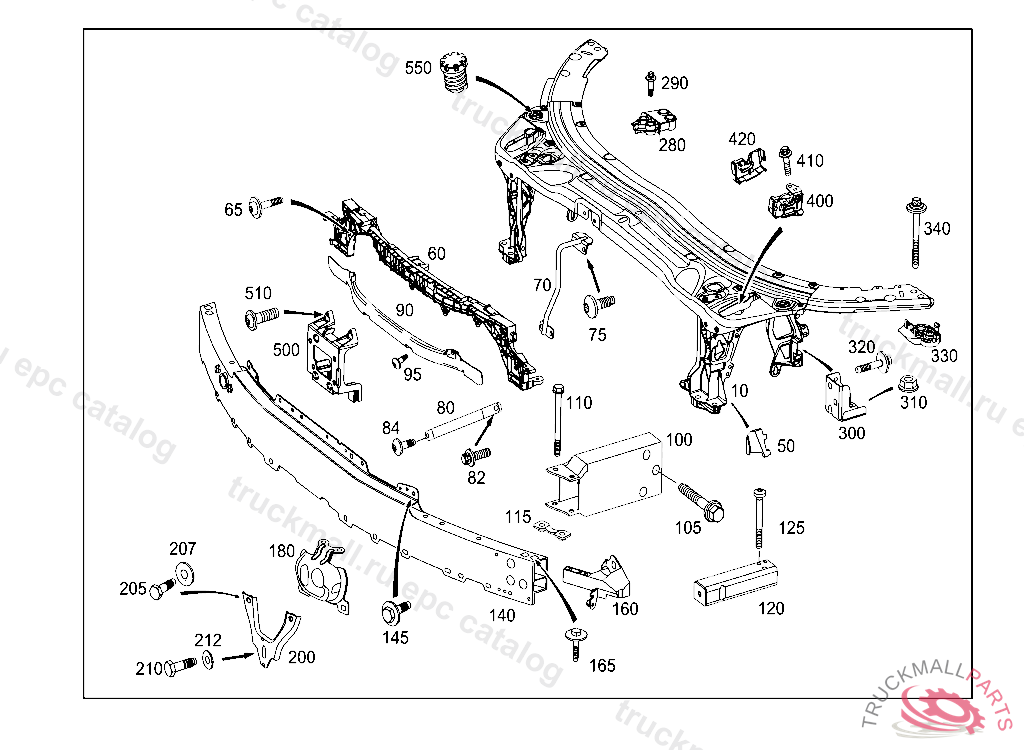

Поз.
Артикул
Описание
10
CROSS MEMBER
50
SUPPORT LEFT
50
SUPPORT RIGHT
60
CONSOLE
65
THR.ROLL.FILL.HD SCREW MOUNTING CONSOLE TO CROSSMEMBER AT LEFT AND RIGHT M6X33
70
U-SHAPED STRIKER
75
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
80
STRUT
82
HEXAGON HEAD BOLT LEFT STOP PLATE AT BODYSHELL
84
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X20
90
COVER STRIP
95
EXPANSION RIVET FASTENING COVER LEFT AND RIGHT
100
ABSORBER LEFT
100
ABSORBER RIGHT
100
ABSORBER LEFT
100
ABSORBER RIGHT
105
BOLT ABSORBER AT LONGITUDINAL MEMBER
110
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO BRACKET M10 X 120
115
THREADED PLATE ABSORBER TO CROSSMEMBER
120
ABSORBER BOTTOM LEFT & RIGHT
125
HEXALOBULAR BOLT ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
140
CROSS MEMBER BOTTOM
145
BOLT WIPER MOTOR TO REAR PANEL DOOR M6X24
160
BRACKET RIGHT
160
BRACKET LEFT
165
HEXAGON HEAD BOLT BRACKET TO BODY M6X25
180
ABSORBER LEFT AND RIGHT
200
STRUT RIGHT
200
STRUT LEFT
205
SCREW BRACKET TO CROSS CONNECTION STRUT
207
WASHER BRACKET TO CAB REAR PANEL
210
SCREW BRACKET TO CROSS CONNECTION STRUT
212
WASHER BRACKET TO CAB REAR PANEL
300
ATTACHMENT ANGLE BRACKET LEFT
300
ATTACHMENT ANGLE BRACKET RIGHT
300
ATTACHMENT ANGLE BRACKET RIGHT
300
ATTACHMENT ANGLE BRACKET LEFT
310
NUT , Replaced By: N913023006001
320
THREAD FORMING SCREW ANGLE BRACKET TO CROSSMEMBER AT LEFT AND RIGHT M6X33
330
ATTACHMENT ANGLE BRACKET RIGHT
330
ATTACHMENT ANGLE BRACKET LEFT
340
THREAD FORMING SCREW CROSSMEMBER TO LONGITUDINAL MEMBER AT LEFT AND RIGHT M6X61
400
ENGINE HOOD CATCH LEFT AND RIGHT
410
HEXALOBULAR BOLT. SCREW STAY TO CYLINDER HEAD M 6X23
420
SWITCH HOOD CATCH RIGHT
420
SWITCH FOR ANTI-THEFT ALARM, A 21281620080731 L 01422120080731 V 00079320080731 F 23142420080731 L 10000020081016
500
BRACKET PROXIMITY-CONTROLLED CRUISE CONTROL
510
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
550
BUFFER STOP LEFT AND RIGHT
