Поз.
Артикул
Описание

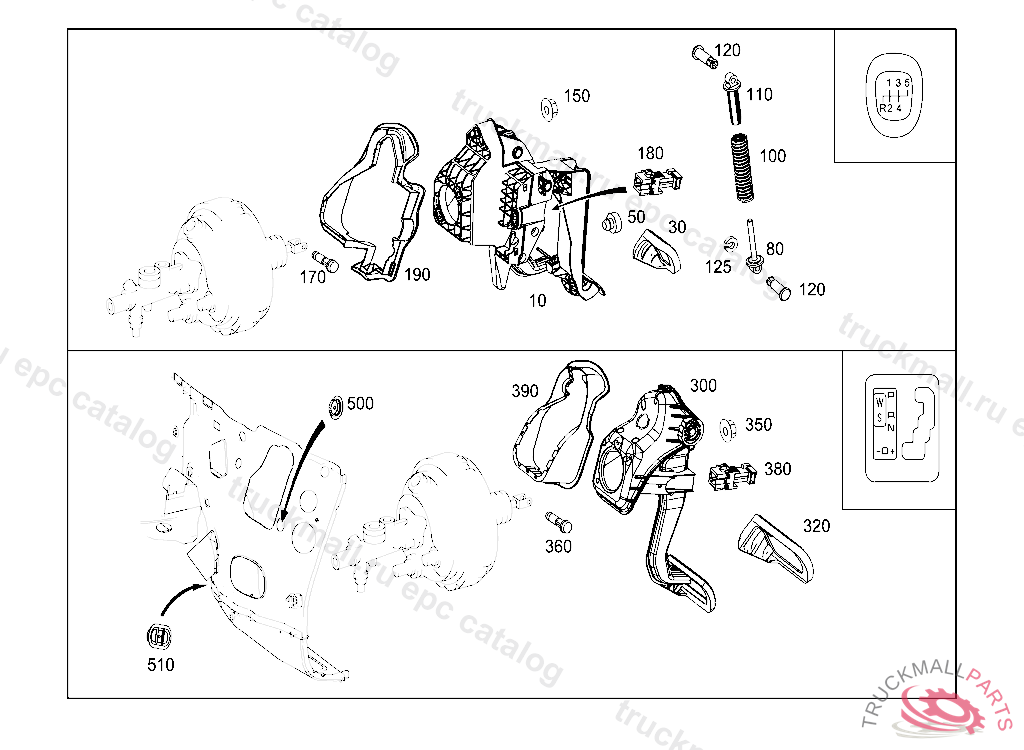

10
PEDAL SYSTEM
10
PEDAL SYSTEM , IMPORTANT: ALSO ORDER BRAKE PEDAL AND CLUTCH PEDAL COVER
30
PEDAL COVER BRAKE PEDAL
30
PEDAL COVER CLUTCH PEDAL
30
PAD CLUTCH PEDAL
30
PAD BRAKE PEDAL
30
PEDAL COVER BRAKE PEDAL
30
PAD CLUTCH PEDAL
30
PAD BRAKE PEDAL
30
PAD BRAKE PEDAL AND CLUTCH PEDAL
50
STOP BUFFER CLUTCH PEDAL
50
STOP CLUTCH PEDAL
80
ROD
100
PRESSURE SPRING
110
SPRING RETAINER OVER-CENTER ACTING SPRING
120
PIN SPRING RETAINER
125
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
150
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
PIN BRAKE UNIT TO PEDAL ASSEMBLY
180
SWITCH STOP LIGHT SWITCH
190
DAMPENING, PEDAL ASSEMBLY PEDAL ASSEMBLY
300
PEDAL SYSTEM
300
PEDAL SYSTEM , IMPORTANT: ALSO ORDER BRAKE PEDAL COVER
320
PAD BRAKE PEDAL
320
PAD BRAKE PEDAL
350
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
360
PIN BRAKE UNIT TO PEDAL ASSEMBLY
380
SWITCH STOP LIGHT SWITCH
390
DAMPENING, PEDAL ASSEMBLY PEDAL ASSEMBLY
390
DAMPENING, PEDAL ASSEMBLY PEDAL ASSEMBLY
500
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
510
STOPPER WASHER CLUTCH LINE IN LEGROOM 25X55MM
