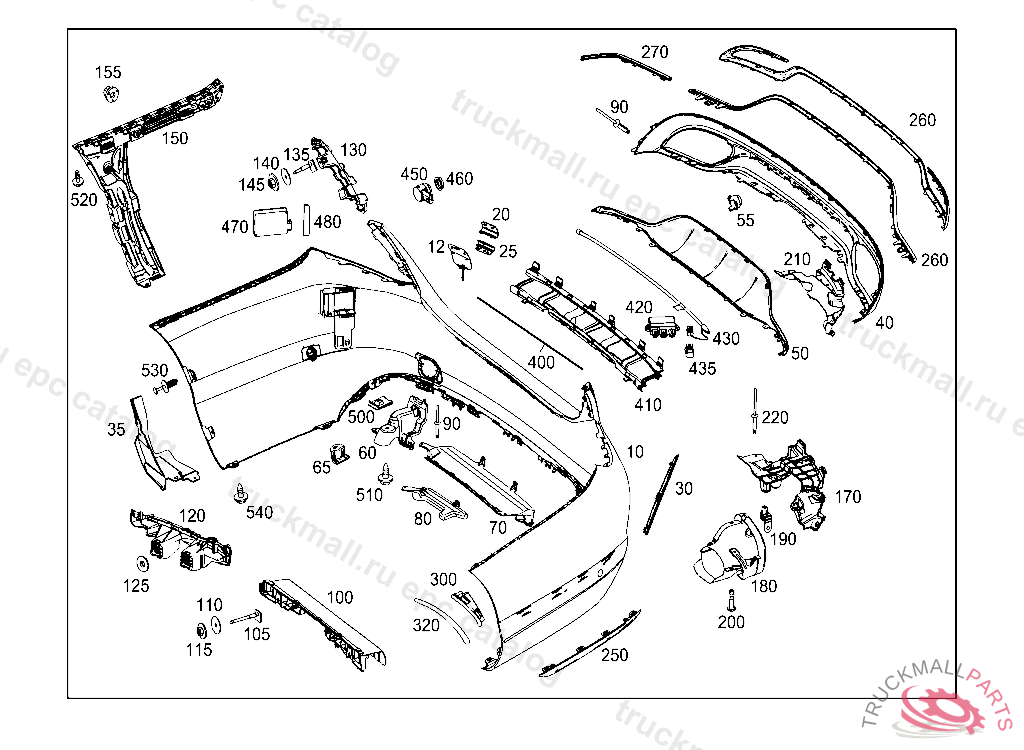

Поз.
Артикул
Описание
10
TRIM BUMPER REAR BUMPER
10
TRIM BUMPER REAR BUMPER
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
12
FIXTURE TOWING EYE COVER
12
COVER TOWING EYE TOWING EYE
20
COVER TOWING EYE TOWING EYE UPPER PART, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
25
COVER TOWING EYE TOWING EYE LOWER SECTION, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
25
COVER TOWING EYE TOWING EYE LOWER SECTION
30
COVER GRILLE RIGHT
30
COVER GRILLE LEFT
35
COVER BUMPER AREA LEFT
35
COVER BUMPER AREA RIGHT
40
TRIM BUMPER REAR BUMPER, BOTTOM
40
TRIM BUMPER REAR BUMPER, BOTTOM
40
TRIM BUMPER REAR BUMPER, BOTTOM
40
TRIM BUMPER REAR BUMPER, BOTTOM
40
TRIM BUMPER REAR BUMPER, BOTTOM
40
TRIM BUMPER REAR BUMPER, BOTTOM
40
TRIM BUMPER REAR BUMPER, BOTTOM
50
TRIM BUMPER LOWER PART, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
50
TRIM BUMPER LOWER PART, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT205L9000 COLORLESS
55
COVER MOLDING LEFT AND RIGHT SENSOR
60
BRACKET LEFT
60
BRACKET LEFT
60
BRACKET RIGHT
60
BRACKET RIGHT
65
FIXTURE RIGHT
65
FIXTURE LEFT
70
COVER BUMPER AREA CENTRAL
70
COVER BUMPER AREA CENTRAL
80
COVER BUMPER AREA RIGHT
80
COVER BUMPER AREA LEFT
80
COVER BUMPER AREA RIGHT
80
COVER BUMPER AREA LEFT
90
BLIND RIVET AT COVERING
100
BASIC MOUNTING FOR BUMPER CENTRAL
105
MOUNTING PLATE FASTENING, BASIC CARRIER, CENTER
110
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
115
NUT FENDER ON SIDE PANEL M6
120
BASIC MOUNTING FOR BUMPER RIGHT
120
BASIC MOUNTING FOR BUMPER LEFT
125
COMBINATION NUT HINGE AT ENGINE HOOD, LEFT
130
BASIC MOUNTING FOR BUMPER TOP RIGHT
130
BASIC MOUNTING FOR BUMPER TOP LEFT
135
FASTENING PLATE FASTENING, LEFT BASIC CARRIER
140
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
145
NUT FENDER ON SIDE PANEL M6
150
SIDE STABILITY LEFT
150
SIDE STABILITY RIGHT
155
NUT VALVE TO BRACKET
170
BRACKET EXHAUST TIP AT LEFT
170
BRACKET EXHAUST TIP AT RIGHT
170
BRACKET LEFT
170
BRACKET RIGHT
170
BRACKET RIGHT
170
BRACKET RIGHT
170
BRACKET LEFT
180
TAIL PIPE COVER LEFT
180
TAIL PIPE COVER RIGHT
180
TAIL PIPE COVER RIGHT
180
TAIL PIPE COVER LEFT
180
TAIL PIPE COVER RIGHT
180
TAIL PIPE COVER LEFT
180
TAIL PIPE COVER LEFT
180
TAIL PIPE COVER RIGHT
190
CLIP-TYPE NUT EXHAUST TIP AT BRACKET, LEFT AND RIGHT
200
BOLT. SCREW SEAL TO RADIATOR,TOP 6X25 MM
200
BOLT FASTENING, EXHAUST TIP
220
BLIND RIVET AT COVERING
250
MOULDING LEFT
250
MOULDING RIGHT
260
MOULDING REAR CENTRAL
260
MOULDING REAR CENTRAL
270
MOULDING REAR LEFT
270
MOULDING REAR RIGHT
300
COVER BUMPER AREA LEFT
300
COVER BUMPER AREA LEFT
300
COVER BUMPER AREA RIGHT
300
COVER BUMPER AREA RIGHT
320
COVER BUMPER AREA LEFT
320
COVER BUMPER AREA RIGHT
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
400
ELECTRICAL WIRING HARNESS
410
BRACKET REAR SWITCHING MODULE
410
BRACKET REAR SWITCHING MODULE
410
BRACKET
410
BRACKET REAR SWITCHING MODULE
420
REAR SWITCHING MODULE , THEFT-RELEVANT PART
430
REAR SWITCHING MODULE SENSOR, BOTTOM, CODING B
430
REAR SWITCHING MODULE SENSOR, TOP, CODING A
435
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
435
CLUTCH HOUSING CODING B 2-PIN MLK1.2
450
DISTANCE SENSOR INSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
460
DECOUPLING RING PARKTRONIC SYSTEM
470
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
470
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
480
BRACKET RADAR SENSOR
500
LOCK FENDER TO BODY
510
TAPPING SCREW BUMPER TO LEFT SIDE WALL
520
COMBINATION BOLT N 140 BUMPER TO SUPPORT BOTTOM M5X16
530
RIVET COVERING TO SIDE MEMBER
540
TAPPING SCREW BUMPER TO LEFT SIDE WALL
