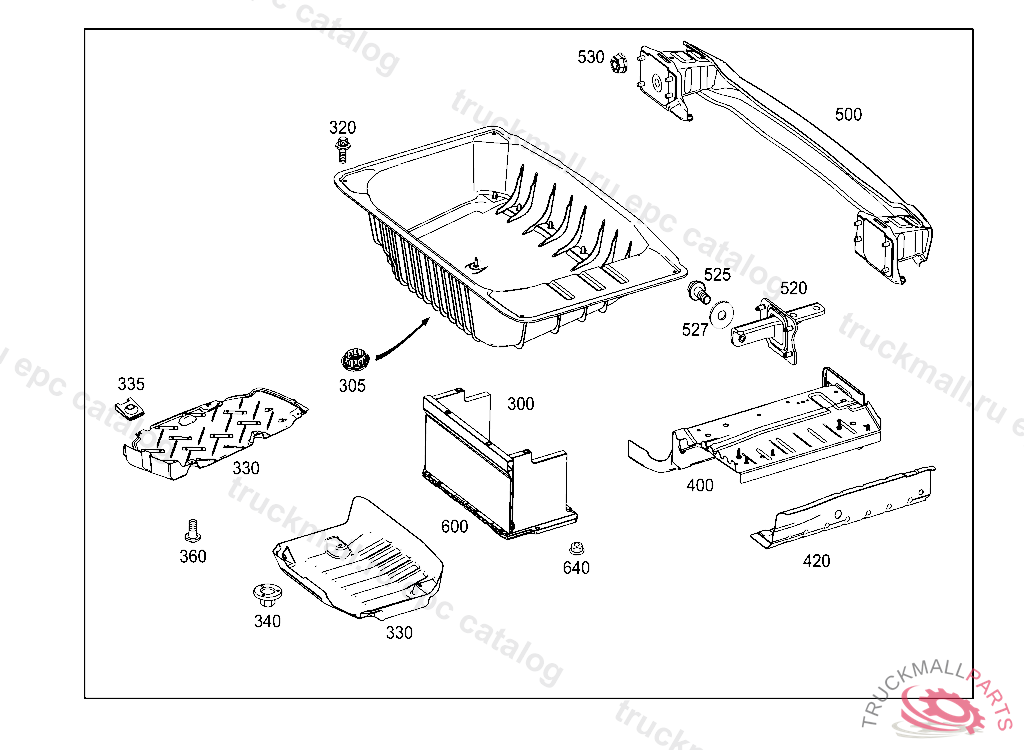

Mercedes A2056104900 - Рама акб
C 63 AMG PP 205.087
61 SUBSTRUCTURE - 045 REAR END FLOOR IL. 2
Поз.
Артикул
Описание
300
A2056104500
LOAD COMPARTMENT WELL
305
A0019985501
WATER DRAIN GROMMET FRONT LEFT BOTTOM
320
A0019901111
THREAD FORMING SCREW FASTENING, SPARE WHEEL WELL M6X15
330
A2056906700
COVER, REAR-END FLOOR
340
A0009902862
PLASTIC NUT COVER AT LOAD COMPARTMENT WELL
400
A2056102201
REAR-END FLOOR RIGHT
400
A2056102101
REAR-END FLOOR LEFT
420
A2056103400
CLOSING WALL REAR RIGHT
420
A2056112721
LONGITUDINAL MEMBER RR REAR LEFT
500
A2056100514
REAR CROSS MEMBER
500
A2056100014
REAR CROSS MEMBER
520
A2056100225
REINFORCEMENT RIGHT
520
A2056100125
REINFORCEMENT LEFT
525
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
527
N000000004228
WASHER MOUNTING TO CAB
530
N000000003275
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
600
A2056104900
BATTERY FRAME
640
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
