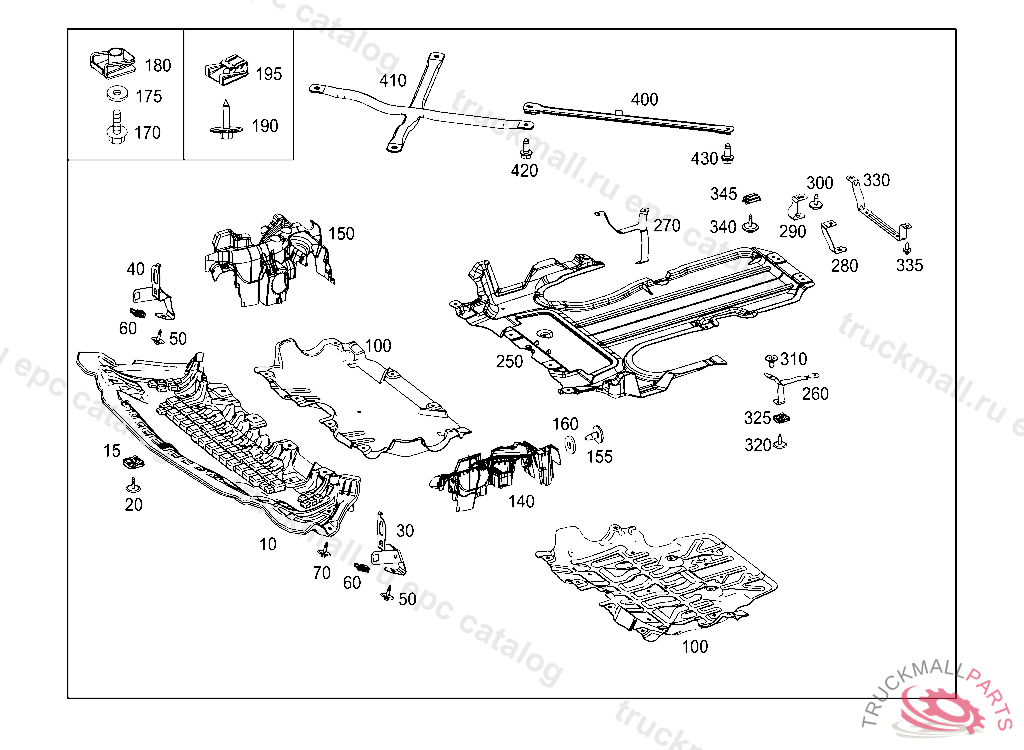

52 CHASSIS SHEET METAL / AIR INTAKE
030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Mercedes N304017008034 - Болт крепления

C 63 AMG PP 205.087

52 CHASSIS SHEET METAL / AIR INTAKE - 030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Поз.
Артикул
Описание
10
A2055241230
COVER F ENGINE COMP. BM FRONT
15
A0019902356
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
20
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
30
A2055240040
BRACKET FRONT LEFT
40
A2055240240
BRACKET FRONT RIGHT
50
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
60
A0019902356
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
70
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
100
A2055240001
UNDERBODY PROTECTION CENTRAL
100
A2055240230
COVER F ENGINE COMP. BM CENTRAL
100
A2055200223
ENCAPSULATION CENTRAL
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
190
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
195
A0019902356
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
250
A2055240530
COVER F ENGINE COMP. BM REAR
260
A2055240440
BRACKET REAR LEFT
270
A2055240640
BRACKET REAR RIGHT
280
A2055240840
BRACKET REAR LEFT
290
A2055241240
BRACKET REAR RIGHT
300
A1639900136
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
310
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
340
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
345
A0019902256
CLIP-TYPE NUT REAR NOISE ENCAPSULATION TO SIDE MEMBER
400
A2055240047
STRUT FRONT LEFT, RIGHT
410
A2055200900
STRUT UNDER INTEGRAL CARRIER
420
A0049904500
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
430
A0049904500
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
