Поз.
Артикул
Описание

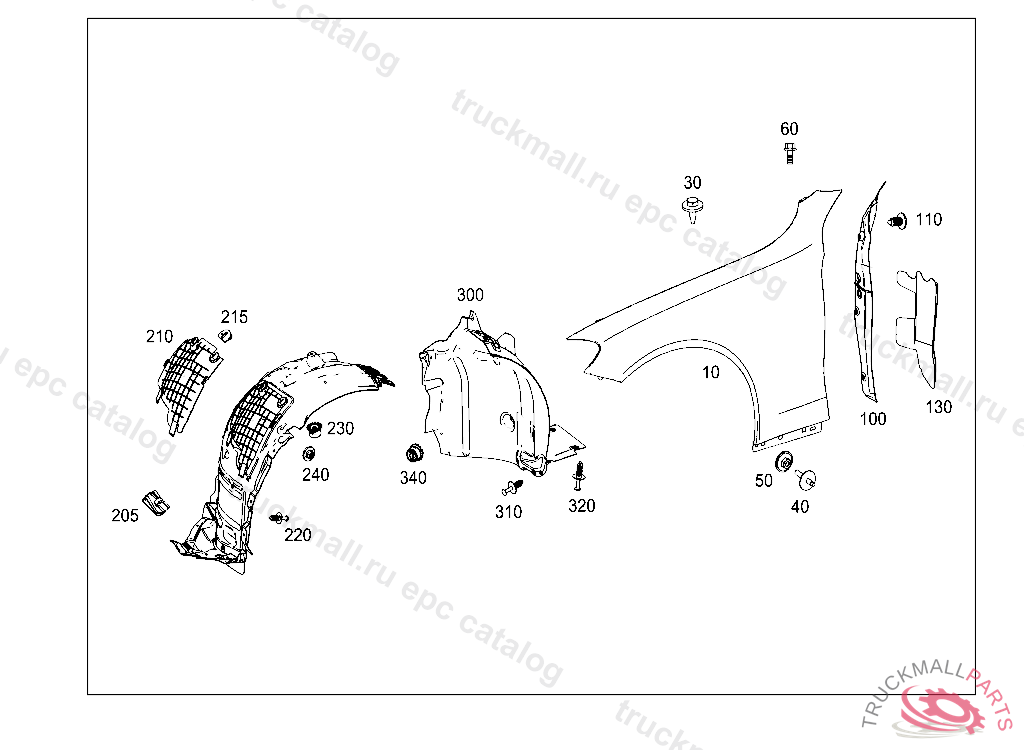

10
FRONT FENDER RIGHT
10
FRONT FENDER LEFT
30
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
40
ADJUSTING SCREW FENDER BOTTOM RIGHT MOUNTING M6X44.5
50
NUT FENDER ON SIDE PANEL M6
60
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
100
COVER, FENDER GAP RIGHT
100
COVER, FENDER GAP LEFT
110
STOP PLUG BRAKE CABLE
130
ABSORBER TO FENDER LEFT
130
ABSORBER TO FENDER RIGHT
205
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
210
SERVICING FLAP LEFT
210
SERVICING FLAP RIGHT
215
CATCH MAINTENANCE FLAP LEFT
220
RIVET COVERING TO SIDE MEMBER
230
SNAP FASTENER COVERING REAR TO SHELL, RIGHT
240
PLASTIC NUT COVER AT LOAD COMPARTMENT WELL
300
WHEEL HOUSE COVERING LEFT FRONT FENDER
300
WHEEL HOUSE COVERING RIGHT FRONT FENDER
310
RIVET COVERING TO SIDE MEMBER
320
RIVET COVERING TO SIDE MEMBER
340
SNAP FASTENER COVERING REAR TO SHELL, RIGHT
