Поз.
Артикул
Описание

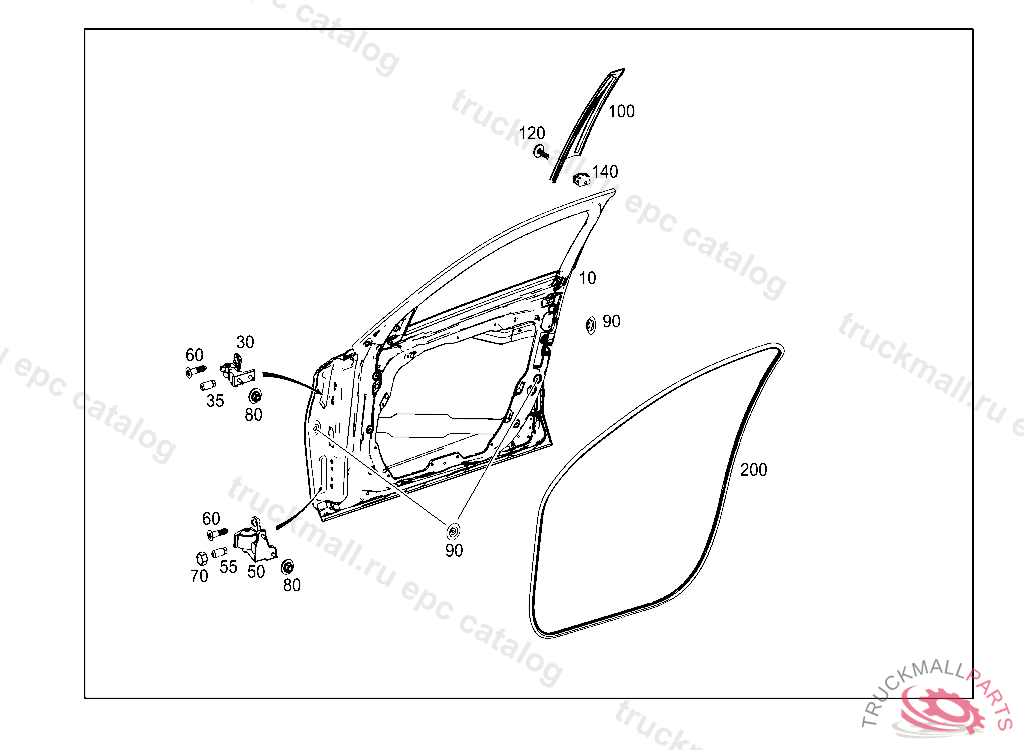

10
DRIVER'S DOOR RIGHT
10
DRIVER'S DOOR LEFT
10
DRIVER'S DOOR RIGHT
10
DRIVER'S DOOR LEFT
30
HINGE TOP LEFT
30
HINGE TOP RIGHT
35
SLOTTED SET SCREW TOP RIGHT, FOR ADJUSTMENT OPERATIONS M8X14,5
50
HINGE BOTTOM LEFT
50
HINGE BOTTOM RIGHT
55
SLOTTED SET SCREW TOP RIGHT, FOR ADJUSTMENT OPERATIONS M8X14,5
60
BOLT HINGE TO LEFT DOOR M8X35
70
COVER CAP RIGHT GRUB SCREW
80
COMBINATION NUT FOR HINGE TO B-PILLAR AT RIGHT M8
90
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE LEFT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE RIGHT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE RIGHT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE RIGHT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE LEFT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE LEFT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE LEFT
100
ORNAMENTAL MOLDING B-PILLAR OUTSIDE RIGHT
120
FILLISTER HD SCREW FASTENING AT TOP, LEFT 4X14
140
DOWEL BRACKET TO FRAME
200
CIRCUMFERENTIAL DOOR SEAL LEFT DOOR SEAL, TO BE ADAPTED DURING ASSEMBLY
