Mercedes A0019903703 - Болт

E 350 4MATIC BLUE EFFICIENCY 207.388

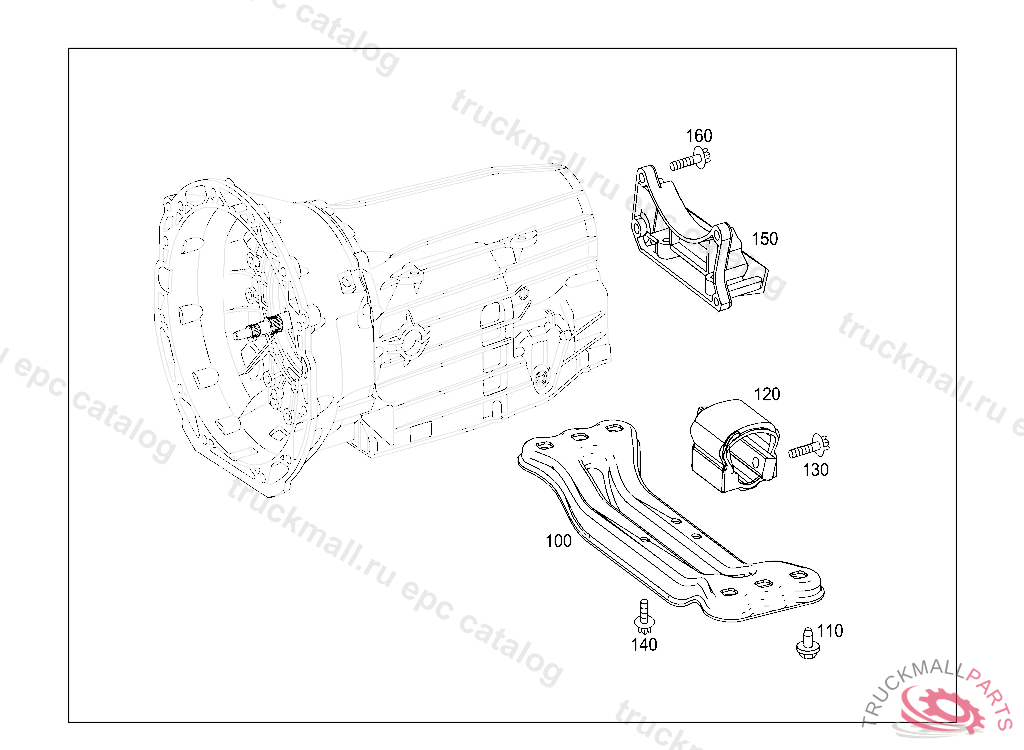

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 2

Поз.
Артикул
Описание
100
A2042400002
ENGINE SUPPORT REAR
110
A0019903703
BOLT ENGINE REAR SUPPORT TO FRAME M10X22
120
A2042400618
TRANSMISSION MOUNT REAR
130
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
140
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
150
A1402421340
BRACKET , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
150
A2112420340
BRACKET AT TRANSMISSION
150
A2052420340
BRACKET AT TRANSMISSION
160
A0049903412
BOLT BRACKET TO TRANSMISSION M6X30
160
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
