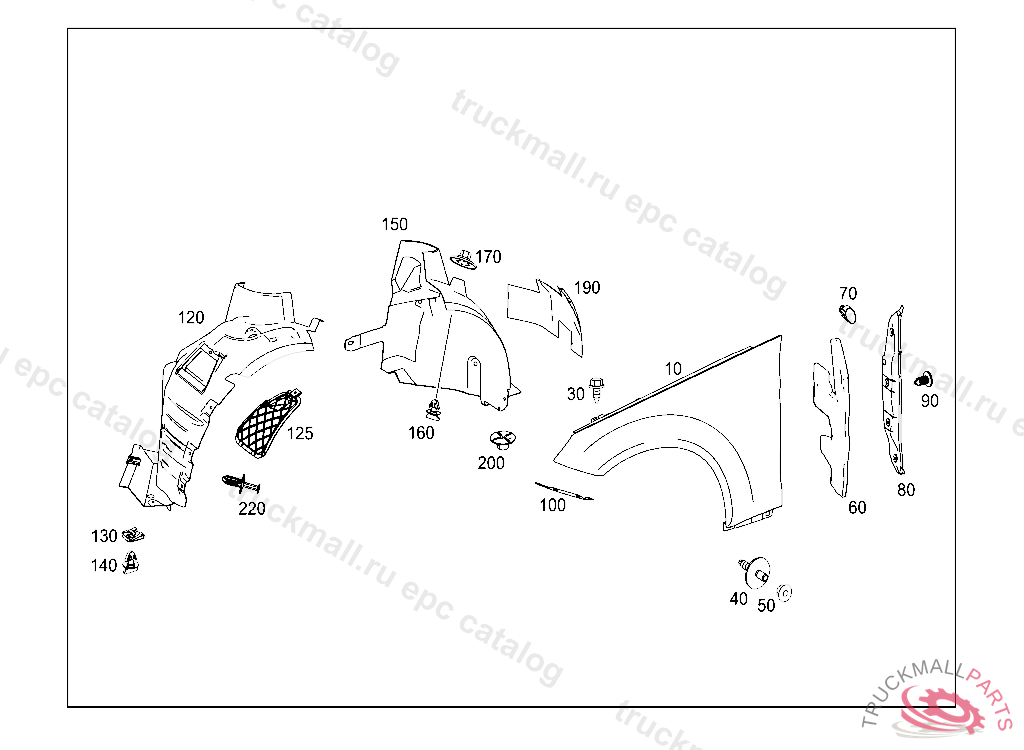

Поз.
Артикул
Описание
10
FRONT FENDER RIGHT
10
FRONT FENDER LEFT
30
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
40
STUD FENDER AT A-PILLAR, BOTTOM, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019909614
50
NUT FENDER ON SIDE PANEL M6
60
ABSORBER RIGHT
60
ABSORBER LEFT
70
STAY LEFT FENDER
80
COVER LEFT
80
COVER RIGHT
90
STOP PLUG BRAKE CABLE
100
INTERMEDIATE LAYER BETWEEN FENDER, RIGHT ANDBUMPER
100
INTERMEDIATE LAYER BETWEEN FENDER, LEFT ANDBUMPER
120
WHEEL HOUSE COVERING LEFT FRONT FENDER
120
WHEEL HOUSE COVERING RIGHT FRONT FENDER
120
COVER RIGHT FRONT FENDER
120
WHEEL HOUSE COVERING LEFT FRONT FENDER
125
SERVICING FLAP RIGHT
130
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
140
CATCH COVERING TO COVERING
150
COVER RIGHT REAR FENDER
150
COVER LEFT REAR FENDER
160
CATCH COVERING TO COVERING
170
NUT FILLER PIPE TO FRAME
190
SOUNDPROOFING RIGHT
190
SOUNDPROOFING LEFT
200
PLASTIC NUT. NUT
220
RIVET COVERING TO SIDE MEMBER
