Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

CLK 220 CDI 209.308

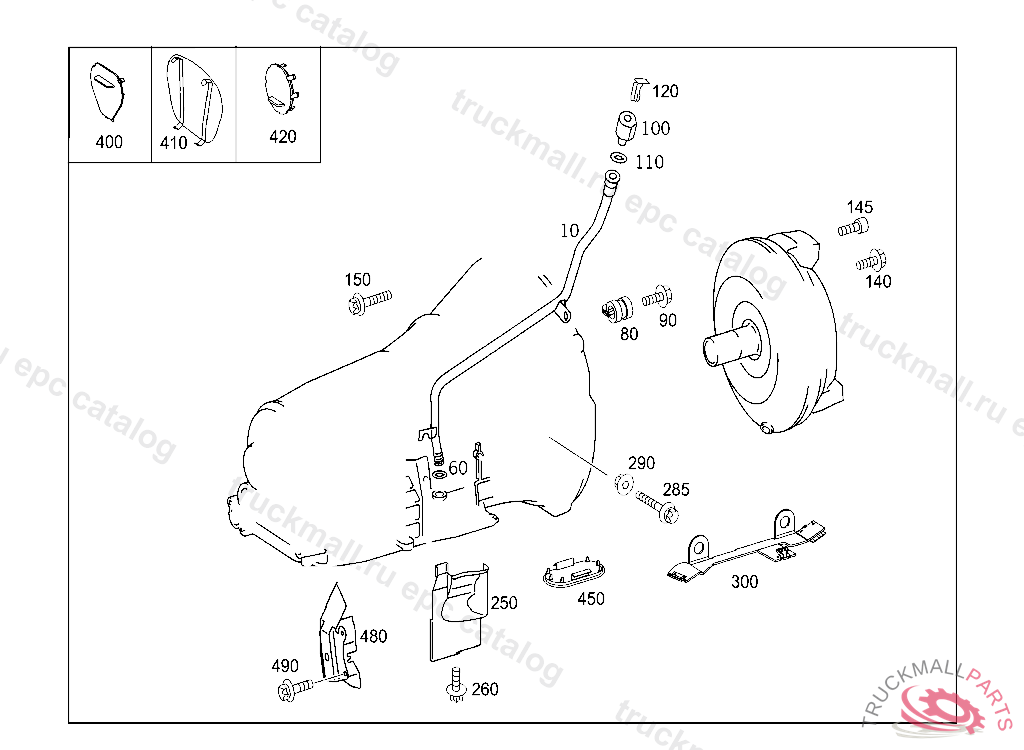

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE

Поз.
Артикул
Описание
10
A2032700284
OIL FILLER PIPE
80
A0009959342
MOUNTING CLAMP OIL FILLER TO ENGINE
80
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
90
N910106006004
HEXAGON HEAD BOLT
100
A1402700091
COVER OIL FILLER PIPE
110
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
120
A1409910055
DOWEL PIN OIL FILLER PIPE
140
A1249902201
SCREWM 8X18
150
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
150
N910143010000
SCREW PLATE TO FRAME M 10X45
250
A1402710288
COVER TRANSMISSION CASE AND OIL PAN
260
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
260
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
400
A6110140033
EXPANSION PLUG MOUNTING HOLE IN OIL PAN
480
A0005461781
COVER AT TRANSMISSION
490
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
