Mercedes A0149901101 - Болт

CLK 500 / CLK 550 USA 209.472

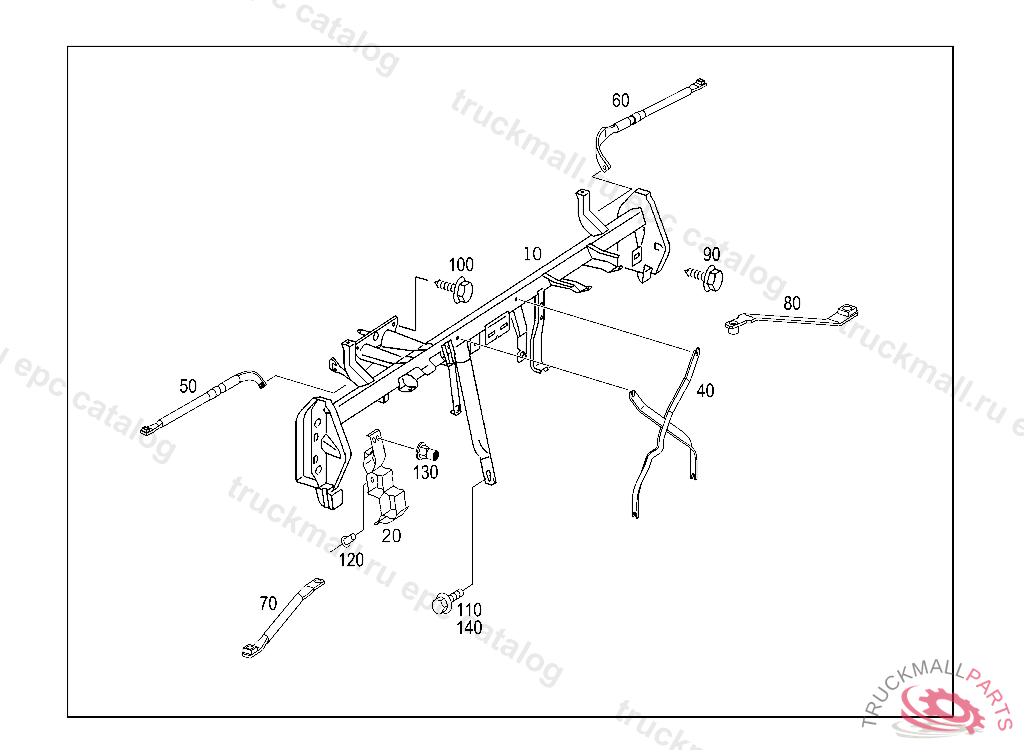

62 FRONT END, FRONT WALL - 120 CROSS MEMBER BELOW INSTRUMENT PANEL

Поз.
Артикул
Описание
10
A2096201186
CROSS MEMBER BELOW INSTRUMENT PANEL
10
A2096201286
CROSS MEMBER BELOW INSTRUMENT PANEL
10
A2096201086
CROSS MEMBER BELOW INSTRUMENT PANEL
20
A2036800814
BRACKET KNEE GUARD TO CROSS MEMBER LEFT
20
A2036800614
BRACKET KNEE GUARD TO CROSS MEMBER RIGHT
40
A2096200385
STRUT
50
A2096200485
STRUT
60
A2096200685
STRUT
70
A2096200785
STRUT
80
A2096200885
STRUT
90
A1409900317
SCREW CROSS MEMBER TO FIRE WALL M8X24
100
A0129900401
BOLT CROSS MEMBER TO FIRE WALL M6X16
110
A0129907901
BOLT CROSS MEMBER TO TUNNEL M10X16
120
A0039904597
RIVET BRACKET BEARING, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
130
A0029901158
RIVETED NUT ENGINE COMPARTMENT PANELLING
140
A0149901101
BOLT TO MAIN FLOOR LEFT, T 00057720030203
