Mercedes A2032670874 - Болт

CLK 500 / CLK 550 USA 209.472

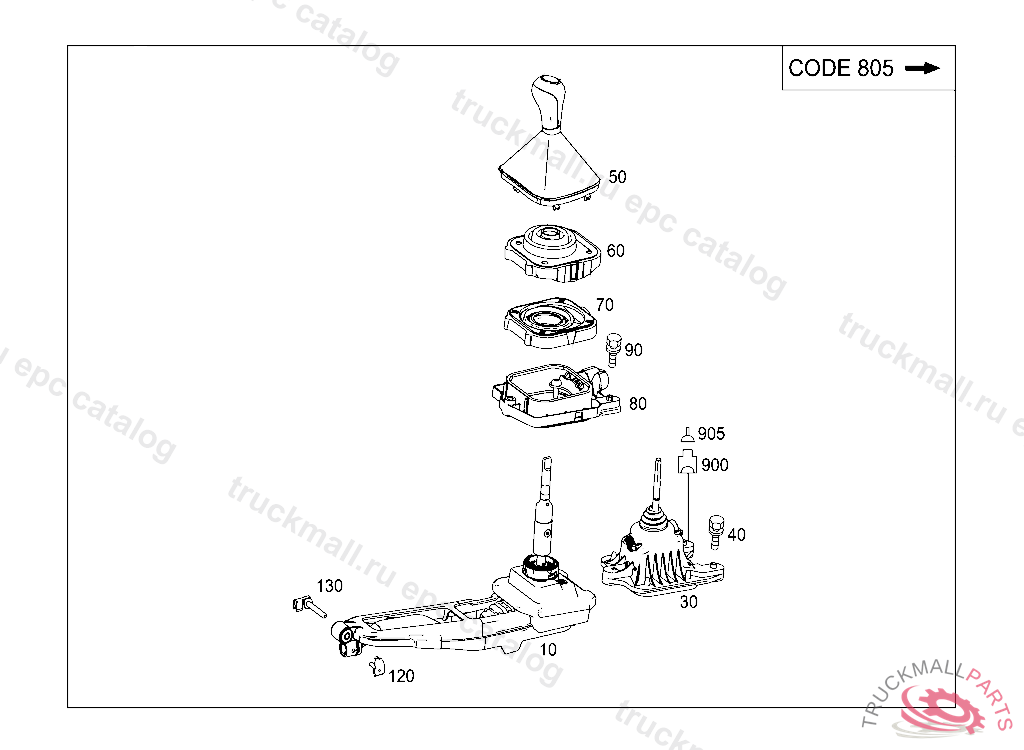

26 GEARSHIFT MECHANISM - 035 FLOOR SHIFT, MECHANICAL SIX-GEAR TRANSMISSION IL. 2

Поз.
Артикул
Описание
30
A2032606809
GEARSHIFT MECHANISM
40
N000000001634
SCREW-AND-WASHER ASSEMBLY FLOOR SHIFT TO TUNNEL M6X35
50
A2092605540
SHIFT LEVER HANDLE
50
A2032675811
SHIFT LEVER HANDLE
50
A2092605840
SHIFT LEVER HANDLE
50
A2032672511
SHIFT LEVER HANDLE
50
A2032676011
SHIFT LEVER HANDLE
50
A2032672611
SHIFT LEVER HANDLE
50
A2032676111
SHIFT LEVER HANDLE
50
A2092605740
SHIFT LEVER HANDLE
50
A2032672411
SHIFT LEVER HANDLE
50
A2032676411
SHIFT LEVER HANDLE
50
A2092605640
SHIFT LEVER HANDLE
60
A2032670397
BOOT SHIFT LEVER HANDLE, A 55589720030630804
70
A2032670497
BOOT SHIFT LEVER HANDLE, E 02000020070101804 A 55589720030630804
80
A2032672388
COVER ON TUNNEL, A 55589720030630804
90
N000000001634
SCREW-AND-WASHER ASSEMBLY FLOOR SHIFT TO TUNNEL M6X35
120
A2032670874
PIN SHIFTING ROD TO TRANSMISSION
130
A2032670774
PIN GEARSHIFT TO TRANSMISSION
900
A0015455140
PIN BUSHING HOUSING , NOT USED
900
A0015451703
COVER6-PIN,TO 001 545 51 40
905
A0005404605
REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
