Mercedes N000988010016 - ШАЙБА

E 300 DIESEL USA UP TO MODEL YEAR CODE 809 210.020

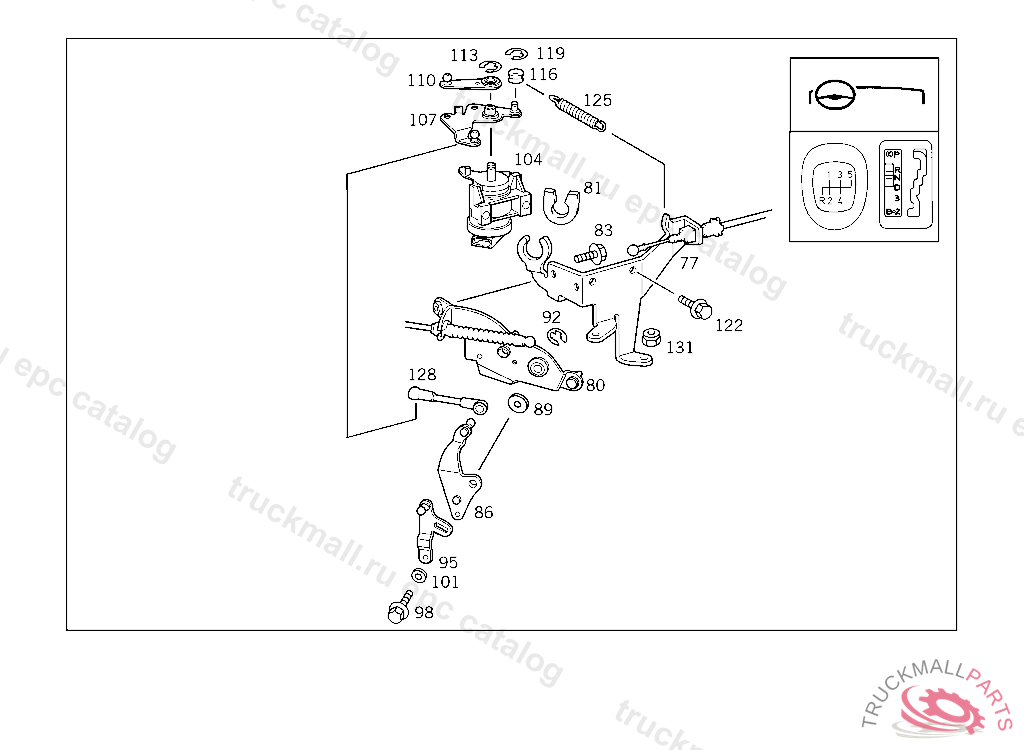

30 CONTROL - 015 CONTROL IL. 2

Поз.
Артикул
Описание
77
A2103010340
BRACKET
80
A2103000240
BRACKET
83
N304017006008
SCREW INTERMEDIATE AND CONTROL LEVERS ON BRACKET
86
A2103000625
LEVER CONTROL LEVER
89
N000988010016
FITTED WASHER AS REQUIRED 1.0 MM
92
N006799007007
LOCK PLATE RELEASE LEVER TO SHAFT
95
A2103000428
LEVER INTERMEDIATE LEVER
98
N304017006008
SCREW INTERMEDIATE AND CONTROL LEVERS ON BRACKET
101
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
101
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
104
A0115428617
SENDER UNIT (PEDAL VALUE SENSOR)
107
A2103000728
LEVER (REVERSING LEVER)
110
A2103000828
LEVER (DRAG LINK)
113
N006799007007
LOCK PLATE RELEASE LEVER TO SHAFT
116
A2103010011
ROLLER , NOT USED
119
N006799005009
LOCK PLATE , 656999
122
N304017006016
SCREW PUMP TO BRACKET
125
A2109930310
SPRING , NOT USED
128
A0010708875
ROD FROM REVERSING LEVER TO CONTROL LEVER
131
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
131
N910112006001
NUT , Replaced By: N913023006001
