Поз.
Артикул
Описание
5

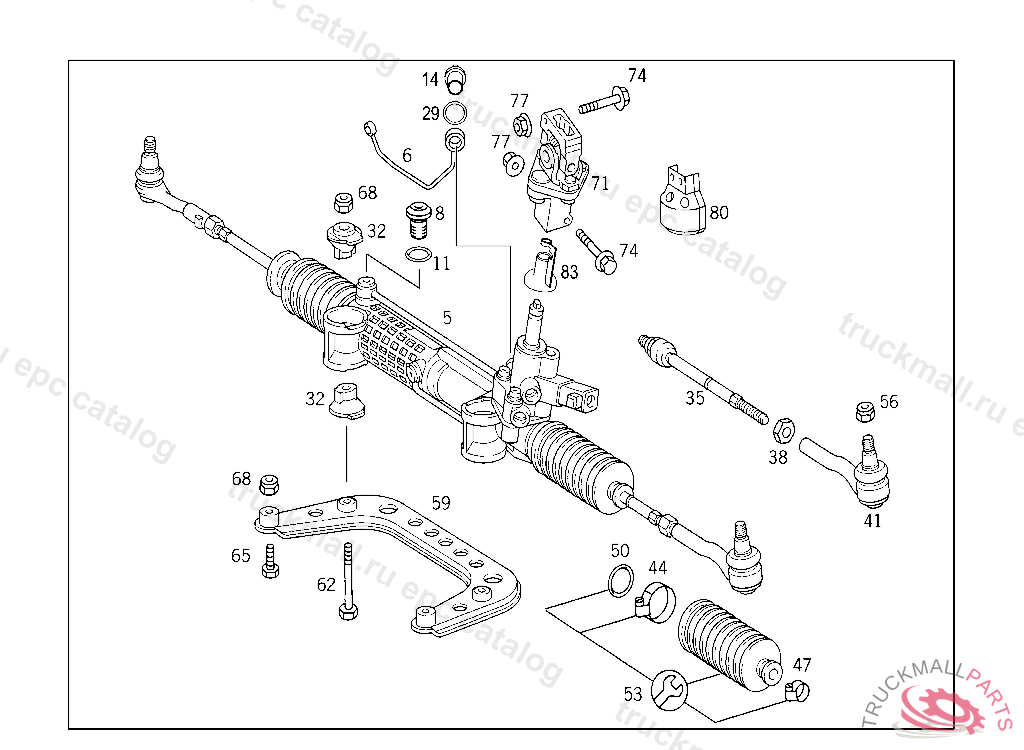

STEERING BOX ASSEMBLY RACK-AND-PINION STEERING
6
LINE
8
SCREW LINE TO STEERING
11
SEAL RING LINE TO STEERING
14
HOLLOW SCREW LINE TO STEERING
29
SEAL RING LINE TO STEERING
32
RUBBER MOUNTING AT STEERING GEAR
35
TIE ROD LEFT AND RIGHT INSIDE
38
NUT BRACKET TO SIDE MEMBER,K 035196
41
TIE ROD OUTSIDE LEFT
41
TIE ROD OUTSIDE RIGHT
44
CLAMPING PIECE LEFT AND RIGHT INSIDE
47
CLAMPING PIECE LEFT AND RIGHT OUTSIDE
50
SEAL RING INNER BOOT ON STEERING
53
REPAIR KIT RACK-AND-PINION STEERING
56
NUT BRACKET TO SIDE MEMBER
56
NUT FOR TAPPING SCREW SPRING CONTROL ARM TO WHEEL BEARING
59
MOUNTING PLATE STEERING TO CROSS MEMBER
62
SCREW STEERING TO CROSS MEMBER,A 195028
62
HEXAGON HEAD BOLT STEERING TO CROSS MEMBER,A 195029
65
SCREW STEERING TO CROSS MEMBER,A 195029
65
SCREW STEERING TO CROSS MEMBER,A 195028
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
71
STEERING COUPLING ,A 166260
74
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
77
NUT STEERING COUPLING TO STEERING GEAR,A 166260
83
BOOT RACK-AND-PINION STEERING
83
BOOT RACK-AND-PINION STEERING
