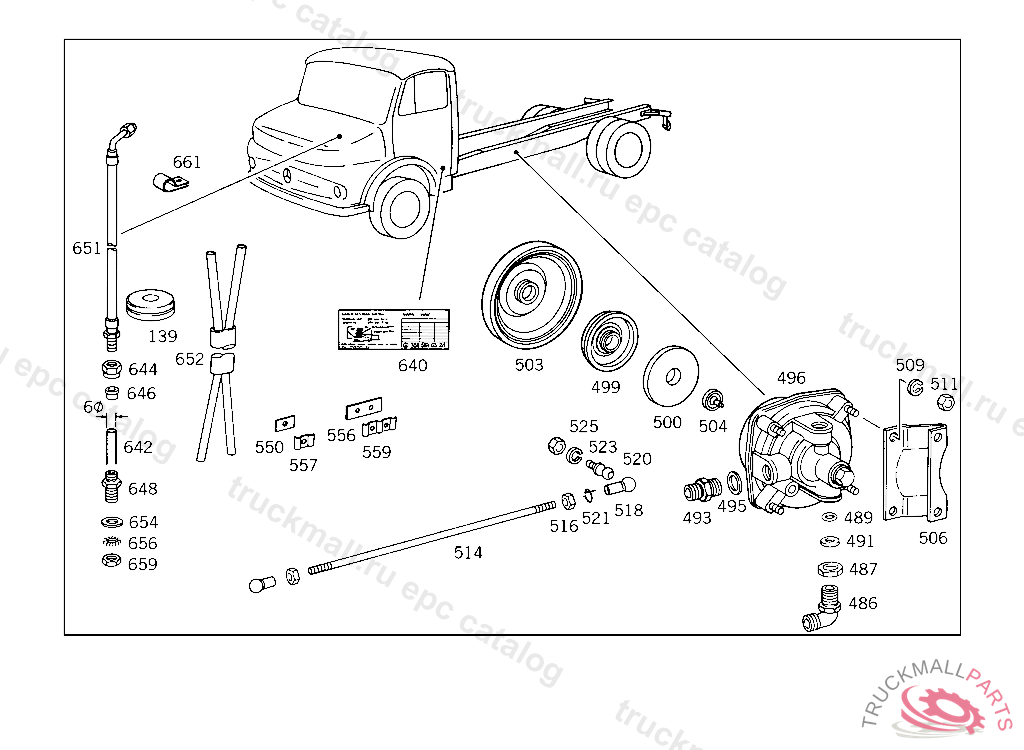

Поз.
Артикул
Описание
486
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
487
NUT CHECK VALVE TO AIR RESERVOIR
489
O-RING CHECK VALVE TO AIR RESERVOIR
491
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
493
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
495
SEAL RING LINE CONNECTION
496
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
499
CUPBOSCH
499
CUPBOSCH
500
WASHER
503
CUPBOSCH
504
VALVE DISCTO 000 429 48 30
506
BRACKET TRAILER BRAKE VALVE
506
BRACKET TRAILER BRAKE VALVE
509
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
511
NUT BRACKET TO SUPPORT AND TO END PIECE
514
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
516
NUT
518
BALL SOCKET ROD TO BALL PIVOT
520
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
521
SECURING CLIP. CIRCLIP
523
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
525
NUT
550
PLATE
556
PLATE LINE MOUNTING
557
CLAMP LINE MOUNTING
557
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
559
CLAMP
640
SCREW PIPE CLAMP
640
SCREW , Replaced By: N304017008021
642
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
642
LINE , Replaced By: A0004296201
644
UNION NUT
646
SEAL CONE
646
GLAND , Replaced By: A0019901667
648
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
651
HOSE PRESSURE GAUGE
652
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
654
WASHER
656
TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
659
NUT FITTING TO FIRE WALL
661
CLAMP LINE MOUNTING
661
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
999
PROTECTIVE CAP SHEET METAL VERSION
999
BRACKET. LOCK , Replaced By: A6525040038
999
LINE , Replaced By: A0005516456
999
DIAPHRAGM
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
DIAPHRAGMTO 001 429 48 44
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
DISTRIBUTOR ,4 342862
999
VALVE
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT SEAL RING BOSCH,209
999
VALVE , Replaced By: A0004310265
999
YOKE , Replaced By: A0004310667
999
YOKE BOTTOM
999
FILTER BOTTOMTO 000 431 24 14
999
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
999
VALVE PART , Replaced By: A0004311068
999
VALVE PART
999
BRAKE BOOSTER , Replaced By: A0004318814
999
METAL SPRING BELLOWS ,4 957941, Replaced By: A0004311718, +001N000961012047
999
METAL SPRING BELLOWS ,4 9579425 498312
999
BRAKE PRESSURE REGULATOR , Replaced By: A0004314212
999
STRAINERTO 000 431 86 14
999
SEAL RING , Replaced By: A0129975448
999
SEAL RING
999
BRAKE PRESSURE REGULATOR , UP TO CHASSIS 721608 EXCEPT FOR:500001-599999
999
BRAKE VALVE TRAILER BRAKE VALVE, 673429
999
VALVE104
999
CUP
999
BRAKE VALVE TRAILER BRAKE VALVE, 673429
999
PROTECTIVE CAP VALVE, 674067
999
CUPBOSCH
999
PISTONTO 000 431 86 14
999
PROTECTIVE CAP101
999
CUP , Replaced By: A0015864342
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
PROTECTIVE CAPTO 000 431 24 14
999
SEAL RING
999
CUPTO 000 431 76 14
999
VALVE , Replaced By: A0004320807
999
GASKETTO 000 429 16 30
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KITTO 000 429 14 31,5 116581
999
SLEEVE , Replaced By: N915062006000
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
T-FITTING , Replaced By: N074317000100
999
BANJO UNION , Replaced By: N915052006013
999
SPRING , Replaced By: A0009935205
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
HANDLETO 000 429 16 31,4 940458
999
VALVE (OVERFLOW VALVE), TRUCK FROM CHASSIS 145737,BUSES FROM CHASSIS 018154
999
REPAIR KITTO 000 431 76 14
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 86 14
999
CUP
999
CUPTO 000 431 24 14
999
CUP , Replaced By: A0014312386
999
CUPTO BOSCH-NR.0481 027 104
999
CUP101
999
SPRING
999
REPAIR KITTO 001 429 52 44
999
REPAIR KITBOSCH
999
REPAIR KIT , Replaced By: A0034201724
999
REPAIR KIT , Replaced By: A0004301107
999
REPAIR KIT , Replaced By: A0004301407
999
SEAL CONE LINE CONNECTION
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
VALVE
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KIT , FROM 626
999
REPAIR KITGRAU,5 148812
999
FITTING (PARTS KIT),LINE RUPTURE
999
SEAL RING
999
REPAIR KITTO 001 431 65 14,000 431 24 14
999
FITTING AT DISTRIBUTOR,4 481289
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 24 14
999
FITTING , Replaced By: A0029906171
999
SEAL RING , Replaced By: A0179974148
999
SEAL RING , Replaced By: A0004318660
999
SEAL RING , Replaced By: A0004318560
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
SEAL RINGTO 000 431 24 14
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
HOSE , Replaced By: A0009872827
999
SEAL RINGTO 000 429 16 31,4 940458
999
SEAL RING
999
SEAL RING101
999
WASHER FRONT AXLE, NOT USED
999
DRUCKFEDER. SPRING , Replaced By: A3145860142
999
REPAIR KIT BRAKE CAMSHAFT BEARING, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
THRUST SHACKLE , UP TO REAR AXLE029311, Replaced By: A3024201419, +001A3024230874, +001A3024940109, +001N000933008106, +001N912004008102
999
ADJUSTER. REPAIR KIT READJUSTMENT OF REAR WHEEL BRAKE,1 239645
999
SLIDE IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 302 421 01 29
999
THRUST PIN
999
SLIDE , Replaced By: A3024210229
999
SLIDE , Replaced By: A3024210329
999
SLIDE BRAKE READJUSTMENT
999
ADJUSTING PIN , Replaced By: A3024230619, +004A3024210329, +004A3124211073
999
STUD , Replaced By: A3024230170
999
PIN FROM BRAKE SHAFT TO BRAKE LEVER
999
REPAIR KIT , Replaced By: A3024202938
999
REPAIR KIT , Replaced By: A3024200067
999
WASHER , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
999
RIVET BRAKE LINING 15 MM
999
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
PAWL , Replaced By: A3145860142
999
BRACKET , Replaced By: A3124761535
999
BRACKET HEATING WATER LINE
999
PLATE , Replaced By: A3145860142
999
REPAIR KIT
999
REPAIR KIT , Replaced By: A3144200092
999
BRACKET BRAKE HOSE,REAR
999
CONSOLE , Replaced By: A3224320215, +002N913004012000
999
CONSOLE AIR RESERVOIR TO SUPPORT
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN
999
REPAIR KIT , Replaced By: A3384200082
999
LINE FROM MASTER CYLINDER TO CONNECTOR 285 MM, TO BE ADAPTED DURING ASSEMBLY
999
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1250 MM
999
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
999
REPAIR KIT , Replaced By: A3585860242
999
BEARING BRACKET , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
LEVER , 656999
999
BRAKE INTERMEDIATE SHAFT REAR
999
LEVER , Replaced By: A3604260711
999
LEVER , Replaced By: A3524301323
999
BRACKET METAL SPRING BELLOWS,4 478505
999
SHIM , Replaced By: A3604750484
999
NUT , Replaced By: A3589900051
999
WASHER BRACKET TO CROSS MEMBER,5 434013
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
PIN INTERMEDIATE LEVER
999
BRAKE SHOE ,910369 EXCEPT FOR 501456-599999910370 ALSO INSTALLED ON 501456-599999, SEE SPARE PARTS LIST 731.3, Replaced By: A3524200019, +002A3534232710, +016A3079900197
999
BRAKE SHOE ,910369 EXCEPT FOR 501456-599999910370 ALSO INSTALLED ON 501456-599999, SEE SPARE PARTS LIST 731.3, Replaced By: A3534200019, +002A3534232810, +016A3079900197
999
LINE , Replaced By: A3404200329
999
GUIDE SIGN LOAD-DEPENDING BRAKE, UP TO CHASSIS 721608 EXCEPT FOR 500001-599999
999
SCREW , Replaced By: A3544230171
999
ROD REAR
