Mercedes A2105402909 - Жгут проводов

E 320 USA UP TO MODEL YEAR CODE 809 210.055

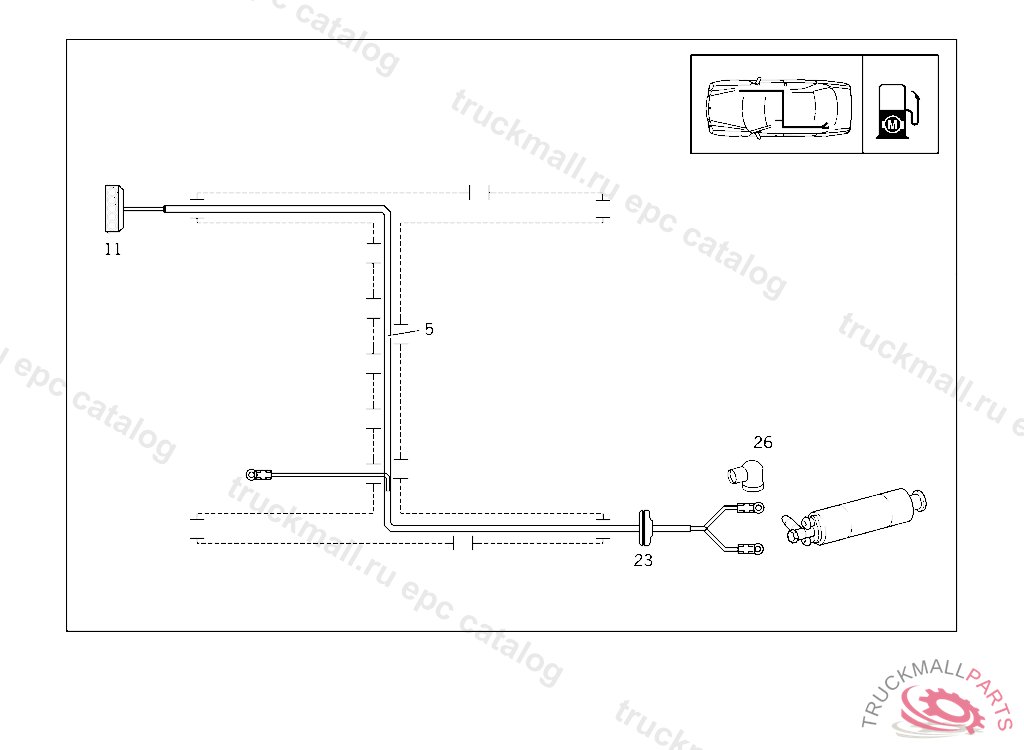

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 FUEL PUMP CABLE IL. 1

Поз.
Артикул
Описание
5
A2105402208
CABLE HARNESS FUEL PUMP, A 394035 J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
5
A2105402909
CABLE HARNESS FUEL PUMP, A 177063 J 024801 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 177064, J 024802 WITH CODE 806
5
A2105403009
CABLE HARNESS FUEL PUMP
5
A2105402308
CABLE HARNESS FUEL PUMP, A 394035 J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
8
A0085451326
PLUG HOUSING
11
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
11
A0045455326
FLAT PIN BUSHING
11
A0045455226
CONTACT SPRING1-2.5 MM2
23
A1119971481
GROMMET ENGINE COMPARTMENT LAMP
26
A1239971681
GROMMET
