Поз.
Артикул
Описание
5

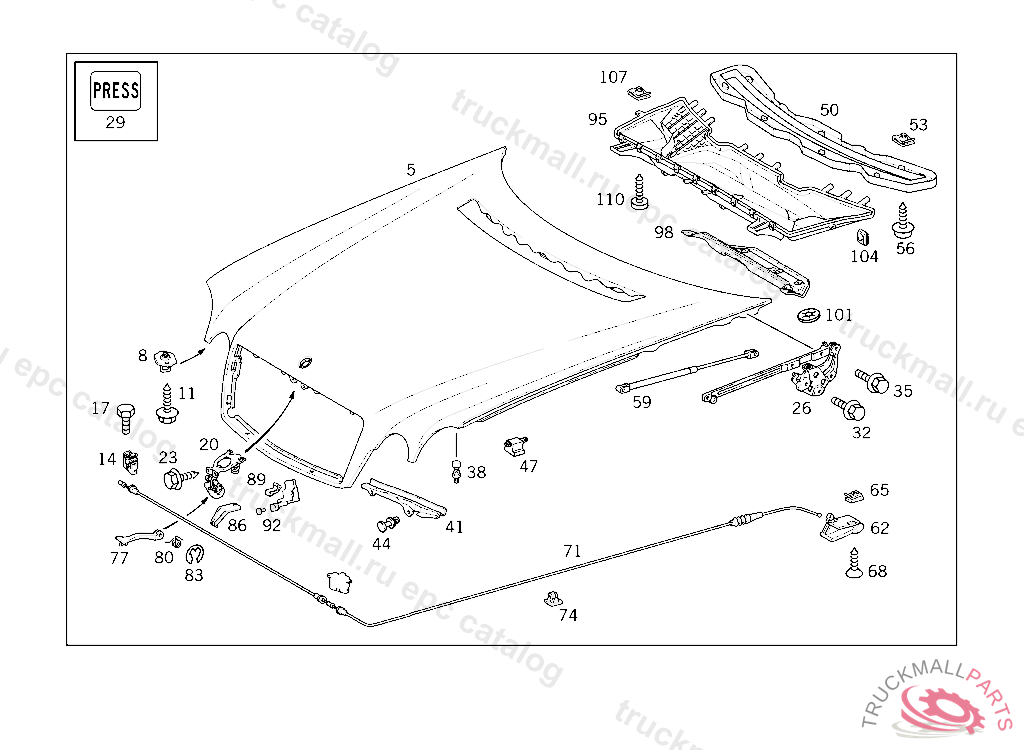

ENGINE HOOD
8
ENGINE HOOD CATCH UPPER PART
8
ENGINE HOOD CATCH , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A 402356, Replaced By: A2108800860
8
ENGINE HOOD CATCH , Replaced By: A2108801060
11
SCREW
14
ENGINE HOOD CATCH LOWER PART
14
ENGINE HOOD CATCH , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A 402356, Replaced By: A2108800960
17
SCREW , Replaced By: N304017006018
17
COMBINATION BOLT
20
SAFETY HOOK
20
SAFETY HOOK , Replaced By: A2028800164
20
SAFETY HOOK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2028800364
20
SAFETY HOOK , Replaced By: A2028800464
23
SCREW PUMP TO BRACKET
26
HINGE LEFT
26
HINGE RIGHT
29
GUIDE SIGN RIGHT HINGE "PRESS"
32
SCREW HINGE TO WHEELHOUSE
35
BOLT HINGE TO ENGINE HOOD M6X16, A 87779820051031806 E 01945020051031806
38
BUFFER LEFT, FROM CHASSIS: 010 077937
41
SEAL ENGINE HOOD BRACKET,FRONT RIGHT
41
SEAL ENGINE HOOD BRACKET,FRONT LEFT
44
STOP PLUG BRAKE CABLE
47
SEAL BETWEEN ENGINE HOOD AND FENDER
50
COVERING VENTILATION SCREEN
50
COVERING. COVER VENTILATION SCREEN
53
LOCK. FUSE LOWER PANELLING TO UPPER PANELLING
56
SHEET METAL SCREW REFRIGERANT LINE TO CAB
59
GAS SPRING. GAS-OPERATED SPRING
62
HANDLE ENGINE HOOD RELEASE CABLE
65
LOCK FRESH AIR,INSTRUMENT PANEL,CENTER
68
SHEET METAL SCREW4,2X13
71
ENGINE HOOD RELEASE CABLE
74
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
77
HANDLE RELEASE, ENGINE HOOD ELEGANCE
77
HANDLE RELEASE, ENGINE HOOD AVANTGARDE
80
SPRING HANDLE TO SAFETY HOOK
80
SPRING , Replaced By: A2028870779
83
LOCK HOSE FASTENING
86
DEFLECTOR SAFETY HOOK
89
REST TO PANEL ENGINE HOOD FRONT CENTRAL
92
BUFFER ENGINE HOOD STOP
95
AIR DUCT AT ENGINE HOOD
95
AIR DUCT AT ENGINE HOOD, A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
95
AIR DUCT AT ENGINE HOOD, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808
95
AIR DUCT , Replaced By: A2108302144
95
AIR DUCT , Replaced By: A2108302244
95
AIR DUCT , Replaced By: A2108302444
98
INSULATION , Replaced By: A2106823728
98
INSULATION AIR DUCT TO ENGINE HOOD, A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
98
INSULATION AIR DUCT TO ENGINE HOOD, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
101
FUSE JACKET TUBE WIRING HARNESS FASTENING
104
VALVE WATER DRAIN, A 183683
107
LOCK INSTRUMENT PANEL TO PANELLING
110
SHEET METAL SCREW REFRIGERANT LINE TO CAB
