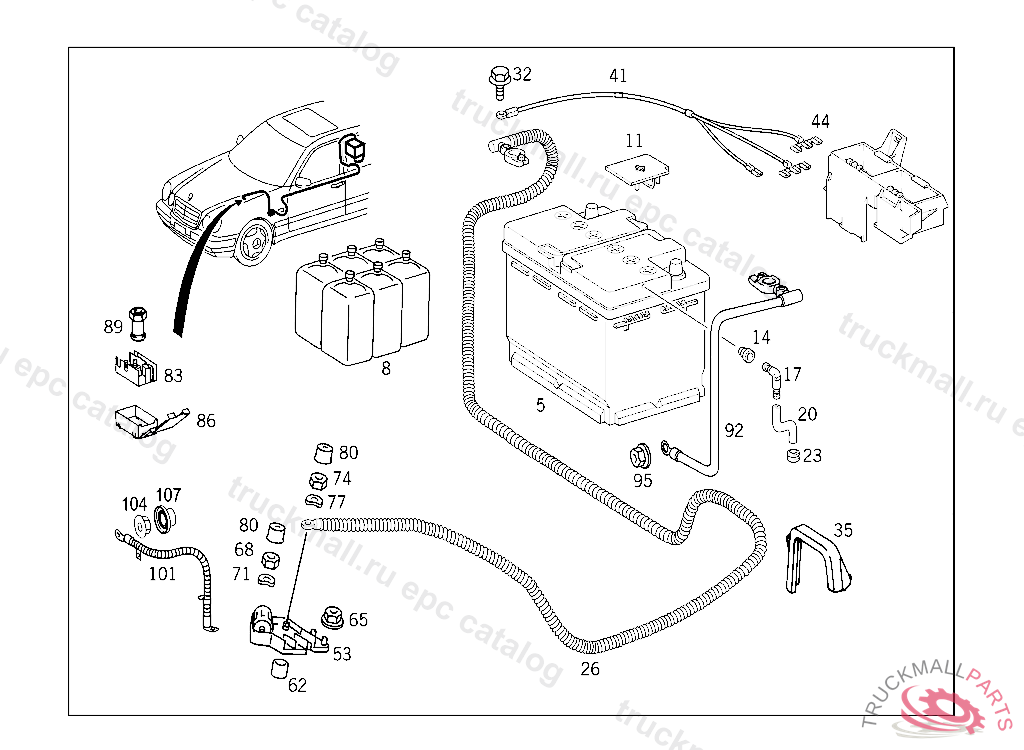

Поз.
Артикул
Описание
5
BATTERY FILLED 12V/100 AH
5
BATTERY , Replaced By: A0045414601
5
BATTERY100 AH
5
BATTERY LEAD/CALCIUM/SILVER 100 AH, Replaced By: A0055412501
5
BATTERY PARTS KIT
8
BATTERY ACID BOTTLE SET
11
BOOT , Replaced By: A0015460835
11
BOOT POS. POLE
14
STOP PLUG. PLUG ON BATTERY,LATERALLY
17
ELBOW FITTING. DISTRIBUTOR
20
HOSE , ORDER BY THE METER
20
HOSE BREATHER LINE 65X45 MM, ORDER BY THE METER
23
GROMMET BREATHER LINE
32
SCREW , Replaced By: N910105006002
32
HEXAGON HEAD BOLT
41
CABLE HARNESS FROM BATTERY TO FUSE BOX
44
CONTACT SPRING FUSE BOX 1,5-2,5 MM2
44
CONTACT SPRING1.5-2.5 MM2, 1POLIG, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
44
CONTACT SPRING1.5-2.5 MM2, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
62
GASKETTO 129 540 00 69
65
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
65
NUT , Replaced By: N913023006001
65
NUT , Replaced By: N910112006001
68
NUT BALL PIVOT TO LEVER
71
SPRING WASHER LICENSE PLATE TO BRACKET
74
NUT BRACKET TO RETARDER
77
SPRING WASHER STEERING COLUMN BRACKET TO CAB
80
BOOT BATTERY CABLE TO CABLE CONNECTOR
83
CABLE CONNECTOR BATTERY CABLE TO FRAME
86
CAP BATTERY CABLE TO FRAME
89
NUT BATTERY CABLE TO CABLE CONNECTOR
89
NUT ON AUXILIARY JUMP START BOLTS
92
NEG. CABLE , Replaced By: A2105400631
92
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
95
NUT COVERING TO RAIL
101
POSITIVE CABLE FROM CABLE CONNECTOR TO STARTING MOTOR
