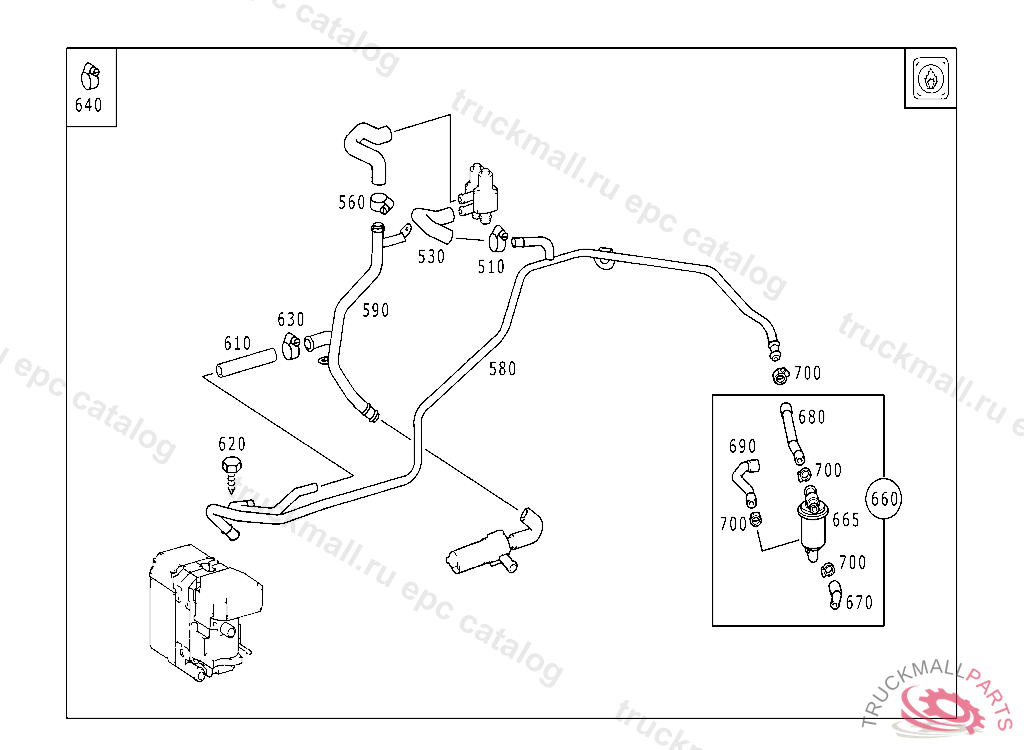

E 55 AMG USA UP TO MODEL YEAR CODE 809 - 210.074 - 50 RADIATOR
Поз.
Артикул
Описание
510
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
560
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
580
LINE
590
LINE
610
HOSE
620
TAPPING SCREW BRACKET MOUNTING 6.3X13
630
HOSE CLAMP LINE MOUNTING
640
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
660
VALVE BETWEEN PIPE AND HEATER FEED LINE
665
VALVE
670
HOSE
670
HOSE
680
HOSE
680
HOSE
690
HOSE
690
HOSE
700
HOSE CLAMP LINE MOUNTING
700
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
