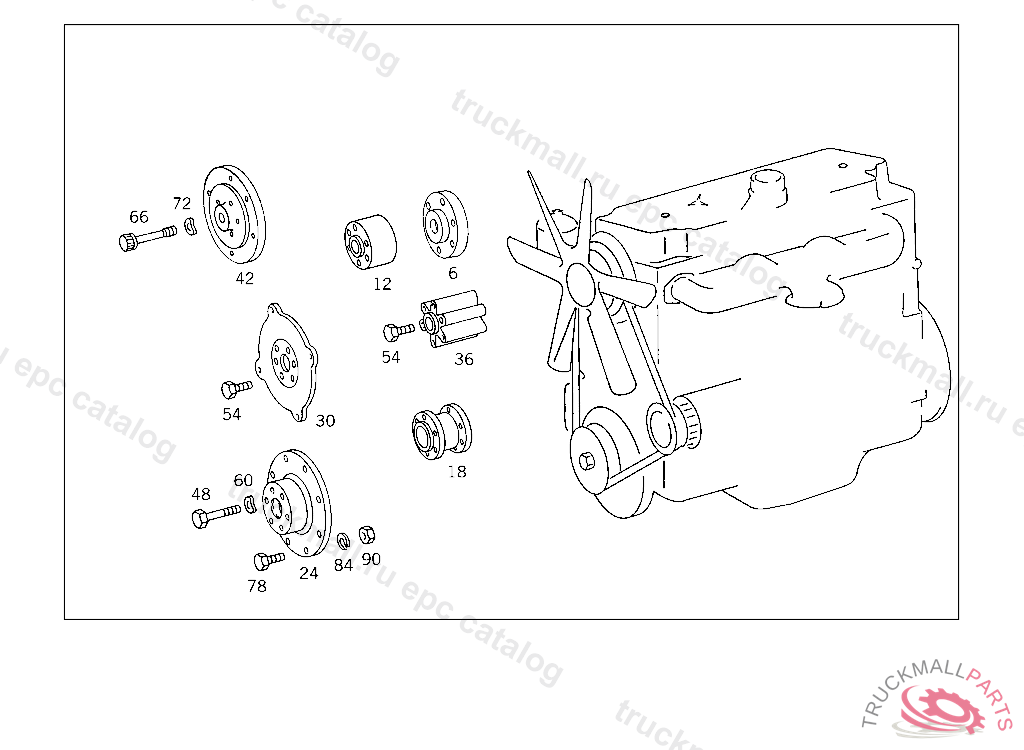

Поз.
Артикул
Описание
6
INTERMEDIATE PIECE FAN
6
INTERMEDIATE PIECE FAN
12
INTERMEDIATE PIECE FAN
12
INTERMEDIATE PIECE FAN
12
INTERMEDIATE PIECE FAN
12
INTERMEDIATE PIECE FAN
18
INTERMEDIATE PIECE FAN
18
INTERMEDIATE PIECE FAN
18
INTERMEDIATE PIECE FAN
18
INTERMEDIATE PIECE FAN
18
INTERMEDIATE PIECE FAN
18
INTERMEDIATE PIECE FAN
24
INTERMEDIATE PIECE FAN
24
INTERMEDIATE PIECE FAN
30
INTERMEDIATE PIECE FAN
36
INTERMEDIATE PIECE
42
INTERMEDIATE PIECE FAN
48
SCREW INTERMEDIATE PIECE AND SPACER TO WATER PUMP
48
HEXAGON HEAD BOLT. SCREW POWER CYLINDER TO BRACKET
54
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
54
SCREW CABLE HARNESS MOUNTING
54
SCREW , Replaced By: N304017008023
60
SPRING WASHER , Replaced By: N000137008212
60
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
66
SCREW (NECKED-DOWN BOLT),FAN MOUNTING
72
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
78
SCREW , Replaced By: N304017008027
78
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
84
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
NUT , Replaced By: N304032008006
90
NUT
999
INTERMEDIATE PIECE FAN
999
INTERMEDIATE PIECE FAN
