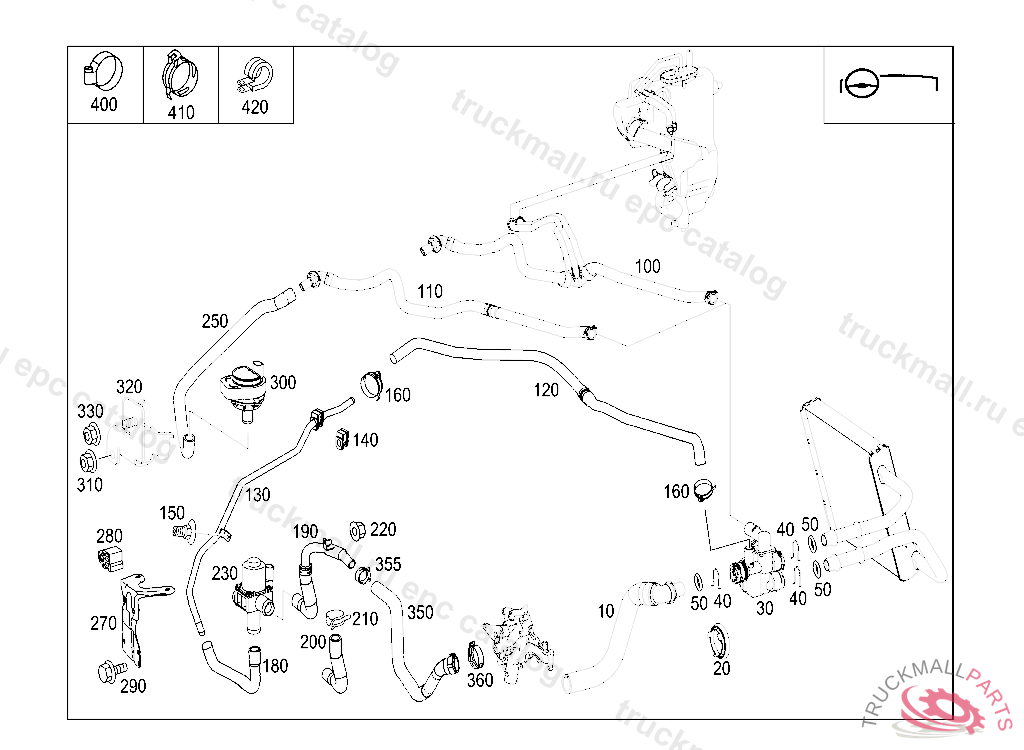

Поз.
Артикул
Описание
10
HOSE TO VALVE, A 08002320060630807
10
HOSE TO VALVE, A 03833220050630806
20
SEAL FEED
30
VALVE
40
STOP SPRING CHANGE-OVER VALVE
50
SEAL RING CHANGE-OVER VALVE
100
HOSE RETURN, A 03833220060630806
100
HOSE RETURN, A 08002320060630807
110
HOSE RETURN, A 08002320060630807
110
HOSE RETURN, A 03833220060630806
120
MOLDED HOSE BETWEEN PIPE LINE AND VALVE, BEHIND PARTITION WALL, A 08002320060630807
120
HOSE BETWEEN PIPE LINE AND VALVE, BEHIND PARTITION WALL, A 03833220050630806
130
PIPELINE
140
GROMMET HEATING WATER
150
NUT COVERING TO CAB FIRE WALL
160
CLAMP. LOOM TIE
180
HOSE AT VALVE
190
LINE FROM PIPE LINE TO VALVE
200
HOSE FROM PIPE LINE TO VALVE
210
CLAMP25 MM
220
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
230
VALVE
250
MOLDED HOSE AT RECIRCULATING PUMP, A 03833220060630806, Replaced By: A2118303996
250
HOSE AT RECIRCULATING PUMP, A 08002320060630807
250
HOSE AT RECIRCULATING PUMP
270
BRACKET VALVE
280
CLAMP FUEL LINE TO SIDE MEMBER,B 926099
290
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
300
CIRCULATION PUMP RIGHT SIDE MEMBER
310
NUT COVERING TO CAB FIRE WALL
320
BRACKET CIRCULATION PUMP
330
NUT , Replaced By: N913023006001
400
CLAMP HOSE FASTENING 28-35 MM,V 207570
410
CLAMP25 MM
410
CLAMP25-40X13 MM
410
CLAMP OUTSIDE 17-19 MM
410
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
410
HOSE CLAMP HOSE ATTACHMENT 27 MM
410
CLAMP COOLANT HOSE TO COOLANT LINE 23-26 MM
420
CLAMP HOSE TO FLANGE AND TO VALVE
