Главная
›
Mercedes
›
CAR
›
E 500 / E 550 JAPAN
›
211.272
›
78 SLIDING ROOF
›

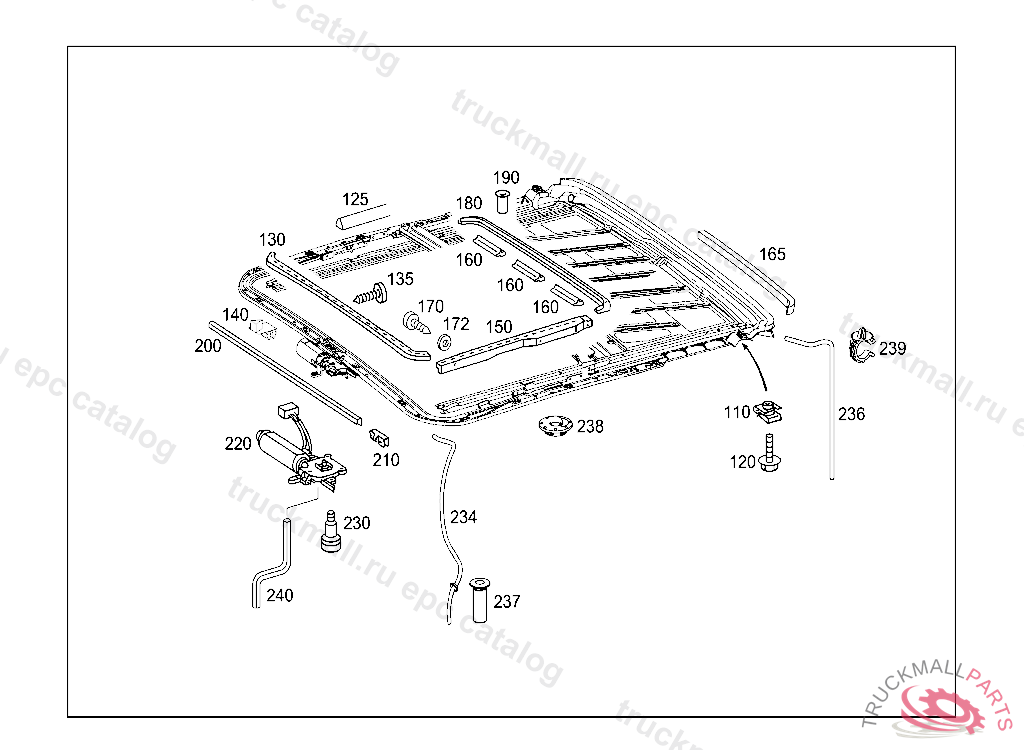

045 SLIDING/LIFTING ROOF FRAME IL. 2
Mercedes N304017006018 - Болт
E 500 / E 550 JAPAN 211.272
78 SLIDING ROOF - 045 SLIDING/LIFTING ROOF FRAME IL. 2
Поз.
Артикул
Описание
110
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
120
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
125
A0019877046
SEALING CORD , ORDER BY THE METER
130
A2117820324
RAIL FRONT
135
A2209900136
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
140
A1247820505
SPACER FRONT RAIL
140
A1247820605
SPACER RAIL
150
A2117820124
RAIL LEFT
150
A2117820224
RAIL RIGHT
160
A1157840497
PAD
165
A2117820297
PAD ON FRAME,RIGHT 25 MM
165
A2117820197
PAD ON FRAME,LEFT 25 MM
170
A2209900136
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
172
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
180
A1247820124
RAIL REAR
190
N007337003104
BLIND RIVET ATTACHMENT,RAIL
200
A2107800213
RAIL BOTTOM FRAME
210
A1409881478
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
220
A2038203142
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF
230
A2027820071
SCREW MOTOR TO FRAME
234
A2116390294
HOSE WATER DRAIN IN A-PILLAR
236
A2116390594
HOSE
237
A2117800091
INSULATION TO HOSE
238
A0009875244
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
239
A0009953114
LINE HOLDER WATER DRAIN
240
A2028990180
KEY EMERGENCY CONTROL
