Mercedes N304017008034 - Болт крепления

E 200 NGT 212.035

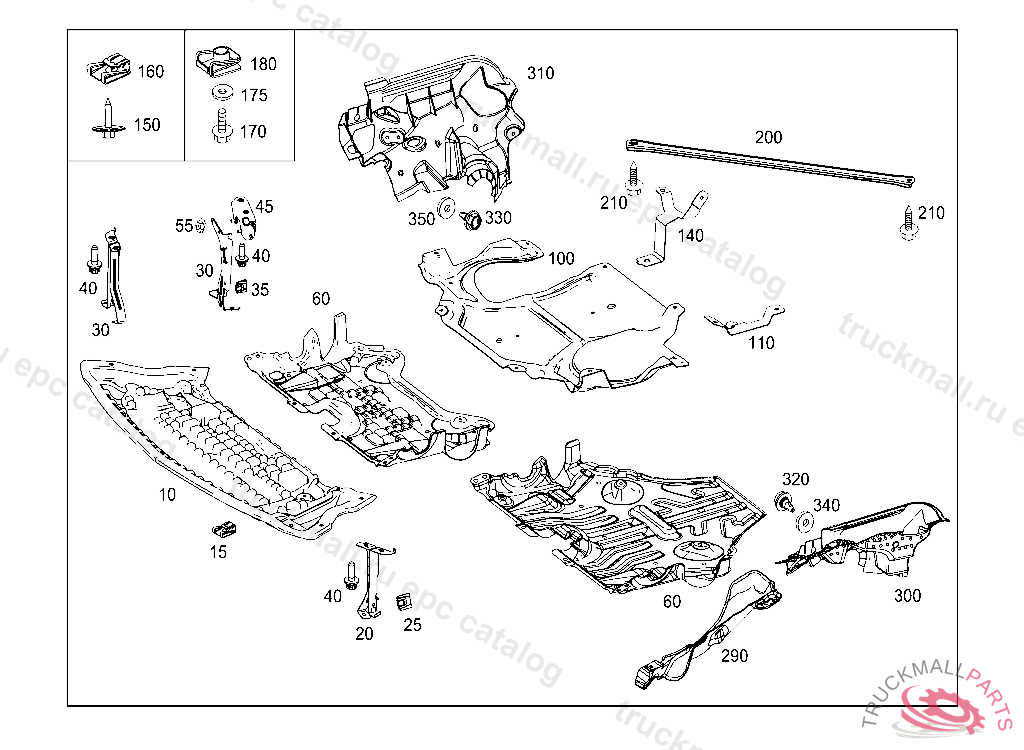

52 CHASSIS SHEET METAL / AIR INTAKE - 030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Поз.
Артикул
Описание
10
A2125202323
COVER F ENGINE COMP. BM FRONT, A 05127220120330
10
A2125240230
COVER F ENGINE COMP. BM FRONT
10
A2125205123
COVER F ENGINE COMP. BM FRONT
10
A2125203923
COVER F ENGINE COMP. BM FRONT, A 20131031
15
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
20
A2045241340
BRACKET LEFT
30
A2045241440
BRACKET RIGHT
40
N910143006002
HEXALOBULAR BOLT. SCREW
60
A2045202823
ENCAPSULATION CENTRAL, TO BE ADAPTED DURING ASSEMBLY CAUTION: DAMPING MAT MUST BE REMOVED IN GASOLINE VEHICLES
60
A2045240101
PROTECTIVE PLATE CENTRAL
60
A2125241530
COVER F ENGINE COMP. BM CENTRAL
60
A2125240601
UNDERBODY PROTECTION CENTRAL
100
A2125245130
COVER F ENGINE COMP. BM REAR
100
A2125242630
COVER F ENGINE COMP. BM REAR
110
A2125240740
BRACKET REAR LEFT
140
A2125241740
BRACKET REAR RIGHT
140
A2125240840
BRACKET REAR RIGHT
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
160
A0019949845
LOCK. CLIP-TYPE NUT
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2125240147
STRUT FRONT RIGHT
210
A0049904500
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
300
A2125241025
ENCAPSULATION CENTRAL LEFT
310
A2125241525
ENCAPSULATION CENTRAL RIGHT
320
A0009901617
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
330
A0009901617
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
