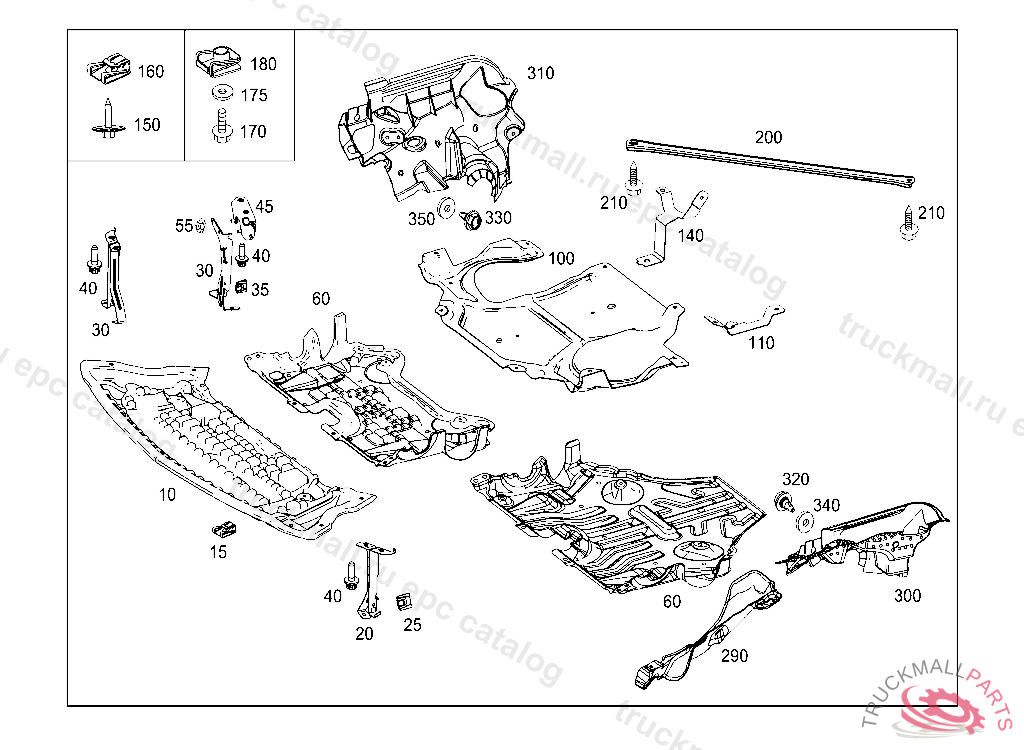

Поз.
Артикул
Описание
10
COVER F ENGINE COMP. BM FRONT, A 05127220120330
10
COVER F ENGINE COMP. BM FRONT
10
COVER F ENGINE COMP. BM FRONT
10
COVER F ENGINE COMP. BM FRONT, A 20131031
15
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
20
BRACKET LEFT
30
BRACKET RIGHT
40
HEXALOBULAR BOLT. SCREW
60
COVER F ENGINE COMP. BM CENTRAL
60
PROTECTIVE PLATE CENTRAL
60
ENCAPSULATION CENTRAL, TO BE ADAPTED DURING ASSEMBLY CAUTION: DAMPING MAT MUST BE REMOVED IN GASOLINE VEHICLES
60
UNDERBODY PROTECTION CENTRAL
100
COVER F ENGINE COMP. BM REAR
100
COVER F ENGINE COMP. BM REAR
110
BRACKET REAR LEFT
140
BRACKET REAR RIGHT
140
BRACKET REAR RIGHT
150
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
LOCK. CLIP-TYPE NUT
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
180
SPRING-THREAD NUT PROTECTIVE PLATE
200
STRUT FRONT RIGHT
210
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
300
ENCAPSULATION CENTRAL LEFT
310
ENCAPSULATION CENTRAL RIGHT
320
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
330
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
