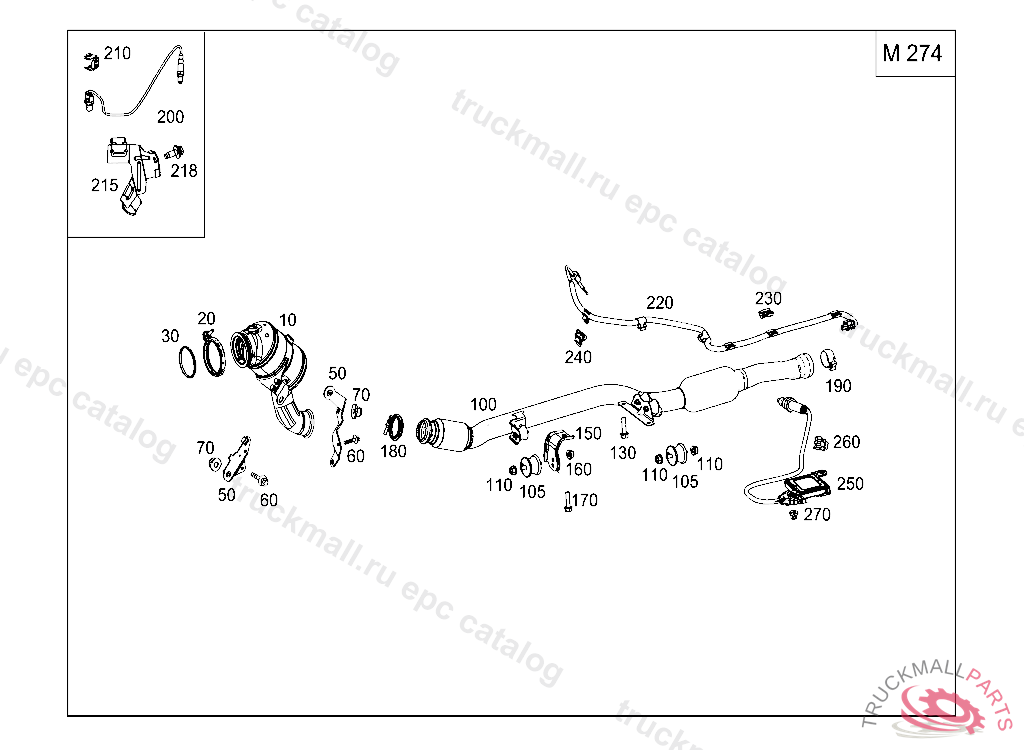

Поз.
Артикул
Описание
10
EXHAUST GAS LINE
20
PROFILE CLAMP F EXHAUST EXHAUST PIPE TO EXHAUST MANIFOLD
30
METAL-NON METAL SEAL EXHAUST PIPE TO EXHAUST MANIFOLD
50
BRACKET
60
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
70
NUT-AND-WASHER ASSEMBLY BRACKET TO EXHAUST PIPE
100
EXHAUST GAS LINE FRONT
100
EXHAUST GAS LINE FRONT
105
SUSPENSION RING AT EXHAUST PIPE
110
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
180
PROFILE CLAMP F EXHAUST FRONT EXHAUST PIPE TO REAR EXHAUST PIPE, J 20130121 V 00000020130404
190
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE 81,5 MM
200
LAMBDA PROBE CONTROL PROBE IN FRONT OF CATALYST, B 20140509
200
LAMBDA PROBE DIAGNOSIS PROBE BEHIND CATALYST
210
SPRING CLAMP FOR SENSOR CONNECTOR 28X24 MM
215
BRACKET OXYGEN SENSOR CABLE TO DAMPER FILTER
218
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
220
TEMPERATURE SENSOR
230
CLIP OXYGEN SENSOR
240
CLAMP LINE MOUNTING
