Поз.
Артикул
Описание
10

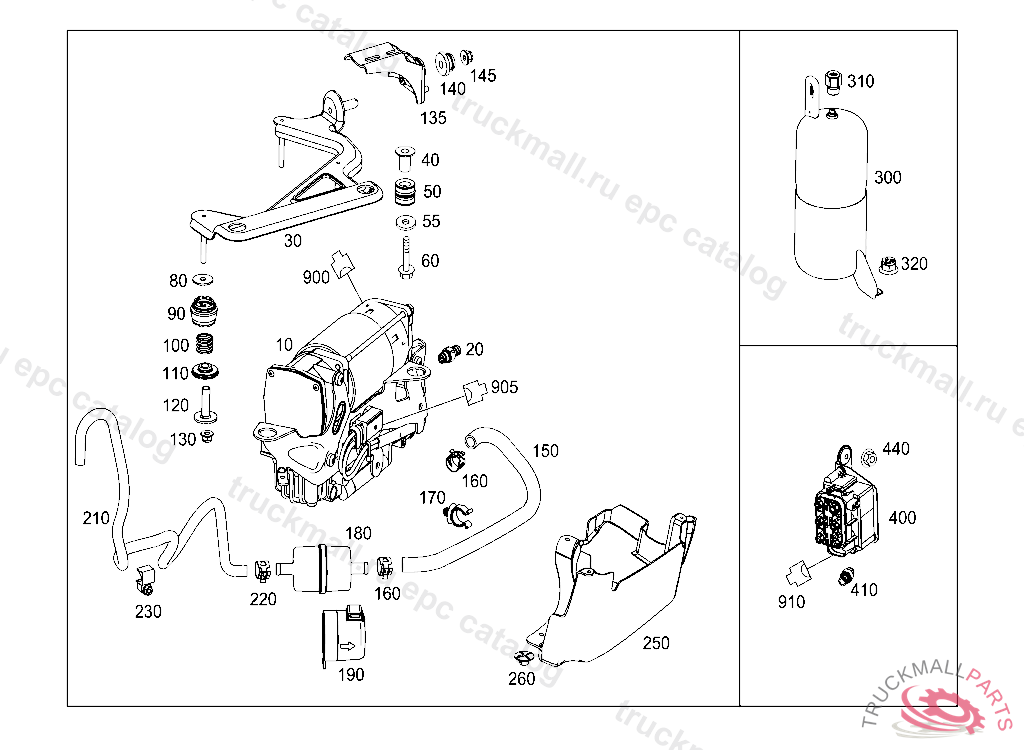

COMPRESSOR UNIT PNEUMATIC SUSPENSION
10
COMPRESSOR UNIT PNEUMATIC SUSPENSION, Replaced By: A2123200404
20
CONNECTION PIPE SOCKET PRESSURE LINE TO COMPRESSOR
30
BRACKET COMPRESSOR
40
BUSHING BRACKET TO SIDE MEMBER
50
RUBBER MOUNT BRACKET TO SIDE MEMBER
55
WASHER PUMP TO CONSOLE
60
SCREW SUPPORT TO FENDER
80
WASHER
90
RUBBER BUMPER COMPRESSOR TO BRACKET
100
SPRING COMPRESSOR TO BRACKET
110
RUBBER BUMPER COMPRESSOR TO BRACKET
120
SPACER TUBE COMPRESSOR TO BRACKET
130
NUT BRACKET TO BODY SHELL M6
135
BRACKET COMPRESSOR TO REAR CENTER SECTION
140
GROMMET COMPRESSOR TO BRACKET
145
NUT BRACKET TO BODY SHELL M6
150
SUCTION HOSE FROM COMPRESSOR TO AIR FILTER
160
SPRING HOSE CLAMP VENT LINE TO ENGINE OR RADIATOR 14.7-16.5 MM/ 12 MM, A 01842020000330
170
LINE HOLDER HOSE TO COMPRESSOR
180
AIR FILTER
190
RETAINING COLLAR
210
SUCTION HOSE AIR FILTER TO WHEEL ARCH
220
SPRING HOSE CLAMP VENT LINE TO ENGINE OR RADIATOR 14.7-16.5 MM/ 12 MM, A 01842020000330
230
CLAMP FUEL LINES ON FLOOR UNDER REAR SEAT
250
COVER COMPRESSOR
260
PLASTIC NUT. NUT
300
PRESSURE ACCUMULATOR
310
CONNECTOR PRESSURE LINE TO PRESSURE RESERVOIR
320
NUT BRACKET TO BODY SHELL M6
400
VALVE UNIT TO REAR END CENTER ASSEMBLY
410
CONNECTION PIPE SOCKET PRESSURE LINE TO COMPRESSOR
410
CONNECTOR DELIVERY LINE
440
NUT BRACKET TO BODY SHELL M6
900
PLUG HOUSING HORN AT RIGHT 2 PIN SLK2.8,H2/1
905
PIN BUSHING HOUSING ENGINE COMPARTMENT/ENGINE CONNECTOR 2-PIN SLK2.8,X26/31
910
PLUG VALVE UNIT SELF-LEVELLING DEVICE 10-PIN MT2,Y36/6*1
