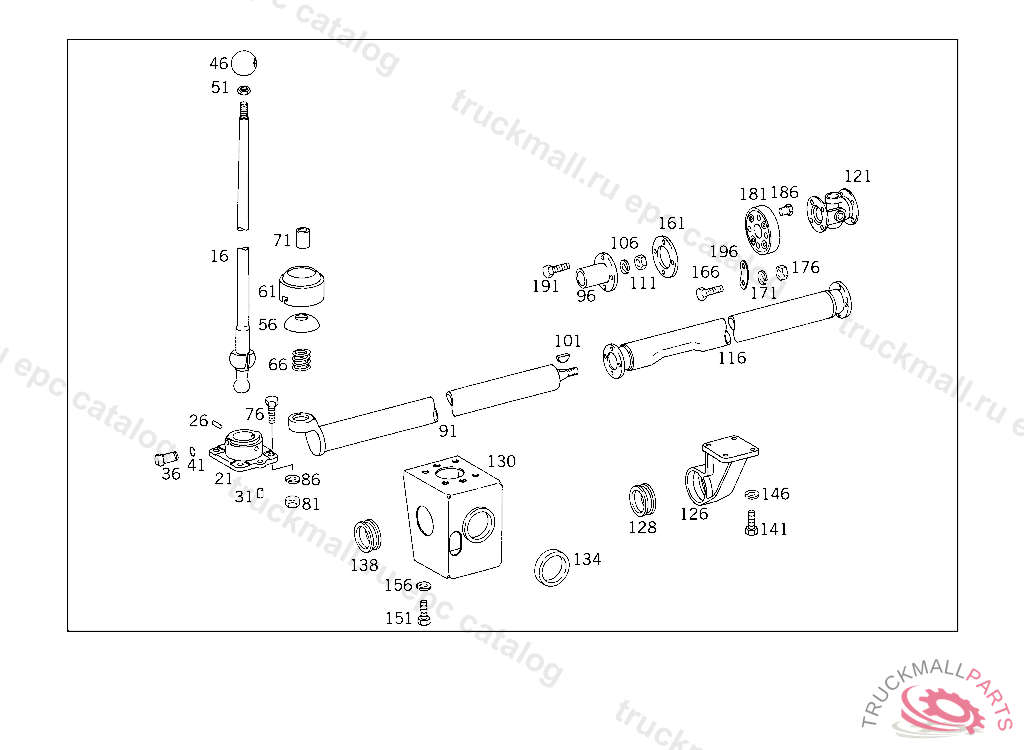

Поз.
Артикул
Описание
16
SHIFT LEVER
21
TRANSMISSION CASE COVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
26
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
31
CYLINDER PIN. CYLINDRICAL PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
36
SLIDING BLOCK
36
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
41
SNAP RING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
46
HANDLE
46
HANDLE (GEARSHIFT LEVER KNOB)
46
HANDLE
51
NUT SHIFT LEVER
56
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
61
COVER SHIFTING DOME TO TRANSMISSION CASE,TOP
61
COVER
66
SPRING SHIFT CASE,BOTTOM
71
HOSE
76
SCREW COMPRESSED AIR ELBOW
81
NUT LEVER TO SHIFTING SHAFT
86
LOCK WASHER RAIL TO BATTERY SUPPORT
91
SHIFTING ROD FRONT
96
CONNECTOR FLANGE TO SHIFTING TUBE
101
WOODRUFF KEY FLANGE TO SHIFTING TUBE
106
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
111
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
121
JOINT REAR SHIFTING ROD
121
JOINT REAR SHIFTING ROD
126
SHIFT CASE SHIFTING TUBE
128
BUSHING
130
SHIFT CASE
134
GUIDE SLEEVE
138
BUSHING
141
SCREW LINES TO BRACKET
146
LOCK WASHER RAIL TO BATTERY SUPPORT
151
SCREW , Replaced By: N304017010040
156
LOCK WASHER , Replaced By: N912004010102
161
SPACER WASHER2 MM
166
SCREW SHIFTING ROD TO TRANSMISSION
171
LOCK WASHER RAIL TO BATTERY SUPPORT
176
NUT LEVER TO SHIFTING SHAFT
181
CONNECTOR
186
BUSHING
191
SCREW SHIFTING TUBE TO TRANSMISSION
196
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
999
SPACER WASHER5 MM
999
SPACER WASHER3 MM
999
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
SCREW APPARATUS SUPPORT TO FRAME M 14X45
