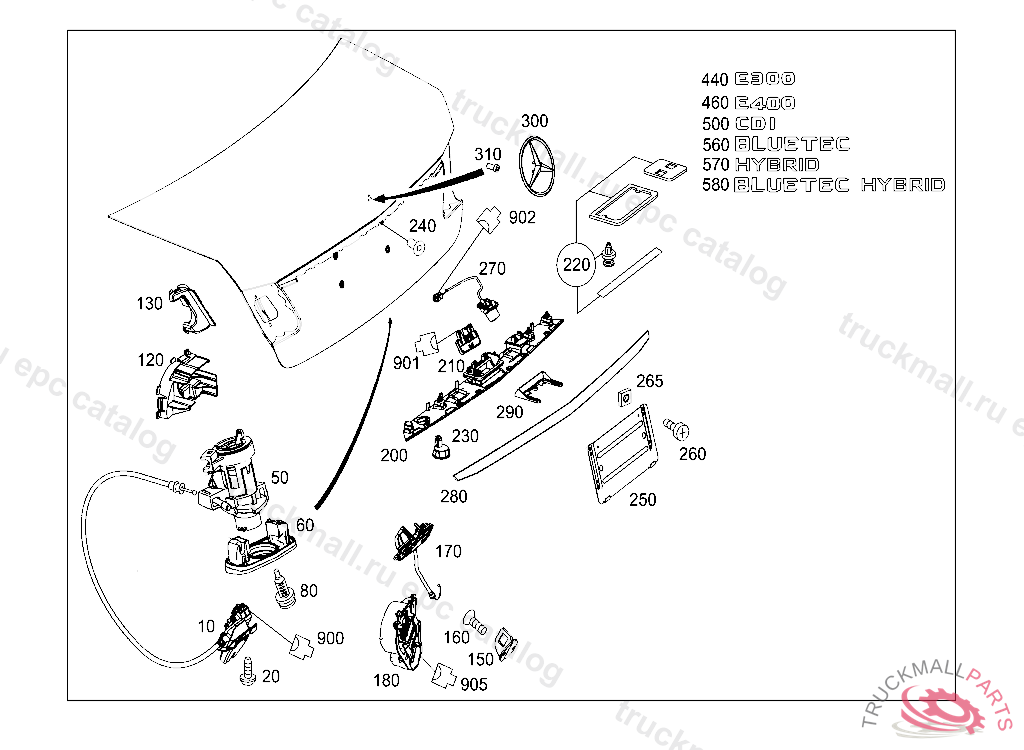

Поз.
Артикул
Описание
10
LOCK
10
LOCK
20
BOLT LOCK TO REAR PANEL DOOR M6X17,2
50
UNLOCKING MECHANICAL FOR EMERGENCY ACTUATION
50
UNLOCKING MECHANICAL FOR EMERGENCY ACTUATION
60
BRACKET MECHANICAL FOR EMERGENCY ACTUATION
80
TUMBLER , THEFT-RELEVANT PART
120
COVER TO MECHANICAL RELEASE
130
COVER AT LEFT INNER TRUNK LID
150
STRIKER
160
BOLT LOCK TO REAR PANEL DOOR M6X17,2
170
CATCH
180
DRIVE POWER CLOSING SYSTEM
200
HANDLE MOLDING , A 20120806 L 02965920120731 V 00224520120731
200
HANDLE MOLDING , A 20120806 L 02965820120731 V 00224420120731
200
MOULDING TYPE HANDLE , A 20120806 L 02965820120731 V 00224420120731
200
HANDLE MOLDING
200
HANDLE MOLDING , L 09243920121123
210
PUSH-BUTTON SWITCH MOULDING TYPE HANDLE, J 53092220070910808
220
RS HANDLE MOLDING MOUNTING MATERIAL
230
BUZZER IN REAR-END DOOR
240
NUT LICENSE-PLATE MOUNTING
250
FASTENING PLATE AT REAR PANEL DOOR
250
MOUNTING PLATE DESIGNATION
250
FASTENING PLATE DESIGNATION
260
HEXALOBULAR BOLT PLATE TO REAR LID M5X16
265
NUT ATTACHMENT PLATE
270
CONSOLE CAMERA WITH BRACKET, A 07056320120910803
270
CAMERA REVERSING CAMERA IN HANDLE STRIP
270
CONSOLE CAMERA WITH BRACKET
270
CONSOLE (CAMERA) WITH BRACKET, A 20130911 L 03841220130831 V 00264620130831, Replaced By: A0008202982
270
CONSOLE CAMERA WITH BRACKET, A 07056320120910803 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 10831920130911, Replaced By: A0008201203
280
MOULDING MOULDING TYPE HANDLE, A 20120806 L 02965820120731 V 00224420120731
280
MOULDING MOULDING TYPE HANDLE, L 09243920121120
290
MOUNTING BRACKET MOULDING TYPE HANDLE
290
CLAMP MOULDING TYPE HANDLE, Replaced By: A0007410032
300
MERCEDES STAR
310
GROMMET MERCEDES STAR TO REAR LID
460
MODEL PLATE ON REAR LID E400
460
TYPE DESIGNATION ON REAR LID E400
570
TYPE DESIGNATION ON REAR LID HYBRID
570
MODEL PLATE ON REAR LID HYBRID
900
CLUTCH SEPARATION POINT, TEMPERATURE SENSOR 4-PIN MQS,X15/12
901
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
902
CLUTCH SEPARATION POINT, TEMPERATURE SENSOR 4-PIN MQS,X15/12
902
CLUTCH RIGHT REAR SEAT BACKREST LOCK SWITCH 3-PIN MQS,S54/8
905
PLUG HOUSING POWER CLOSING SYSTEM 2-PIN JPT,M14/31
