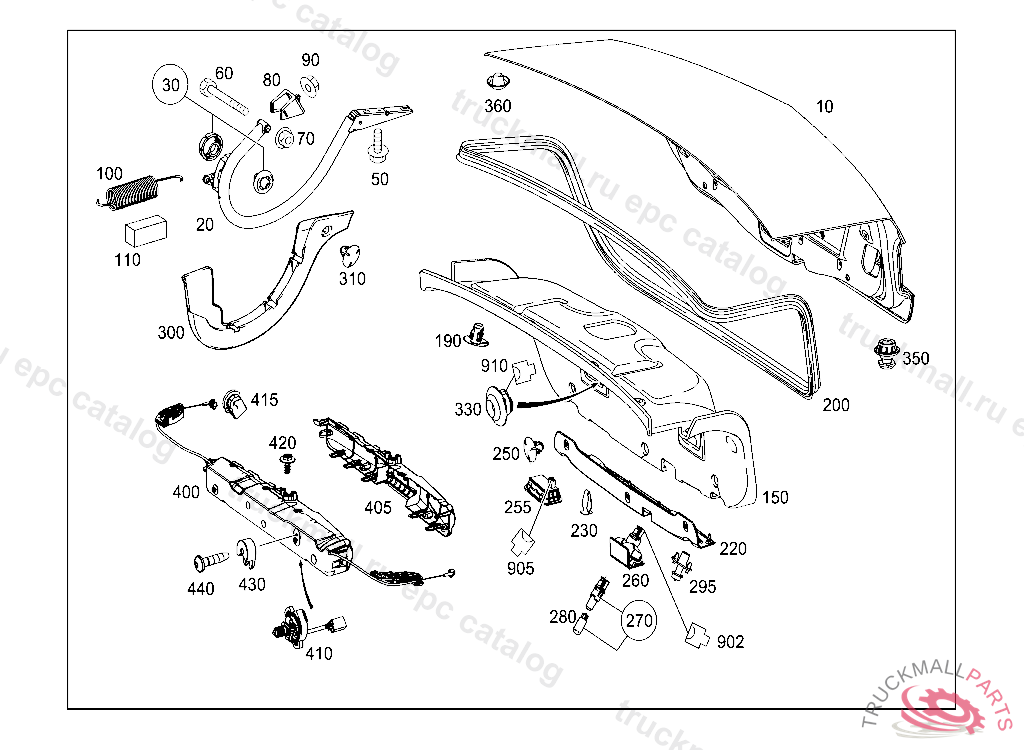

Поз.
Артикул
Описание
10
TRUNK LID , A 20120806 L 02965920120731 V 00224520120731
20
HINGE LEVER LEFT, L 00466320101008
20
HINGE LEVER RIGHT, A 26451220100610 L 00946320100630 V 00084720100630
30
INTERMEDIATE LAYER PARTS KIT
50
SCREW INTAKE SHELL TO BRACKET,A 213305
60
SCREW HINGE LEVER TO MOUNTING
70
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
80
RETAINER WEDGE TRUNK LID, RIGHT
90
NUT , Replaced By: N913023006001
100
SPRING
110
INSULATION TENSION SPRING
150
TRIM PANEL TRUNK LID , A 36404720101104 9F08QFT212A0660 SINGLE TONE BLACK
150
TRIM PANEL TRUNK LID , L 00424720100921 9F08QFT212A0660 SINGLE TONE BLACK
190
PLUG-IN MOUNTING LEFT PANELLING TO BODY, F 50004620100331
200
WEATHERSTRIP REAR LID
220
HANDLE , 9051QFT212A0663 BLACK
220
HANDLE , 9051QFT212A0663 BLACK
230
CLIP PANELLING TO DOOR
250
PLUG-IN MOUNTING LEFT PANELLING TO BODY, F 50004620100331
255
SWITCH REMOTE TRUNK LOCKING
255
SWITCH REMOTE TRUNK LOCKING WITH KEYLESS GO
260
INTERIOR LAMP IN REAR-END DOOR
270
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
280
BULBTO A 6955407048/7148,3825400311/0411
295
STOP MOULDING TYPE HANDLE
300
CABLE DUCT REAR LID HINGE,RIGHT, 9051QFT212A0665 BLACK
300
CABLE DUCT REAR LID HINGE,LEFT, 9051QFT212A0665 BLACK
310
PLUG-IN MOUNTING LEFT PANELLING TO BODY, F 50004620100331
330
SWITCH LUGGAGE COMPARTMENT INTERIOR CONTROL, A 23717420010831 F 16659520010831
350
STOP TO TRUNK LID TOP SIDE
360
STOP PLUG BATTERY CASE 6.5 MM
400
DRIVE UNIT TRUNK LID DRIVE TRUNK LID
405
COVER DRIVE TRUNK LID
410
SENSOR DRIVE TRUNK LID
415
BEARING FORMED PART NATURAL-COLORED, A 44398620110331 L 01796520110331 V 00132720110331
420
BOLT MOUNTING, DRIVE
430
BRACKET REMOTE TRUNK CLOSING ADAPTER
440
HEXALOBULAR BOLT REMOTE TRUNK CLOSING ADAPTER
902
CLUTCH ILLUMINATION AIR NOZZLE, RIGHT 2-PIN MQS,E10/3
905
CLUTCH TRUNK LID CLOSING BUTTON 3-PIN MQS,S62/36
910
CLUTCH6-PIN MQS
