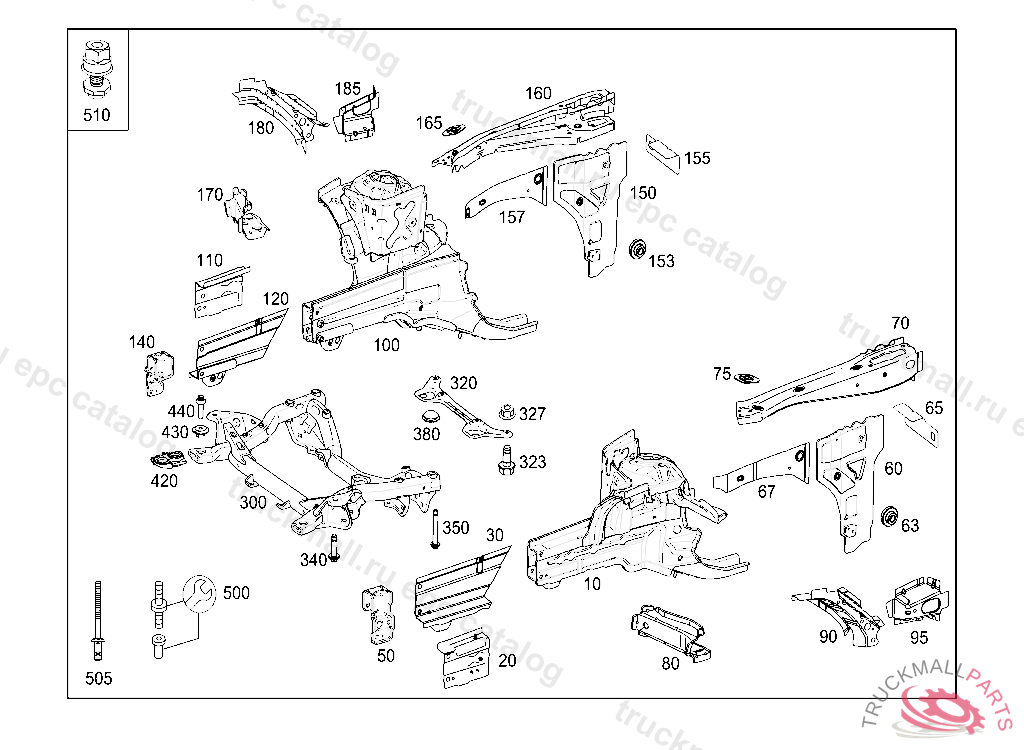

Поз.
Артикул
Описание
10
WHEEL HOUSE LEFT
10
WHEELHOUSE LEFT, Replaced By: A2126200550
10
WHEEL HOUSE LEFT, Replaced By: A2126203300
20
SUPPORT LEFT
30
SIDE MEMBER LEFT
50
BRACKET LEFT
60
LONGITUDINAL MEMBER LEFT
60
LONGITUDINAL MEMBER LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 50904920110801, Replaced By: A2126200187
63
RIVET NUT
65
BRACKET LEFT REAR FENDER
67
LONGITUDINAL MEMBER LEFT
70
SUPPORT TOP LEFT
75
PLATE ON CARRIER AT TOP LEFT
80
CROSS MEMBER LEFT, PEDAL FLOOR PANEL, A 20130629
80
SUPPORT LEFT, PEDAL FLOOR PANEL, A 20130629
90
STRUT LEFT
95
REINFORCEMENT STRUT TO LEFT SIDE PANEL
100
WHEELHOUSE RIGHT, Replaced By: A2126200650
100
WHEEL HOUSE RIGHT
100
WHEEL HOUSE RIGHT
110
SUPPORT RIGHT
120
SIDE MEMBER RIGHT
140
BRACKET RIGHT
150
LONGITUDINAL MEMBER RIGHT
150
LONGITUDINAL MEMBER RIGHT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 50904920110801, Replaced By: A2126200287
153
RIVET NUT
155
BRACKET RIGHT REAR FENDER
157
LONGITUDINAL MEMBER RIGHT
160
SUPPORT TOP RIGHT
165
PLATE ON CARRIER AT TOP LEFT
170
SUPPORT RIGHT, PEDAL FLOOR PANEL
180
STRUT RIGHT
185
REINFORCEMENT STRUT TO RIGHT SIDE PANEL
300
INTEGRAL CARRIER
300
INTEGRAL CARRIER
300
SUPPORT INTEGRAL SUPPORT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 14060120091112 L 00409820091130 V 00046820091130, Replaced By: A2126280557
300
INTEGRAL CARRIER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 39999920100531 L 00861620100531 V 00072620100531, Replaced By: A2126280657
300
INTEGRAL CARRIER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 39999920100609801, Replaced By: A2126281000
300
INTEGRAL CARRIER
320
MOUNTING PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
320
PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
323
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
323
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
327
NUT BRACKET TO SIDE MEMBER M12X1.5
340
BOLT FRONT FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX50
350
BOLT REAR FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX100
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
505
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
510
WELD STUD GROUND CONNECTION M8
510
WELD STUD GROUND CONNECTION M6
