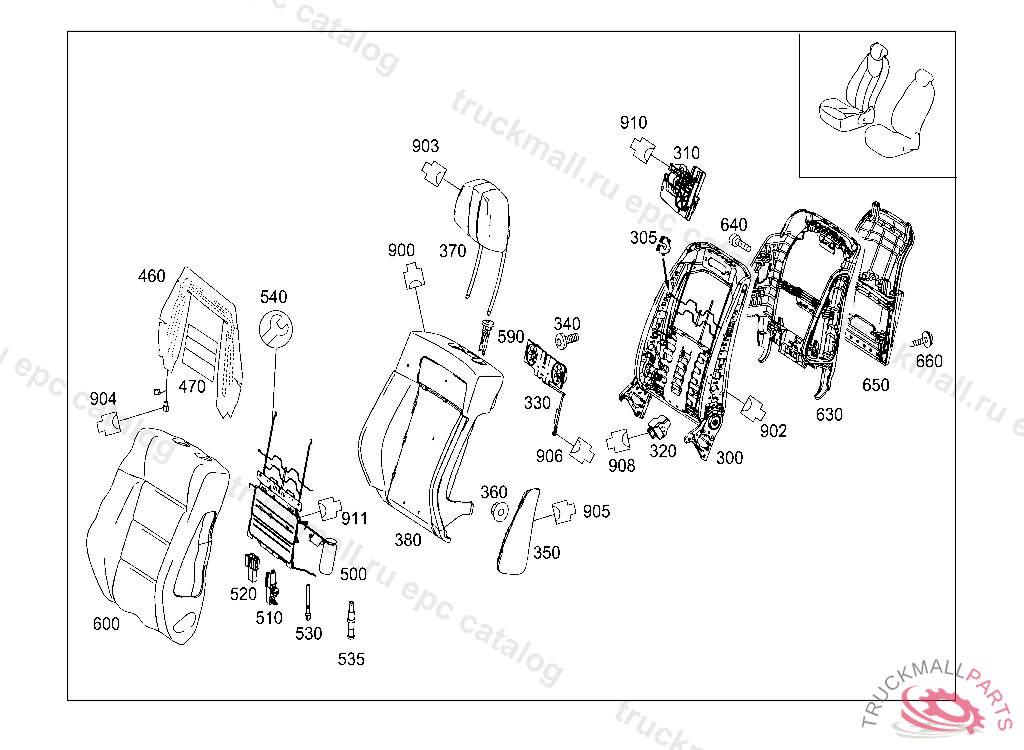

Поз.
Артикул
Описание
300
BACKREST FRAME RIGHT
300
BACKREST FRAME ASSEMBLY RIGHT
305
HOOK TO BACKREST FRAME
310
ADJUSTER HEAD RESTRAINT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
320
CONTROL UNIT SEAT VENTILATION
330
FAN BACKREST VENTILATION
330
AXIAL FAN, ELECTRICAL
340
HEXALOBULAR BOLT PLUG SOCKET TO BRACKET M4X10
350
SIDEBAG
360
NUT BRACKET TO BODY SHELL M6
370
HEAD RESTRAINT "NAPPA" LEATHER
370
HEADREST "NAPPA" LEATHER
370
HEADREST LEATHER
370
HEADREST LEATHER
370
HEADREST ARTICO LEATHER
370
HEADREST LEATHER
370
HEAD RESTRAINT LEATHER
370
HEADREST "NAPPA" LEATHER
370
HEADREST ARTICO LEATHER
370
HEADREST LEATHER
370
HEADREST IMITATION LEATHER
370
HEADREST LEATHER
380
REST
380
REST
460
SEAT HEATING
470
SEAT HEATING
470
SEAT HEATING
470
SEAT HEATING
470
SEAT HEATING
470
SEAT HEATING
500
ADJUSTABLE INSERT (LUMBAR SUPPORT (FFO))
500
SEAT ADAPTER (LUMBAR SUPPORT (FFO)), Replaced By: A0009105102
510
BRACKET
520
HOUSING TAXI OR PREINSTALLATION FOR RENTAL CAR 2-PIN SLK2.8
530
RS PLUG CONNECTION LINE TO VALVE BLOCK
535
PLUG CONNECTION
540
PARTS BOX (LUMBAR SUPPORT (FFO))
590
GUIDE FOR HEADREST WITHOUT LEFT RELEASE
590
GUIDE FOR HEADREST WITHOUT RIGHT RELEASE
590
GUIDE FOR HEADREST WITH RELEASE, LEFT
600
COVER "NAPPA" LEATHER
600
COVER ARTICO LEATHER
600
COVER LEATHER
600
COVER LEATHER
600
COVER FRONT SEAT BACKREST "NAPPA" LEATHER
600
COVER FRONT SEAT BACKREST LEATHER
600
COVER FRONT SEAT BACKREST LEATHER
600
COVER LEATHER
600
COVER FRONT SEAT BACKREST ARTICO LEATHER
630
BACKREST SHELL RIGHT
640
BOLT FRONT PASSENGER AIRBAG TO INSTRUMENTPANEL M5X16
650
COVER BACKREST FRAME
650
COVER BACKREST FRAME
650
COVER BACKREST FRAME
650
COVER BACKREST FRAME, A 27714420090130 L 02532720090131 V 00105120090131 F 33263820090303 L 10000020090901
660
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
900
PLUG HOUSING VICS UND ELECTRONIC TOLL COLLECTION POWER SUPPLY CONNECTOR 6-PIN MQS,X137/1
902
PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
902
CLUTCH PLUG CONNECTION TRAILER PLUG SOCKET 4-PIN SLK2.8,X52
903
HOUSING CRASH ACTIVE HEAD RESTRAINT 2-PIN MQS,Y24/12, Y24/13
904
HOUSING COCKPIT MOTOR PLUG-IN CONNECTOR 2-PIN SLK2.8,X18/28
905
REP.SET CONTACT WINDOWBAG SQUIB, REAR 2-PIN 0.5MM2,R12/22 R12/23
906
SOCKET HOUSING RIGHT REAR OUTER SURROUND SPEAKER 2-PIN MQS,H4/57
908
PLUG HOUSING. PIN BUSHING HOUSING SEAT ADJUSTMENT SWITCH, A 394035 X 004165, J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 / X 004166 WITH CODE 807
910
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
911
PLUG HOUSING DOOR CONTROL MODULE, LEFT 7-PIN MQS, MCP2.8
911
PIN BUSHING HOUSING FROM BATTERY TO CONTACTOR
